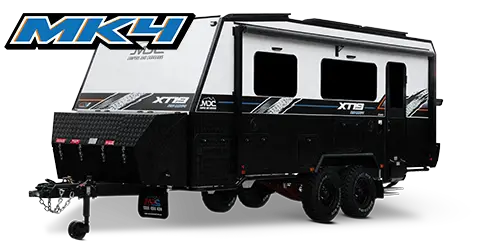

XT19 RD MK4
19ft Couples tandem axle caravan
From $119,990.00^
$450 per week*
$450 per week*
Available for immediate delivery
| QLD | Pre-Order Now^ |
| NSW | Pre-Order Now^ |
| VIC | Pre-Order Now^ |
| SA | Pre-Order Now^ |
| WA | Pre-Order Now^ |
Built for longer adventures

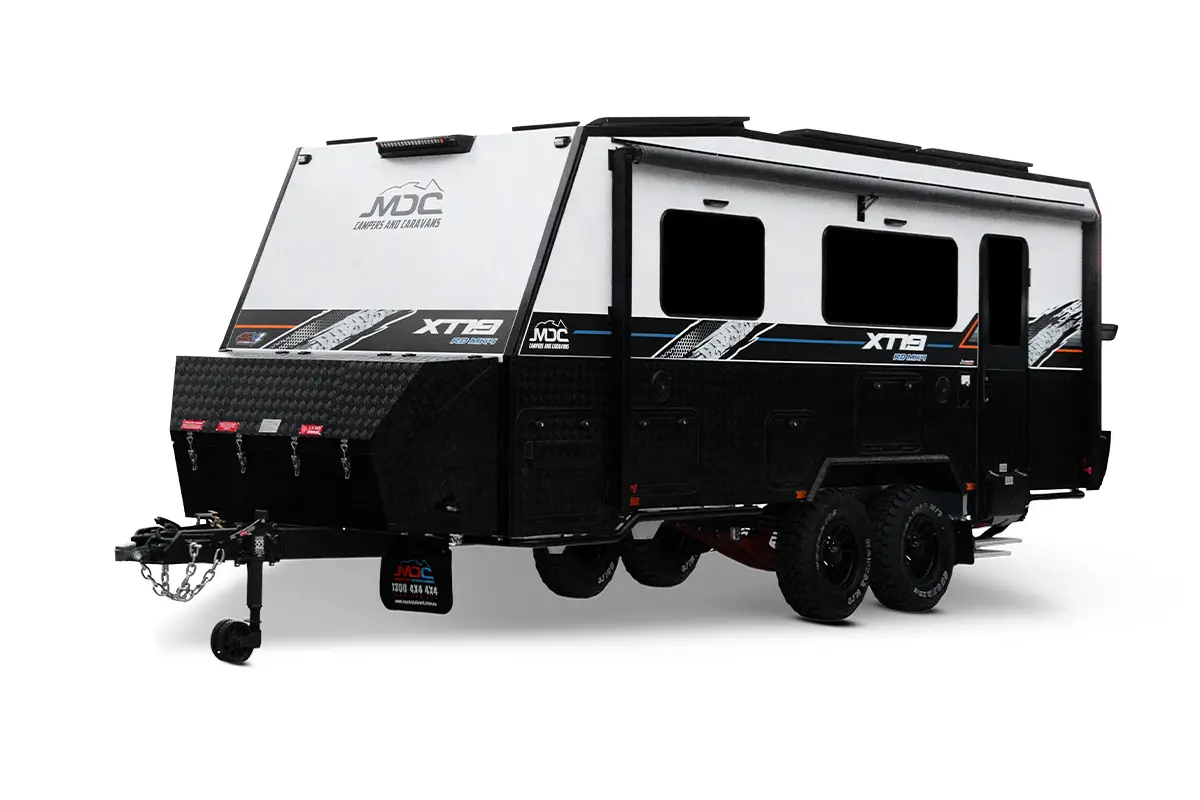

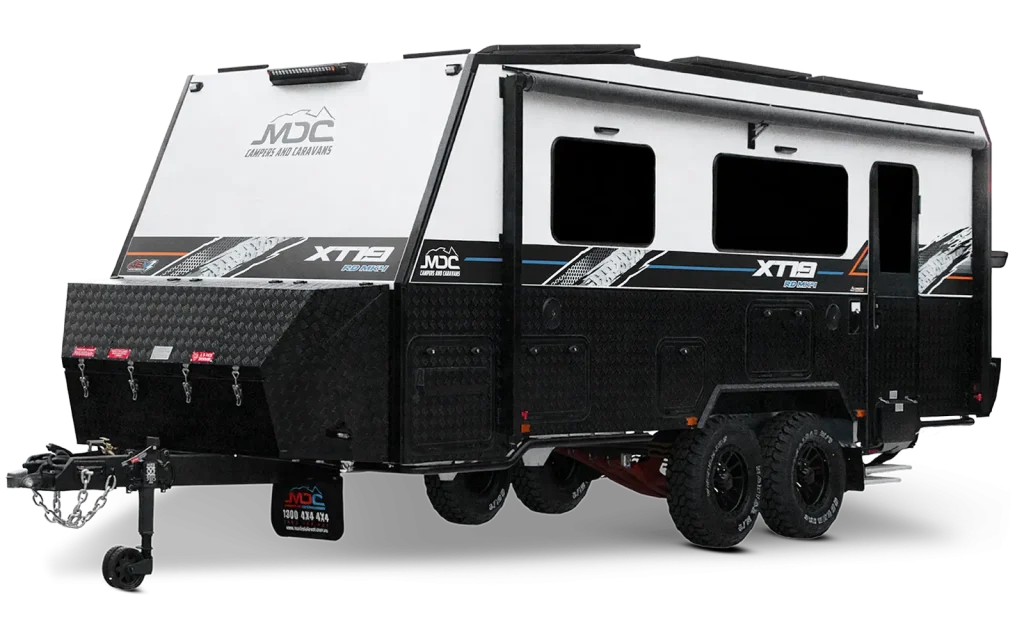

The XT19 RD MK4 Off-road Caravan is a 19ft couples tandem axle caravan designed for comfortable touring with a practical rear door entry layout and serious off-grid capability. Featuring a queen size island bed, café dinette, separate internal ensuite, 221L compressor fridge, 48V Projecta lithium power and 4000W inverter capability, it gives couples a spacious off-road caravan built for longer adventures.
TOP FEATURES
Special Deals
Offers are valid only for specific models while stock lasts. The prices shown below apply exclusively to the listed showrooms.
48V Off-Grid Platform
Over $27,000 of Projecta 48V power technology, standard.

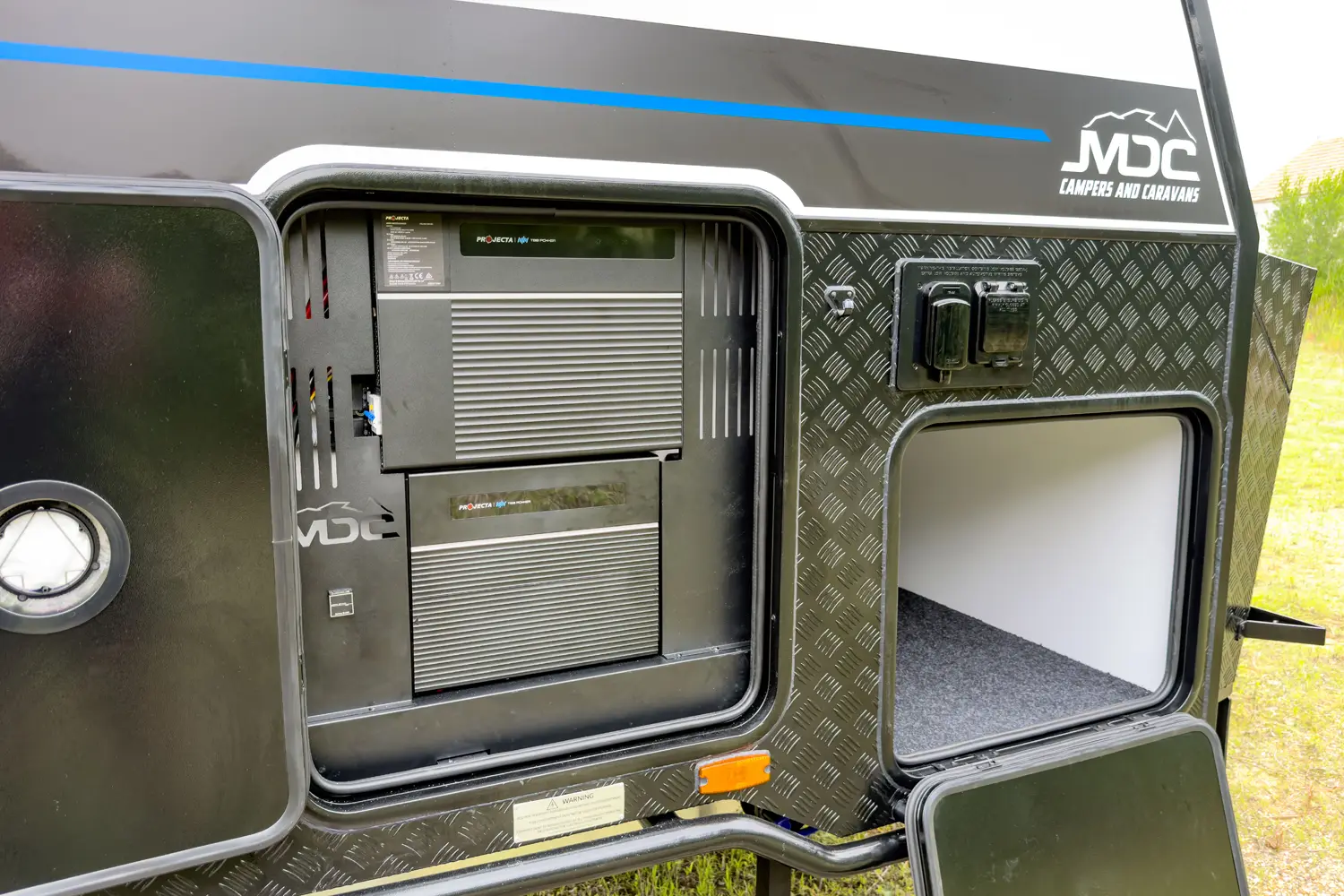

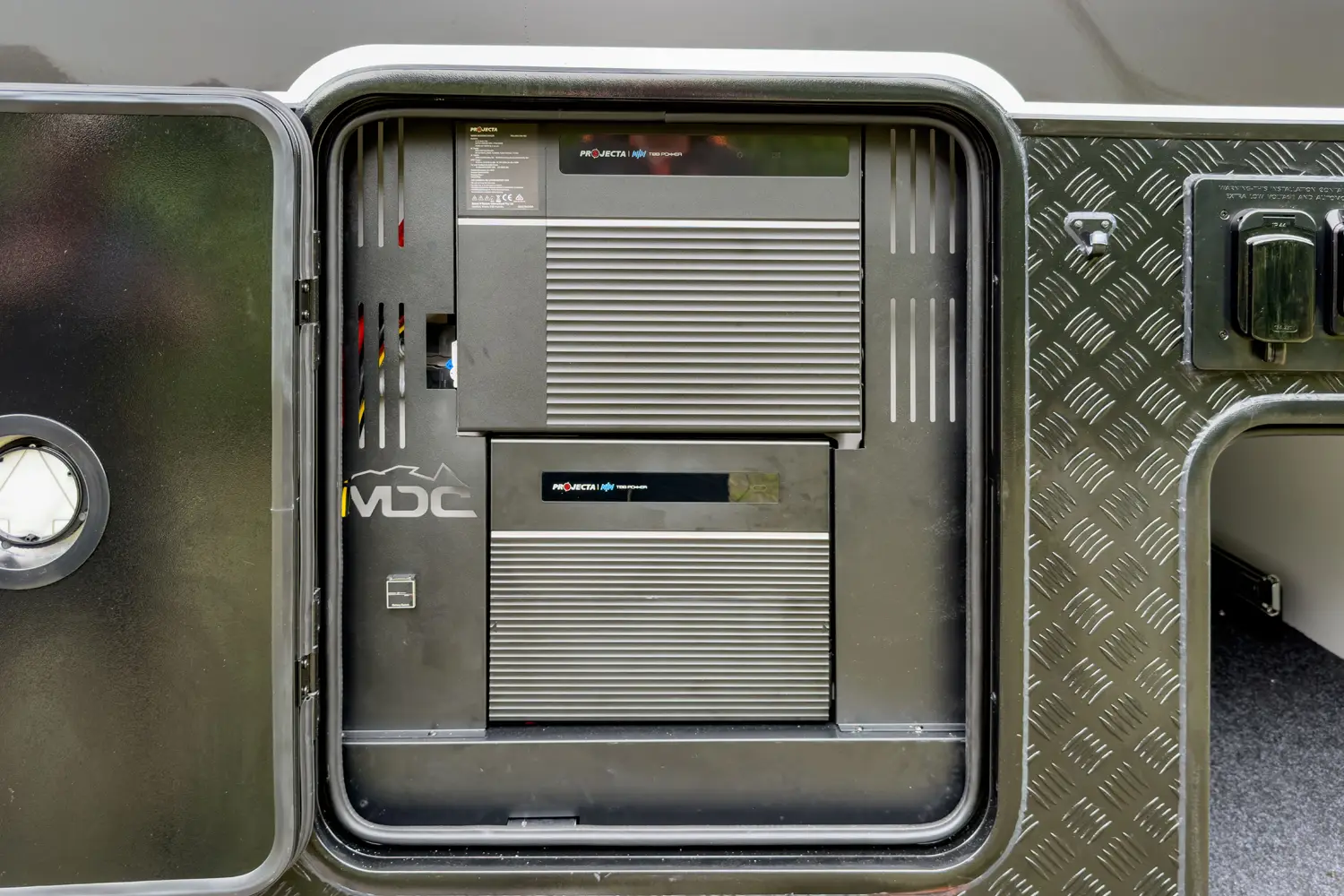

The XT MK4 range is built around a fully integrated Projecta Intelli-Grid 48V electrical platform, not an upgrade pack, not a single flagship feature, but the architecture every model in the range is designed around. With a 48V 210Ah lithium battery bank, 4000W inverter/charger, high-output solar charging and a 10-inch colour touchscreen, the XT MK4 range gives you the usable power to run the comforts that matter off-grid, including 48V air conditioning, induction cooking and built-in air frying.210Ah
48V battery bank (equivalent to 840Ah at 12V)
30A
MPPT solar controller (equivalent to 120A at 12V)
48V
Dometic FreshJet 7 Series / 2500W air conditioner
All-in-one
Inverter, AC charger, DC-DC charger and Solar Controller
♦ Run the 48V Dometic FreshJet air conditioner off-grid without compromise
♦ Up to 3 portable solar inlet ports for expandable charging capacity
♦ Integrated Projecta levelling sensor and tyre pressure monitoring
♦ Up to 3 portable solar inlet ports for expandable charging capacity
♦ Integrated Projecta levelling sensor and tyre pressure monitoring
♦ Power the induction cooktop and NCE air fry microwave simultaneously
♦ 18-channel 12V output module for all auxiliary loads
♦ Recharge from shore power at 70A (equiv. 280A at 12V) for fast turnaround
♦ 18-channel 12V output module for all auxiliary loads
♦ Recharge from shore power at 70A (equiv. 280A at 12V) for fast turnaround
DIMENSIONS & WEIGHT
TOWBALL WEIGHT
Approx. 210kg
ATM
3500kg
TARE WEIGHT
Approx. 2960kg
XT19 RD MK4 FEATURES

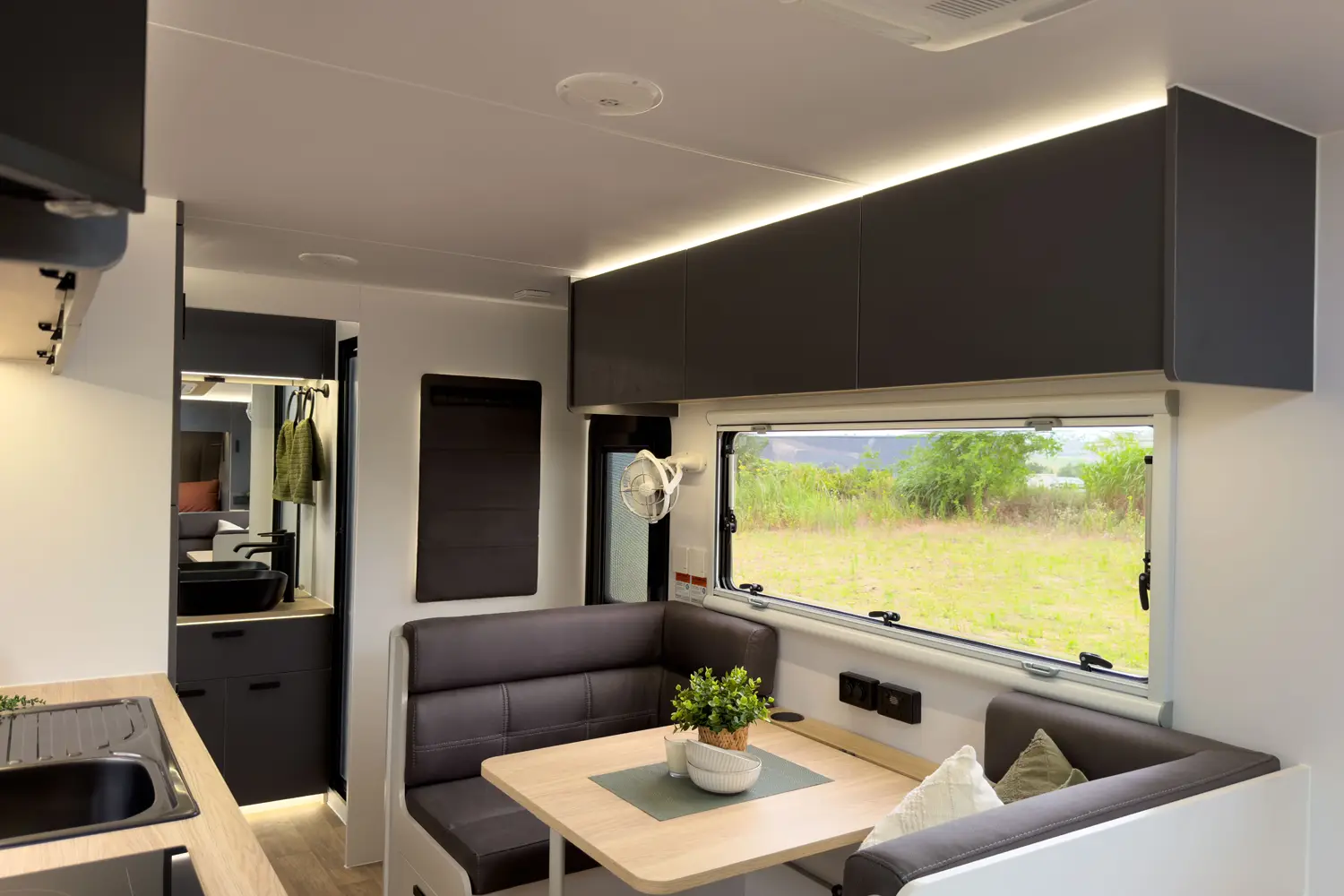

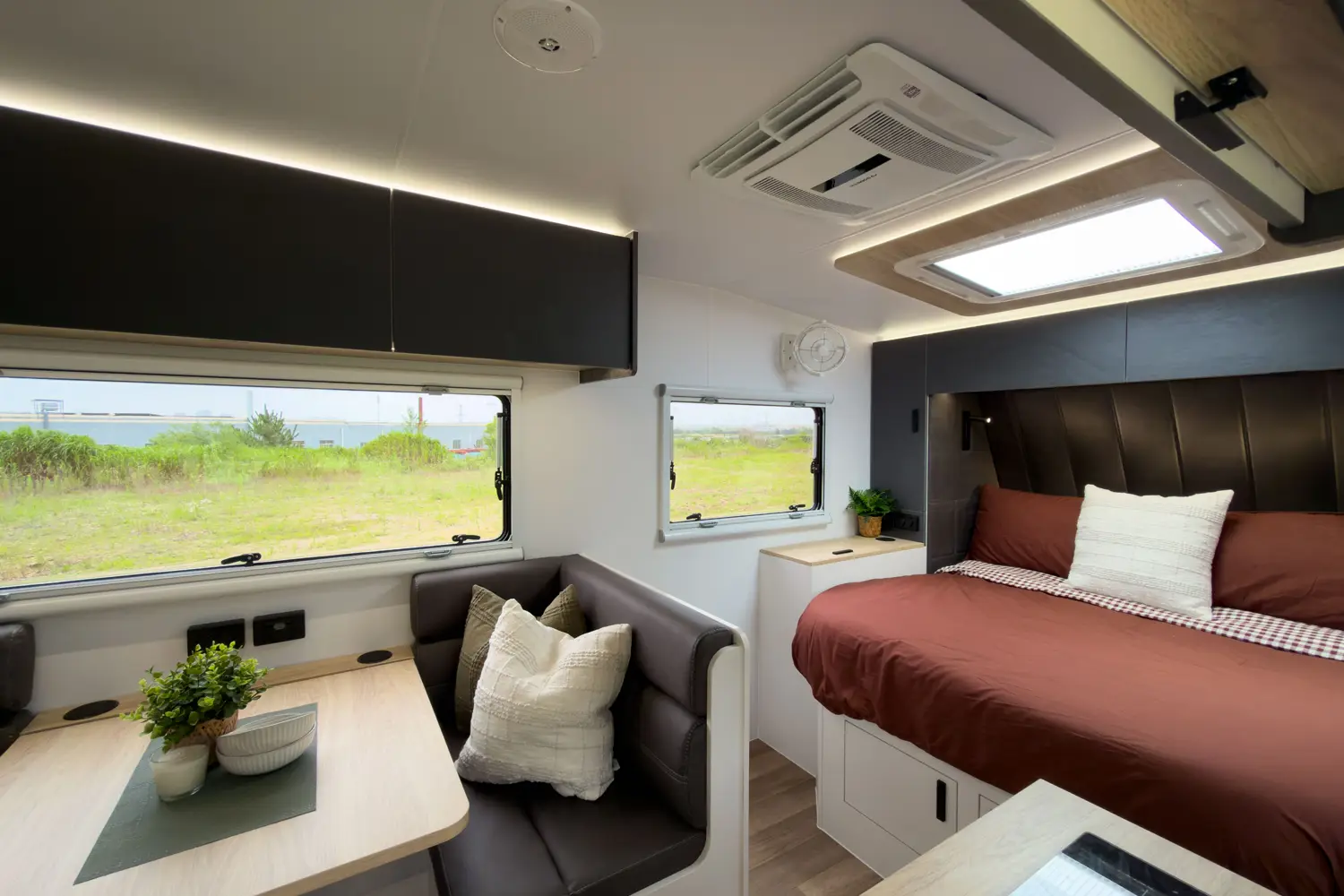

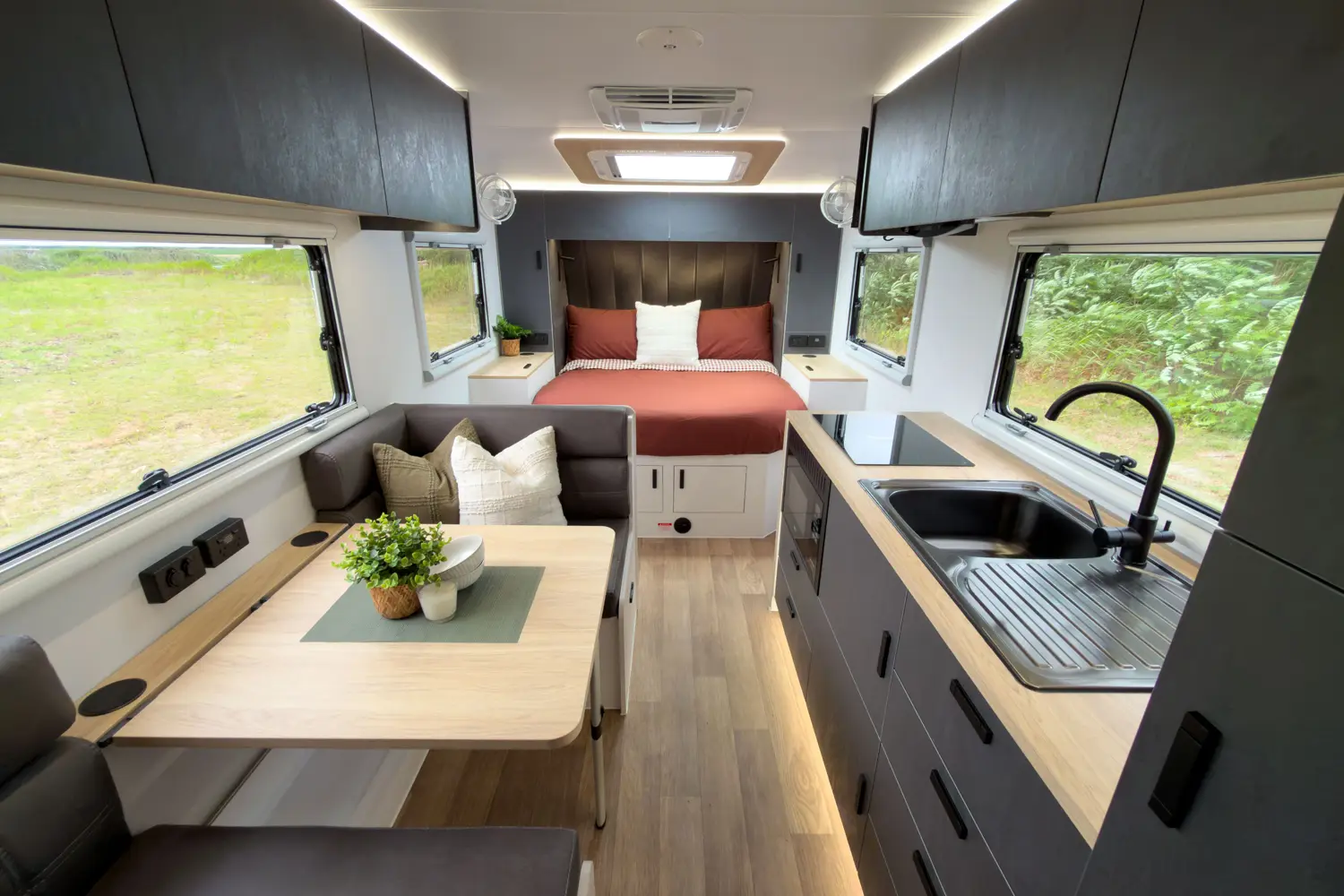

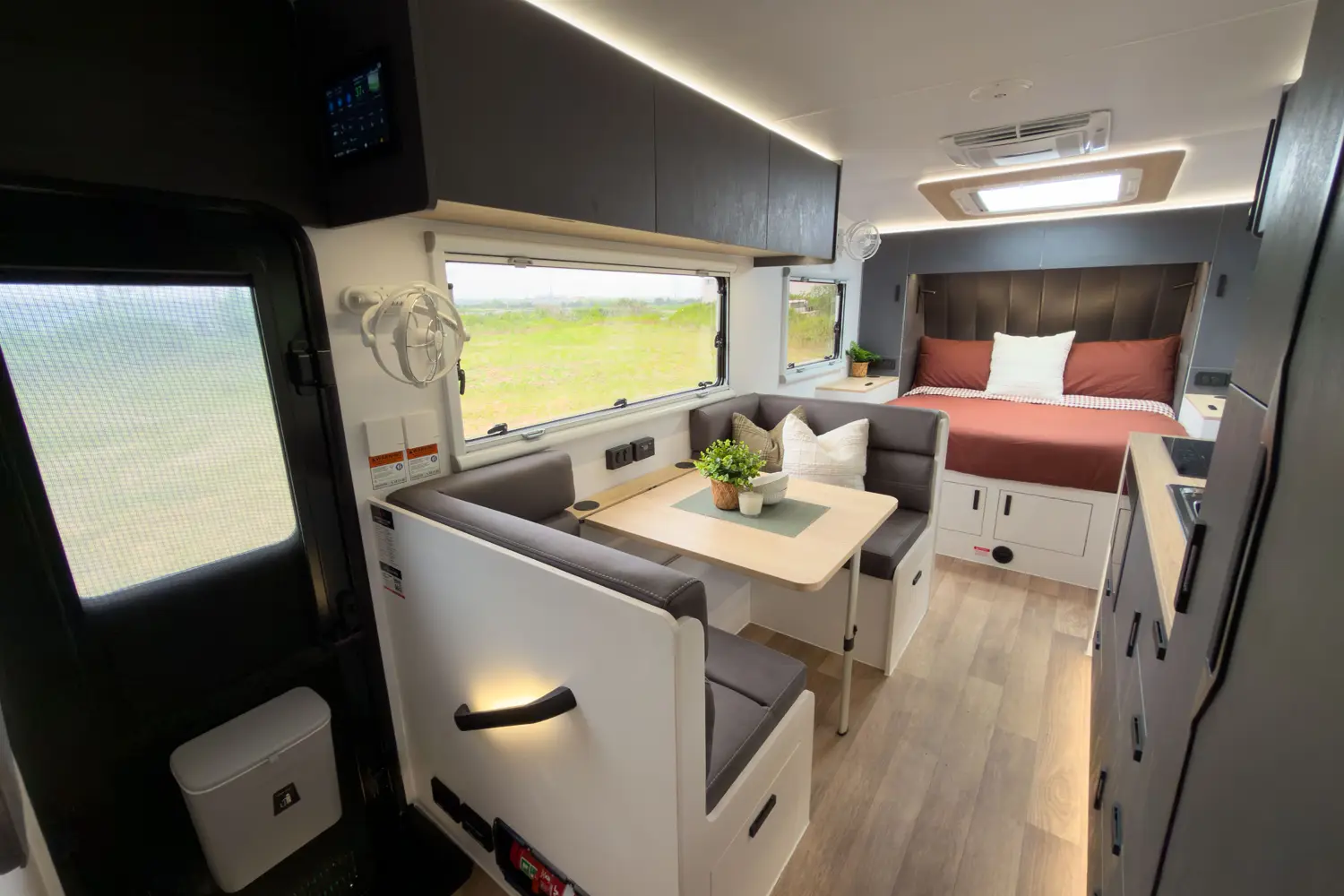

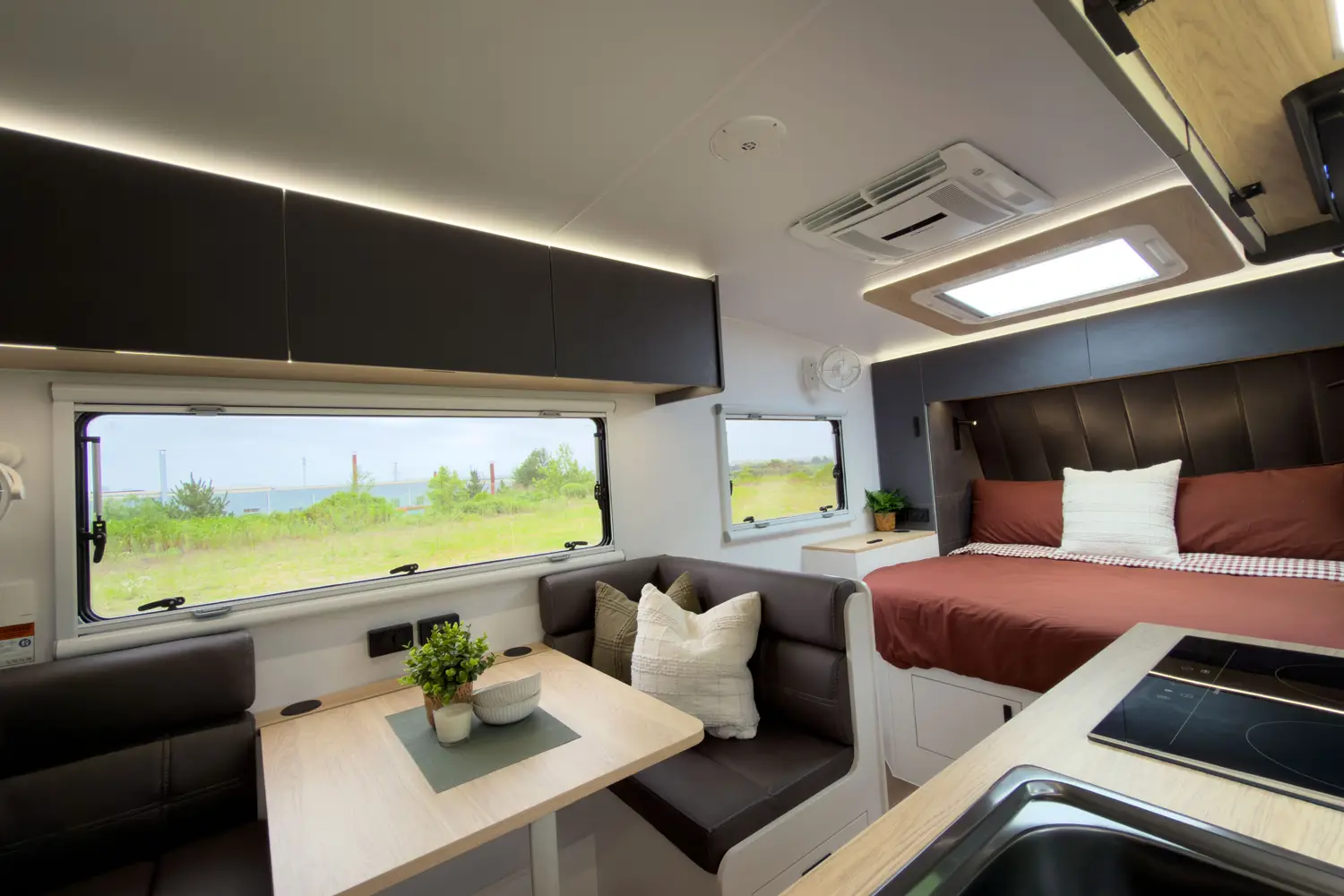

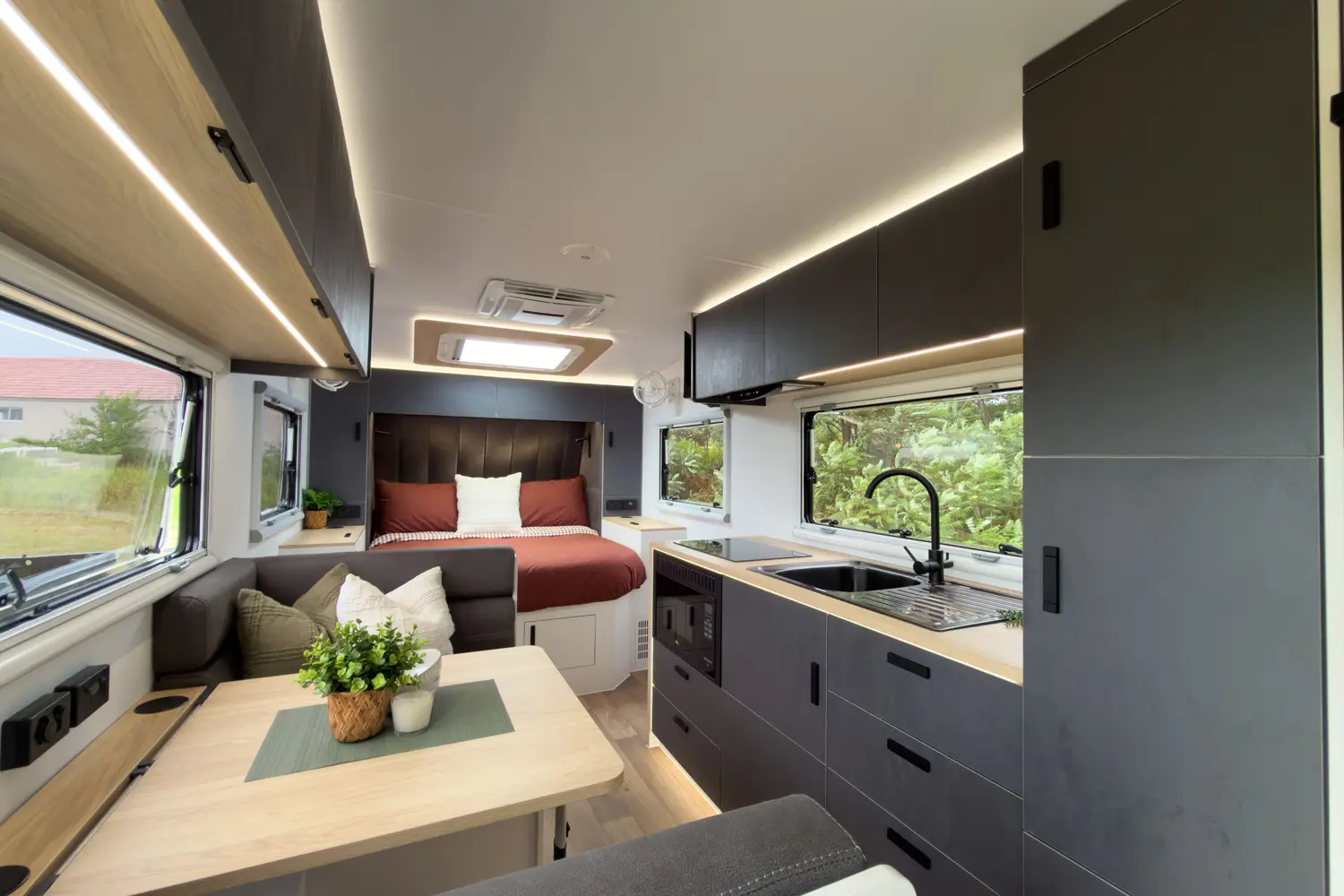

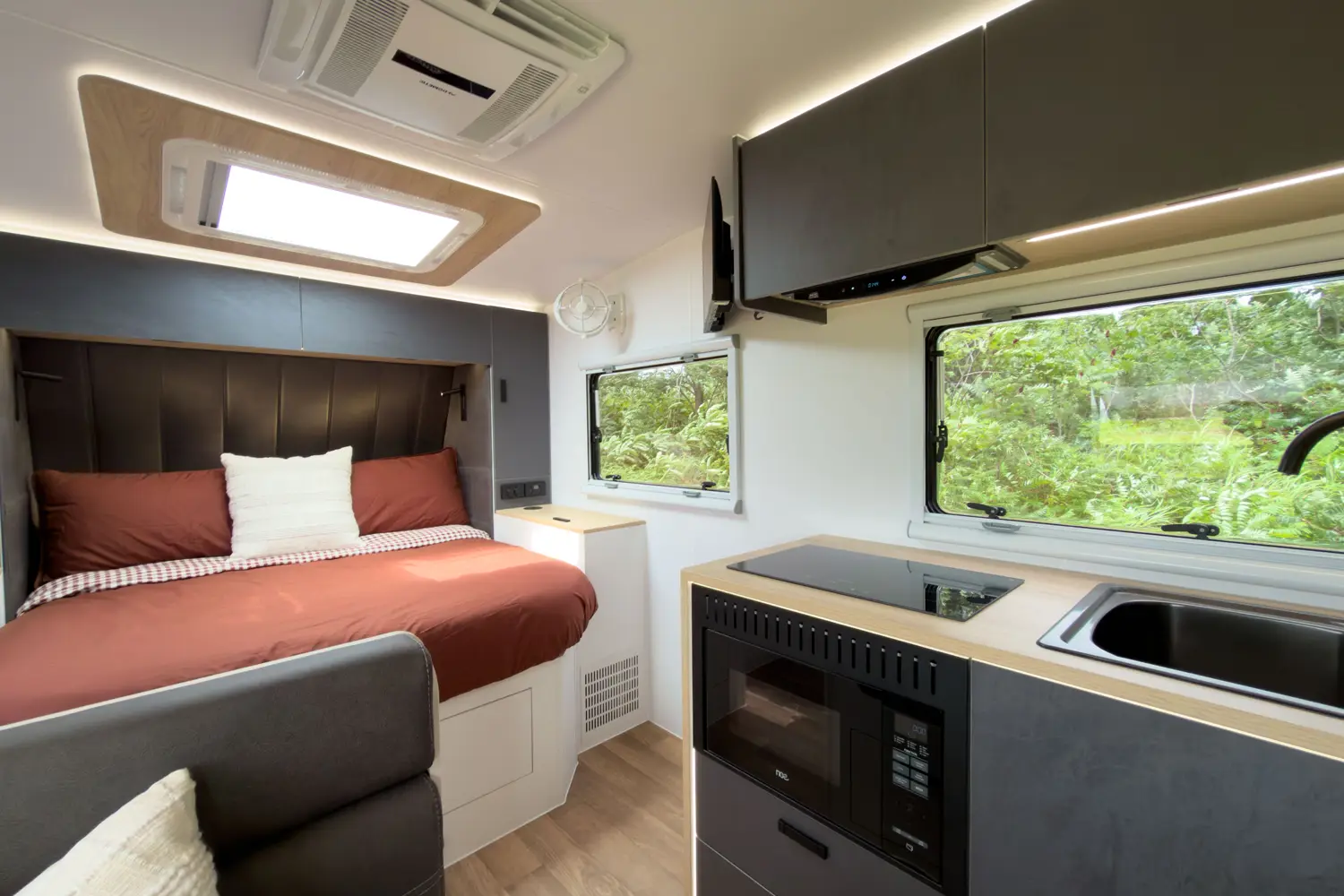

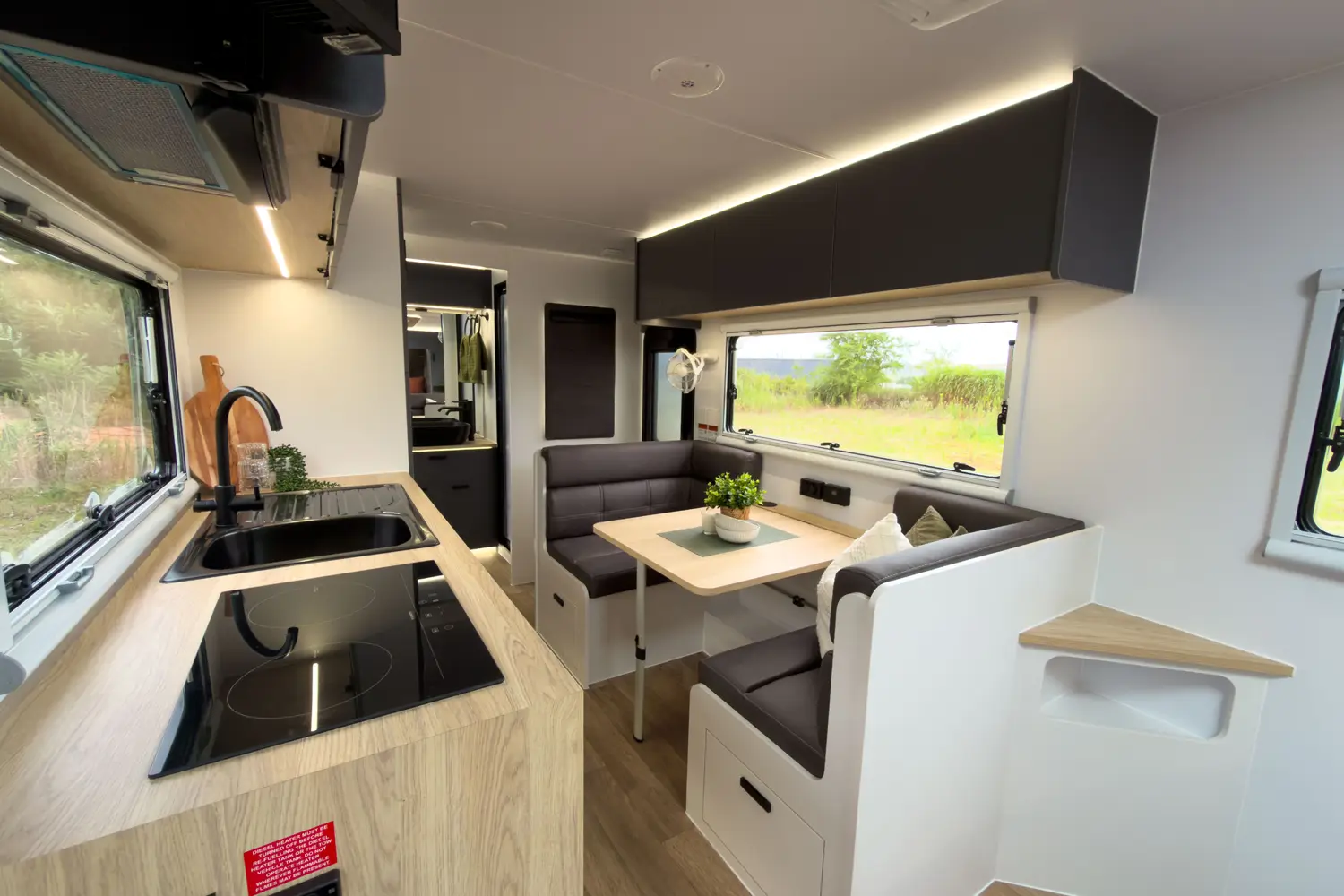

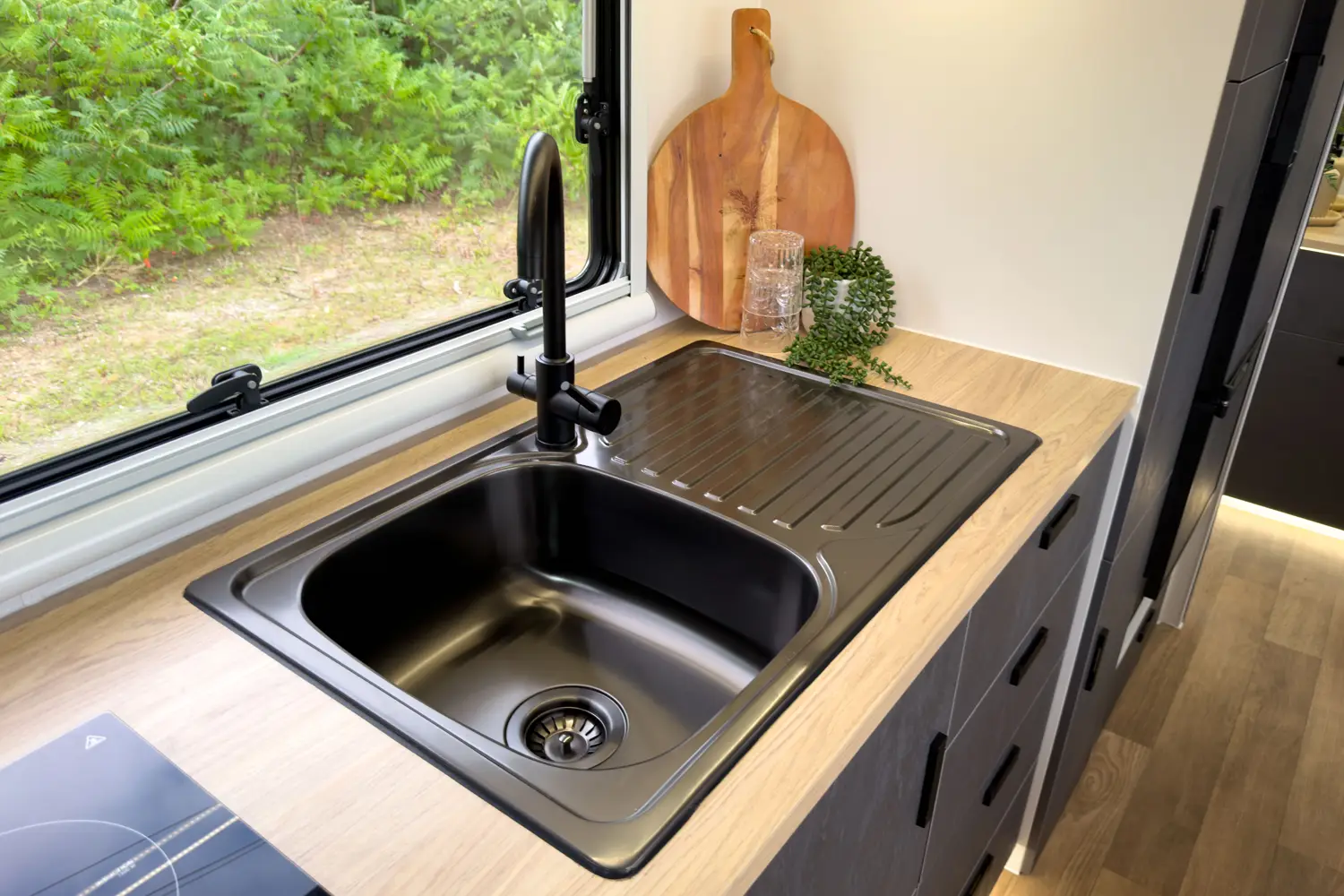

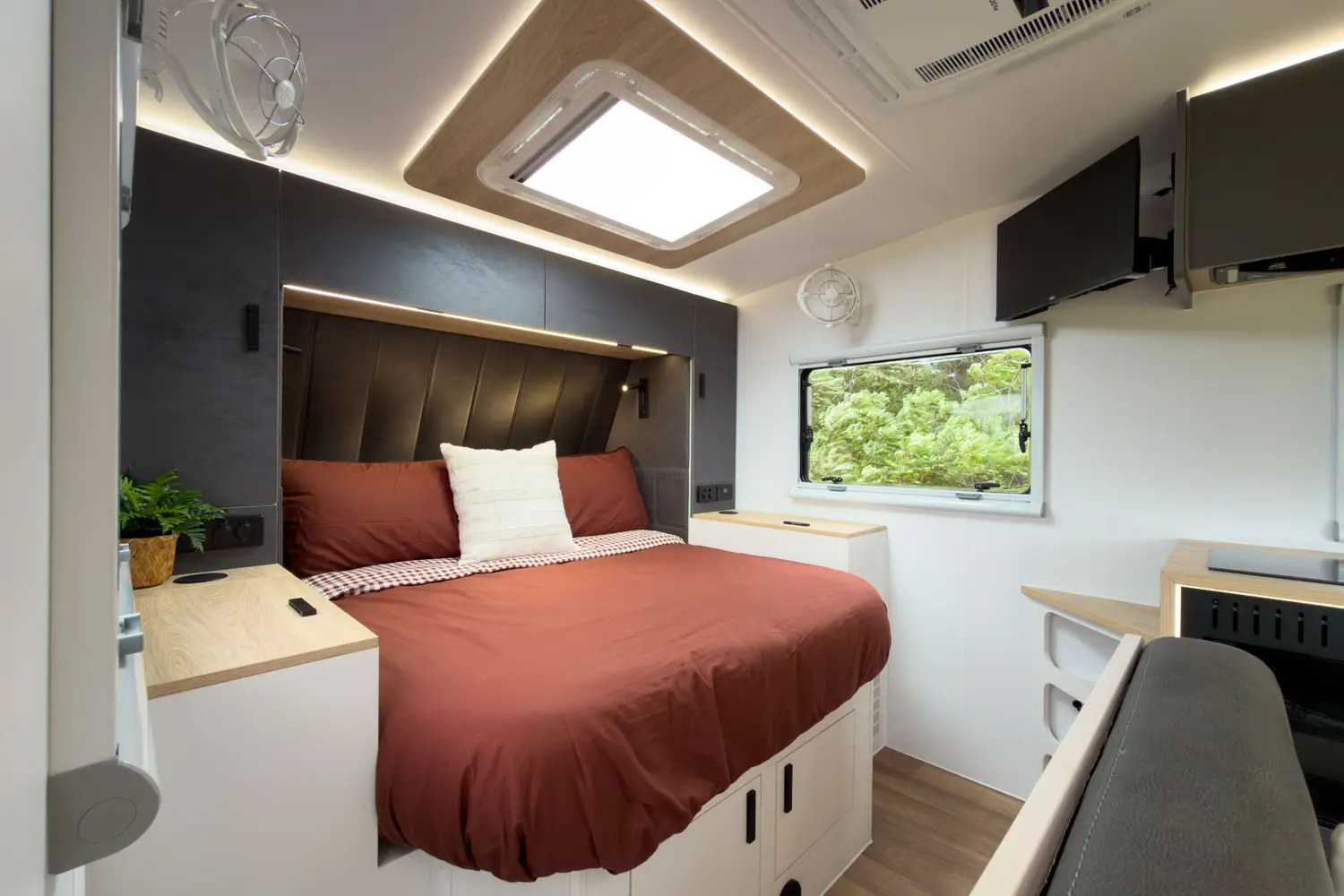

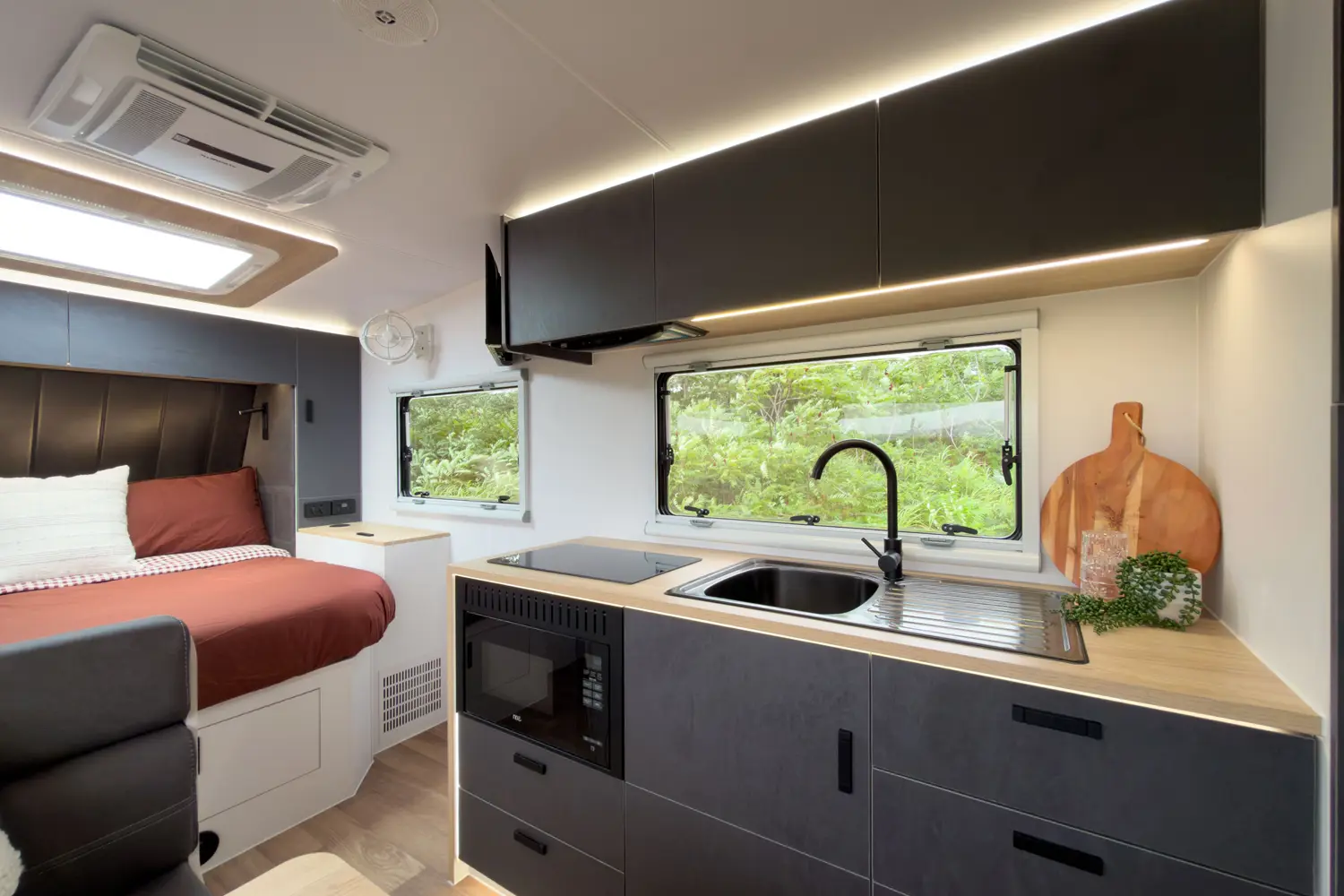

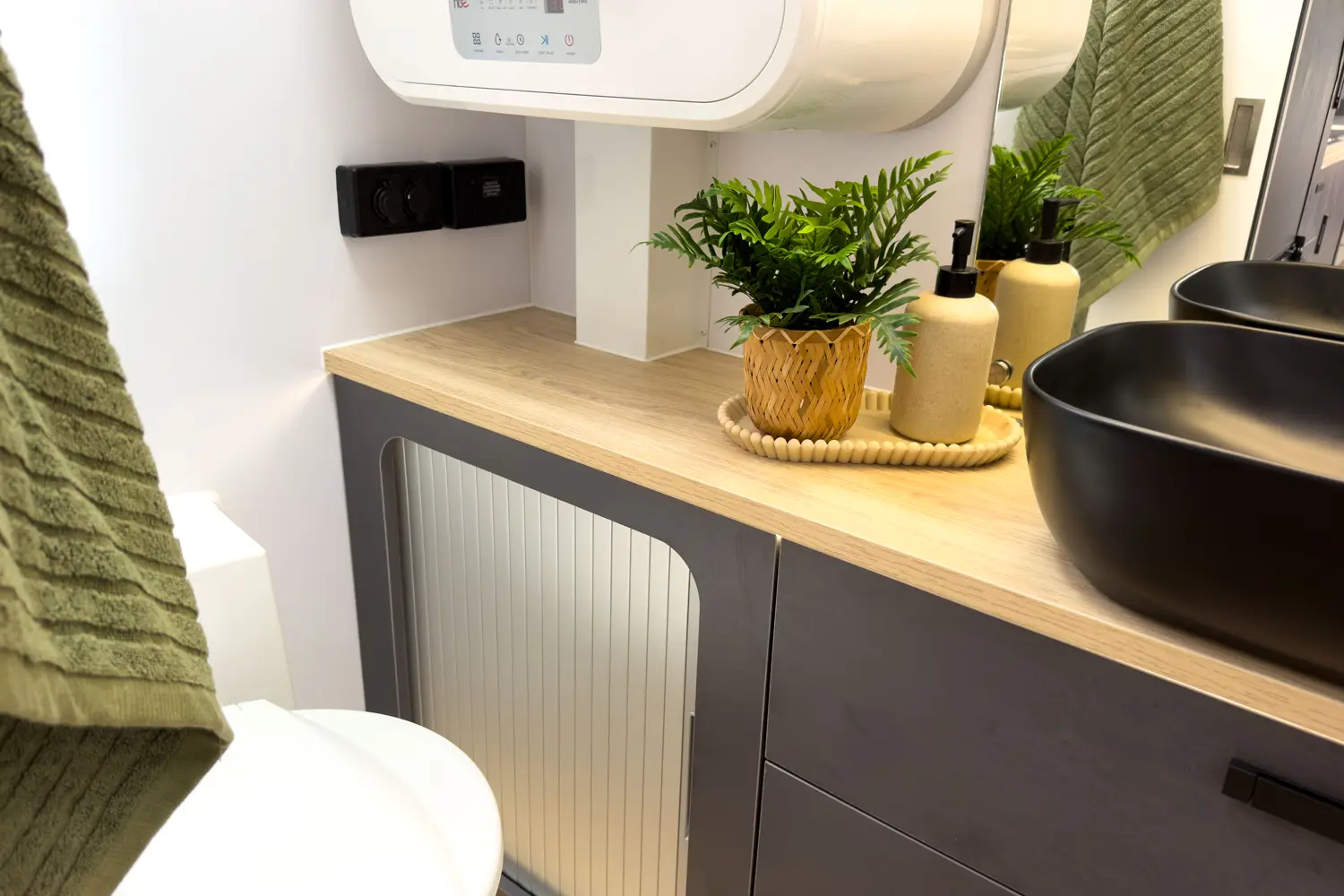

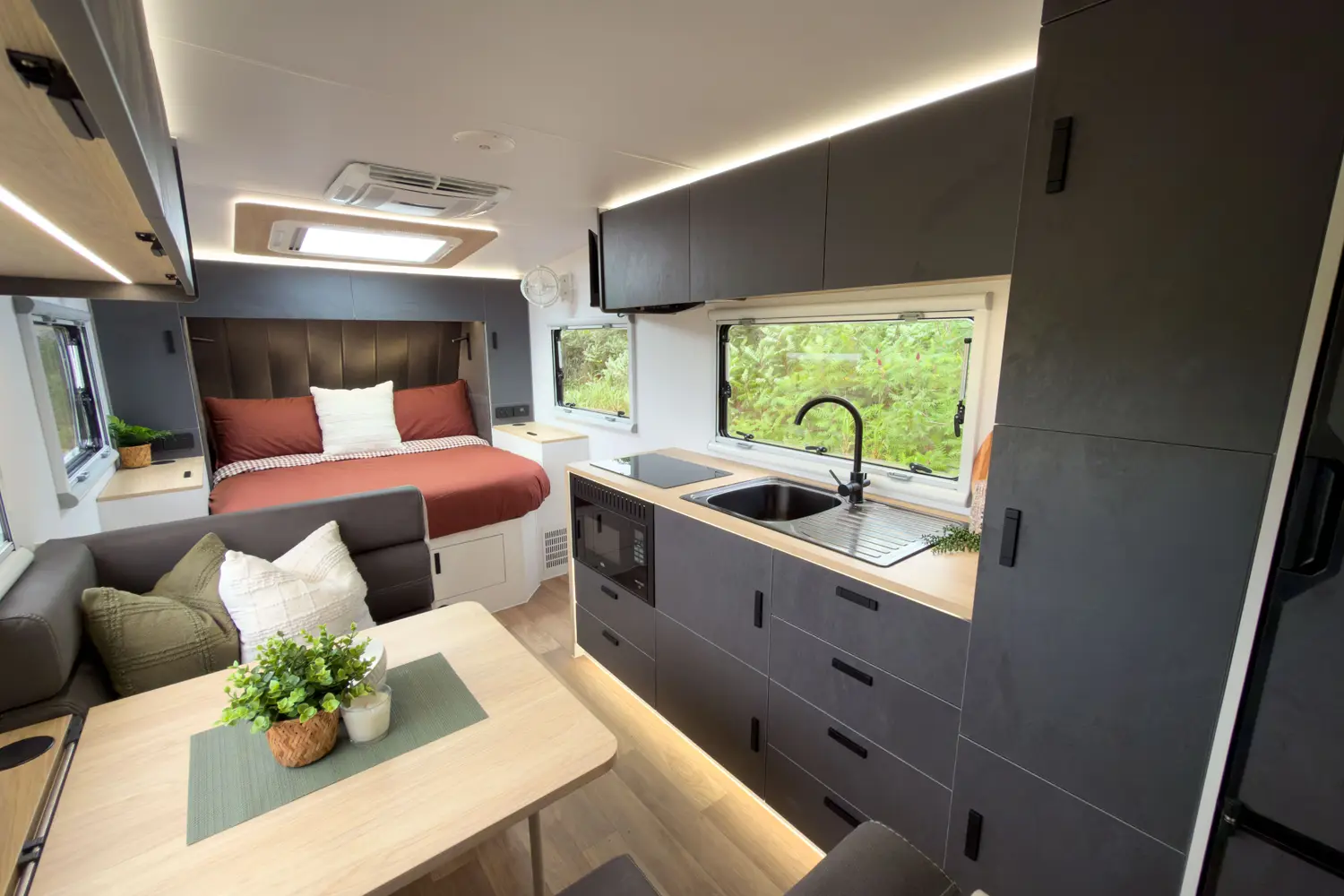

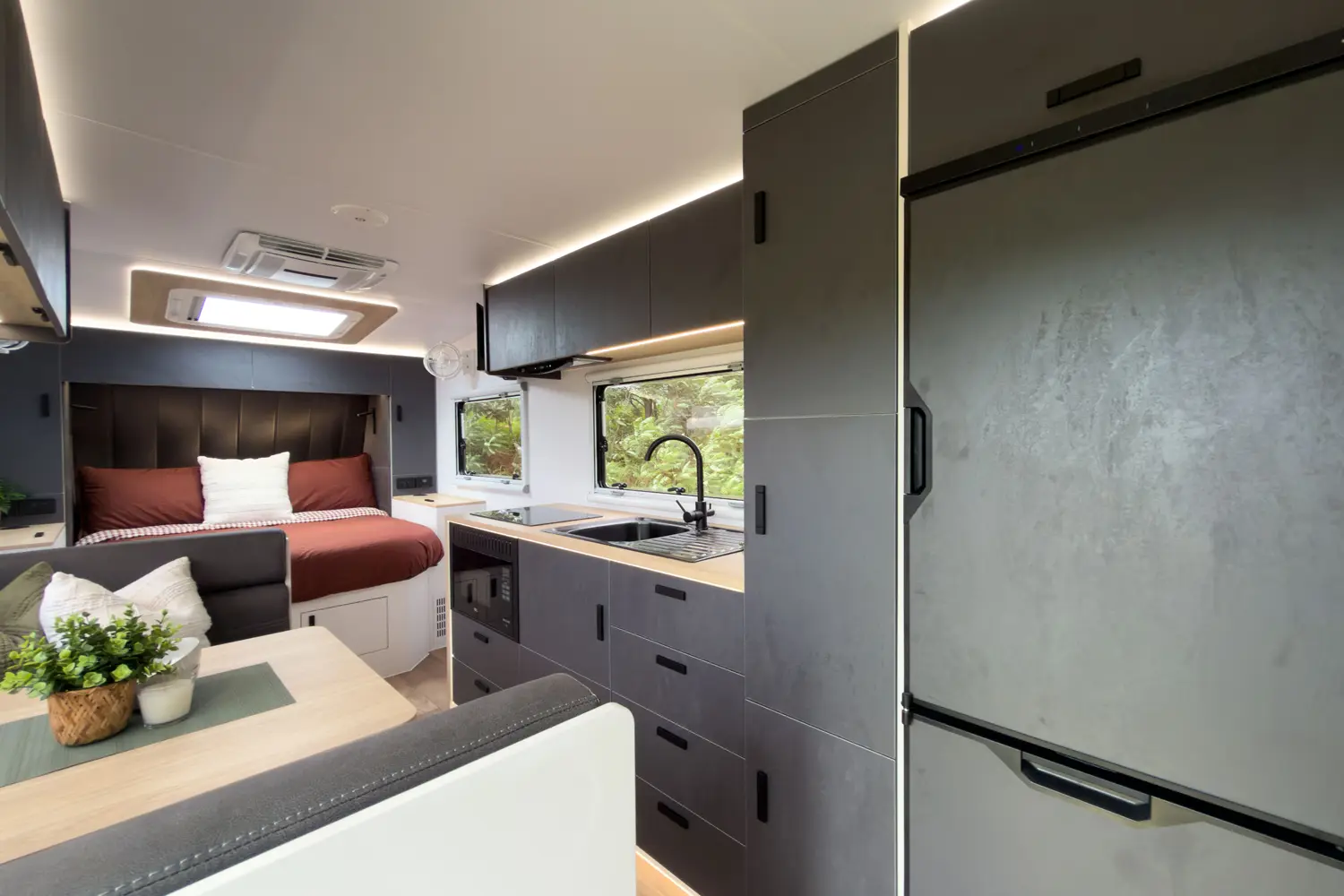

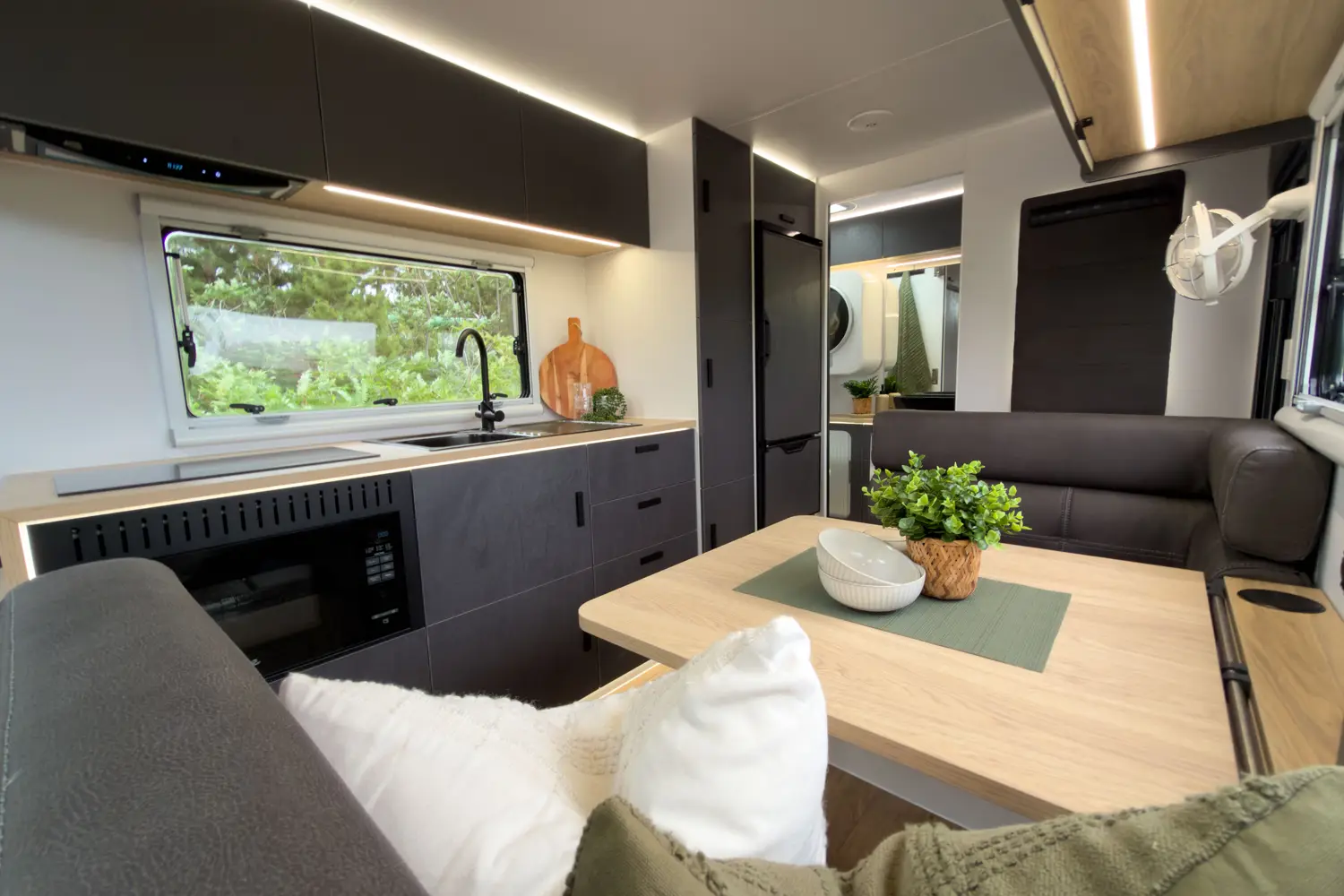

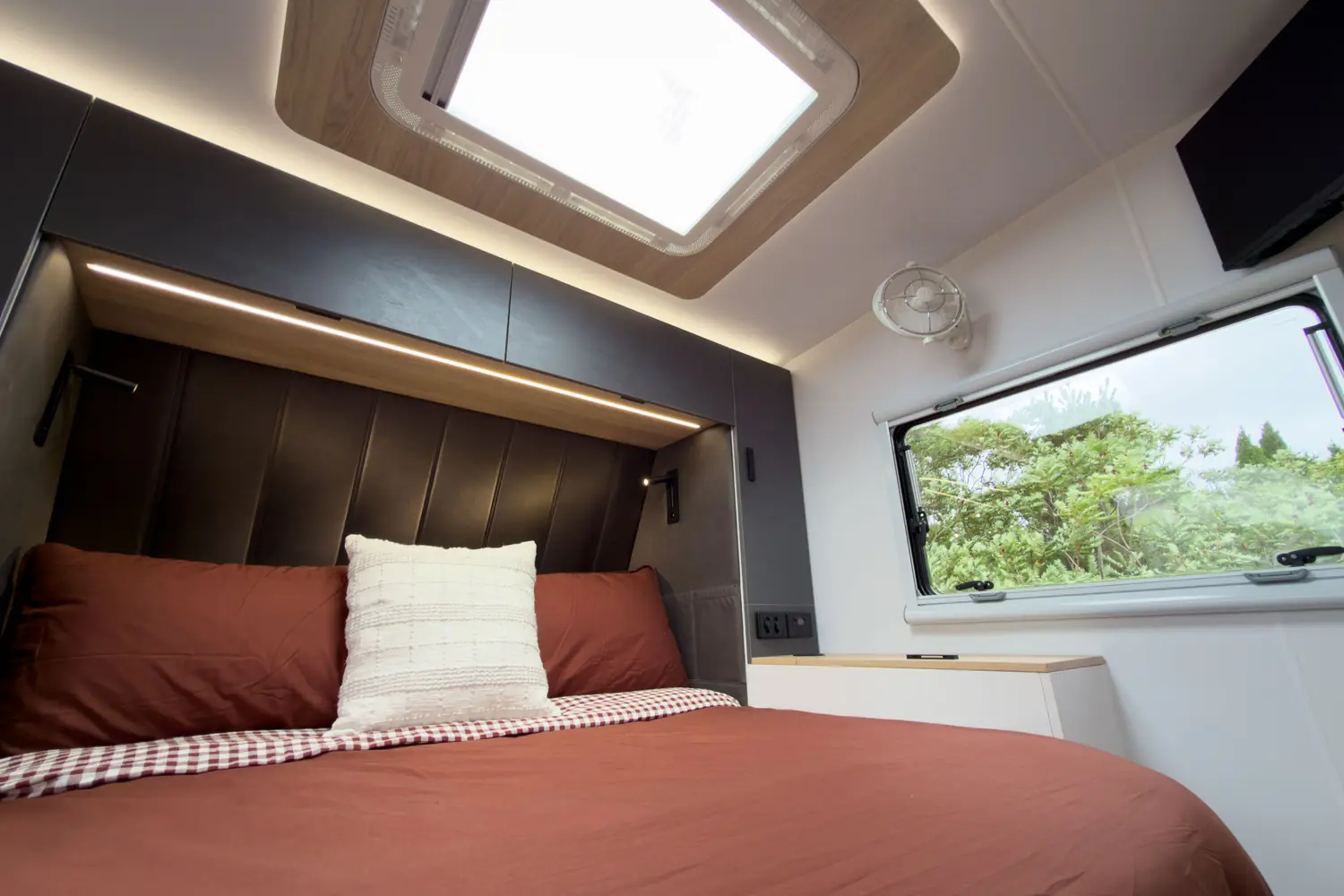

Inside the XT19 FD MK4, the queen size island bed, café dinette and internal ensuite with Dometic cassette toilet and separate shower create a comfortable layout for long-distance touring. The interior combines outback slate cabinetry, oak benchtops, stone wash grey premium leatherette upholstery and matte black fixtures, delivering a refined look while maintaining the durability required in an off-road caravan.

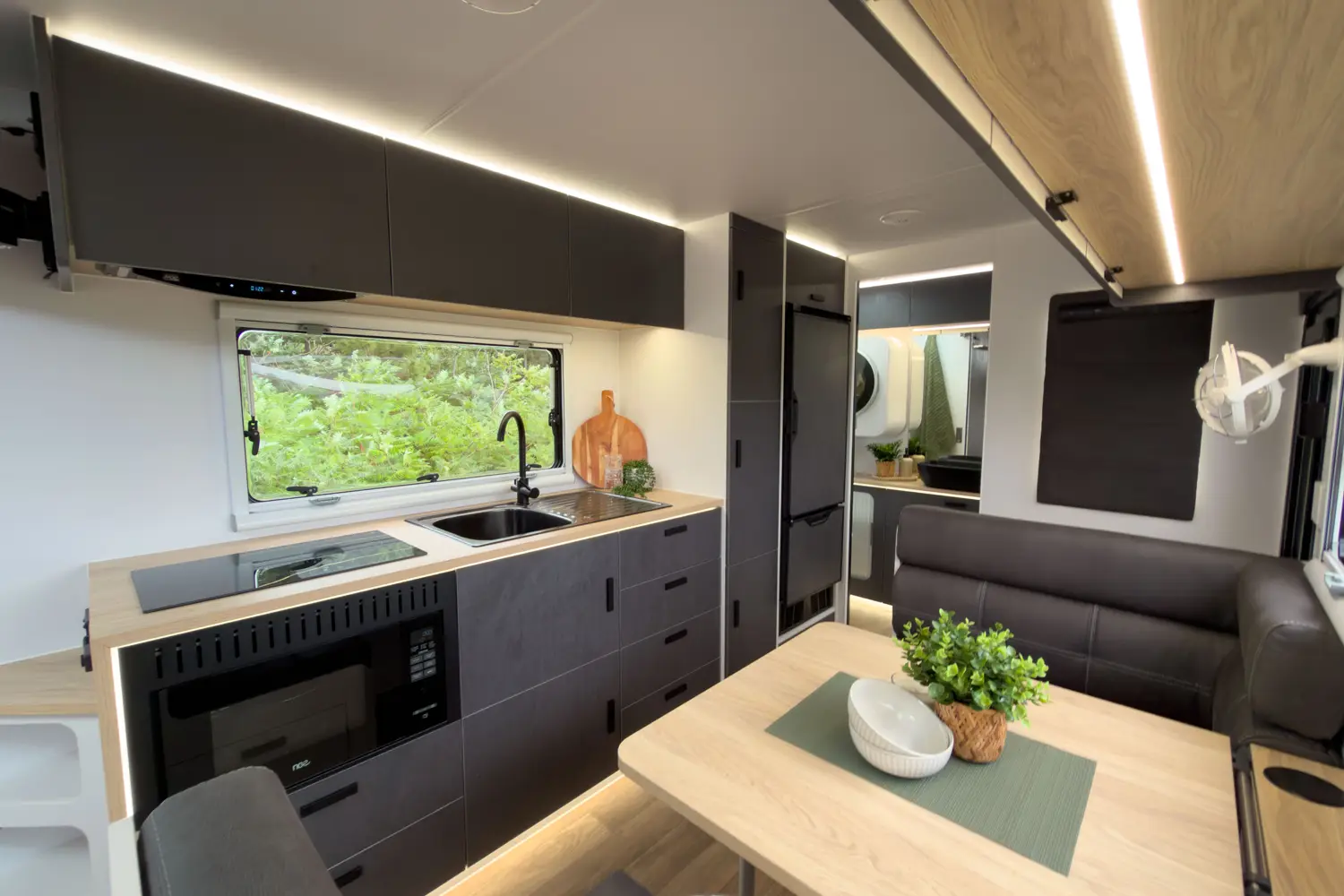

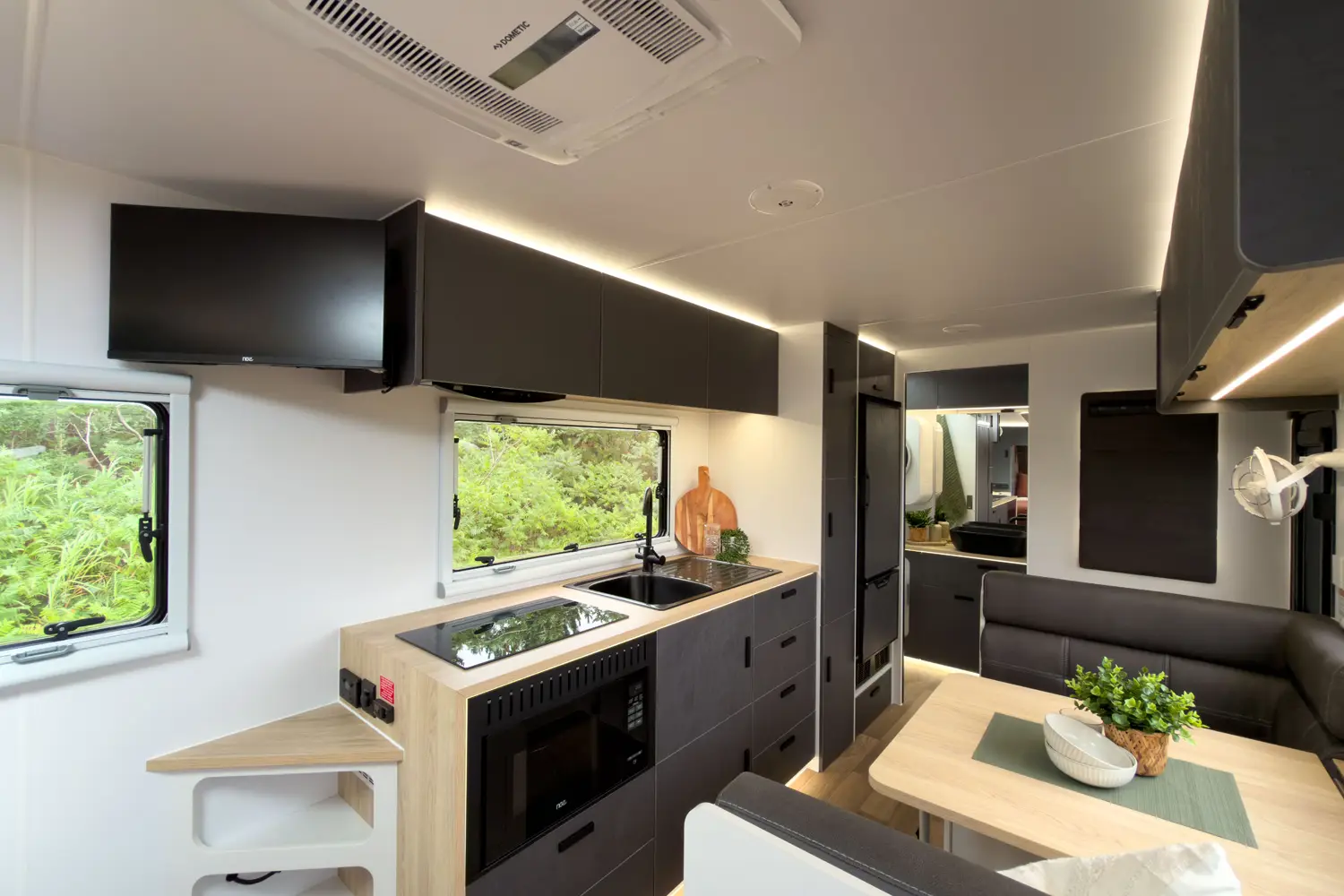

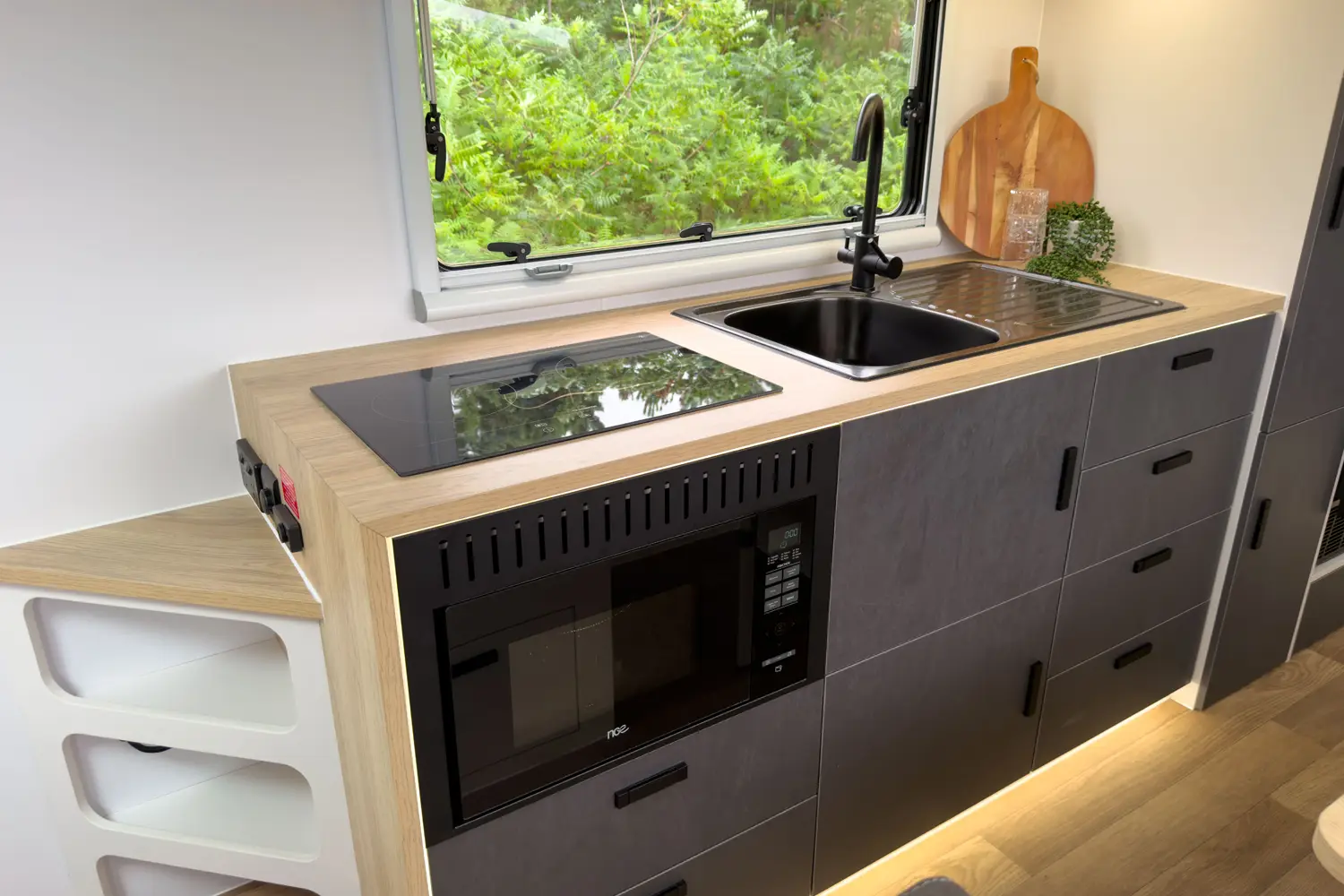

The XT19 FD MK4 includes a Dometic 2-zone induction cooktop, NCE 29L 4-in-1 convection microwave with air fryer, grill, oven and microwave functions, and a Thetford T2208 221L 12V compressor fridge. A Dometic FreshJet 7 Series 48V air conditioner, Eberspächer D2L Airtronic diesel heater, NCE 3kg wall-mounted front loader washing machine, smart TV, stereo system, wireless charging pads and Caframo Sirocco II fans make the interior practical, comfortable and ready for extended off-grid travel.
Please Note: Pre-Production model shown. Images may differ from final product.

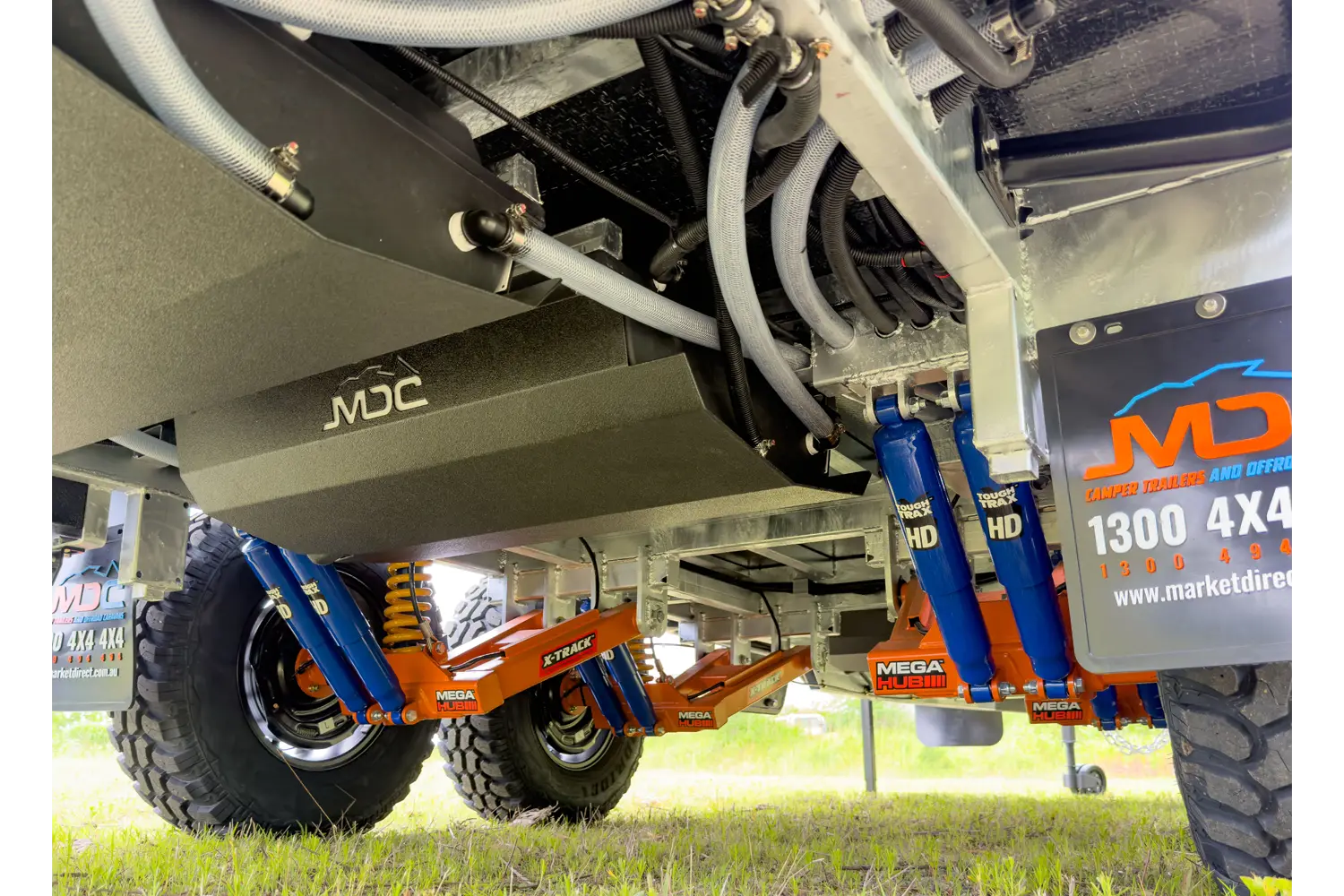

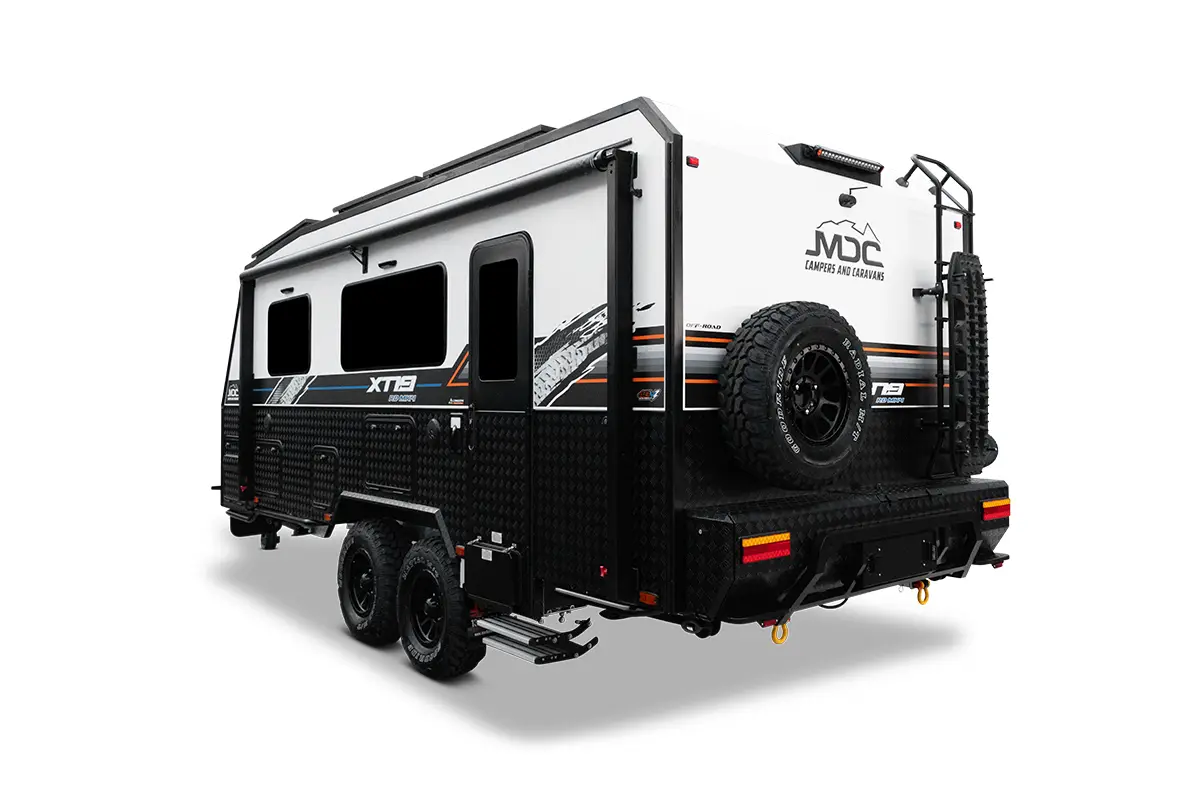

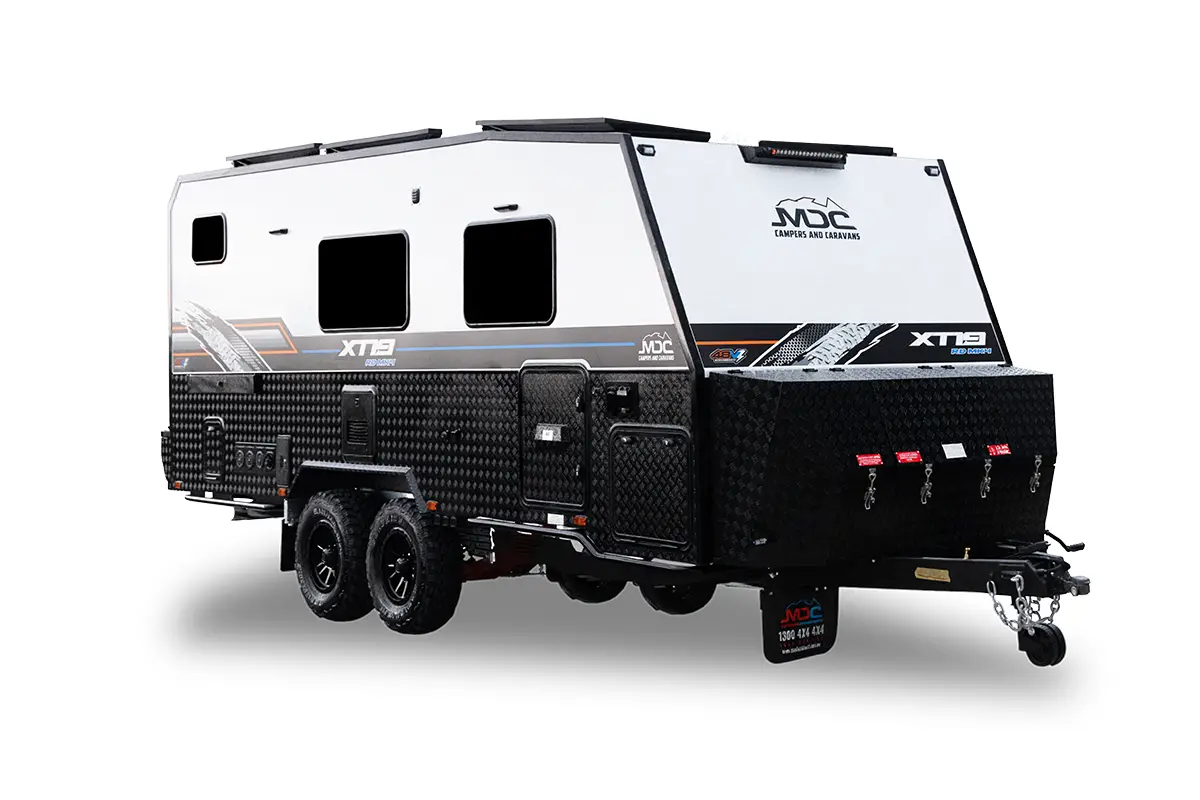

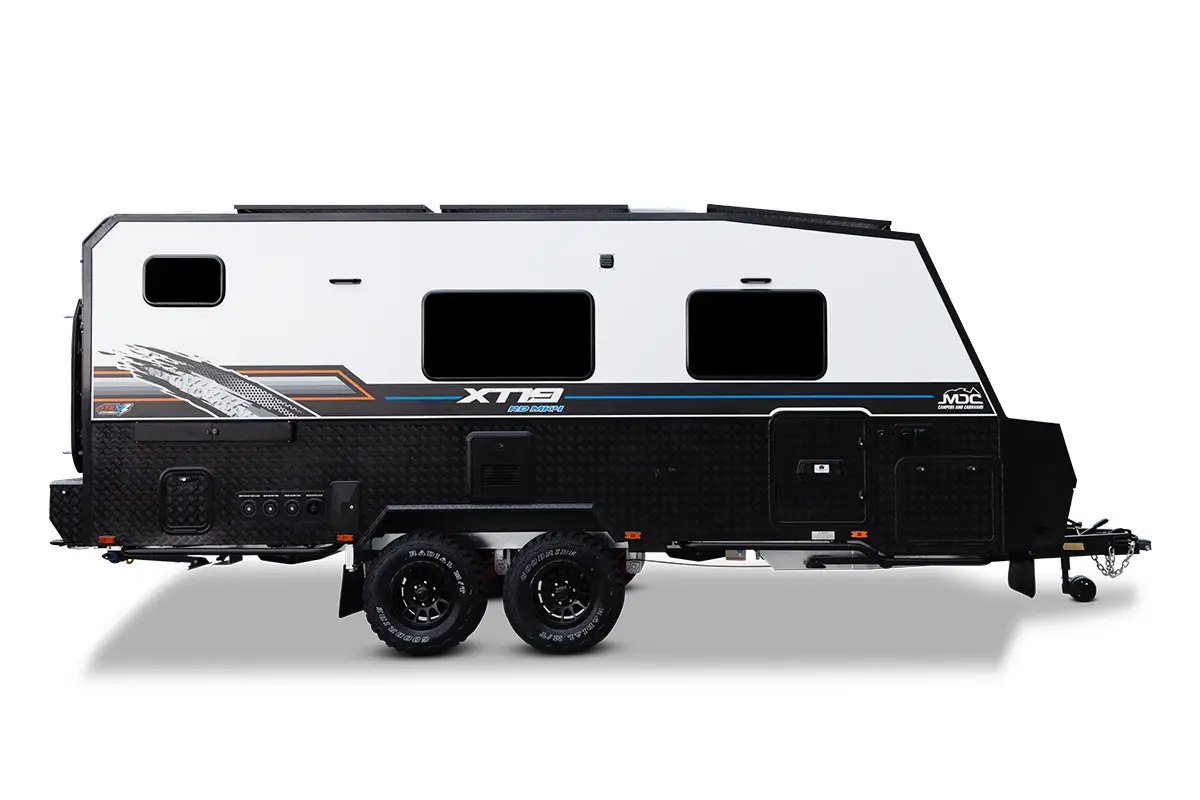

The XT19 FD MK4 is built on a tandem axle platform with a 3500kg ATM rating, X-TRACK trailing arm suspension, dual TOUGH TRAX HD shock absorbers, 12″ electric drum brakes, Cruisemaster DO35 hitch, Tuson asymmetric electronic stability control and 16″ alloy wheels with 265/75 Goodride mud-terrain tyres. Construction includes a hot dip galvanised chassis, heavy-duty black protective finish drawbar, welded aluminium wall and roof frames, composite wall panels and a one-piece thermoplastic composite honeycomb floor.

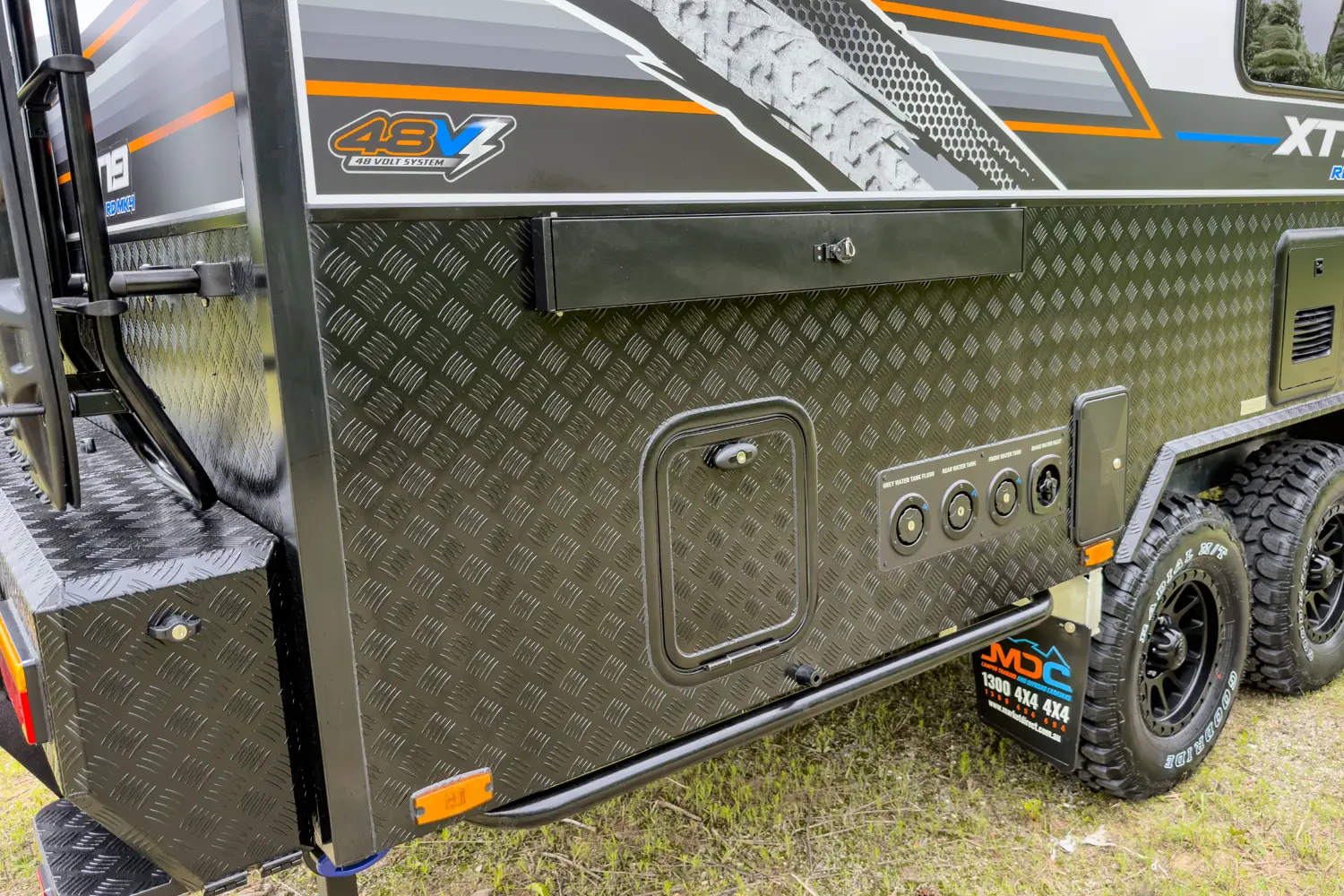

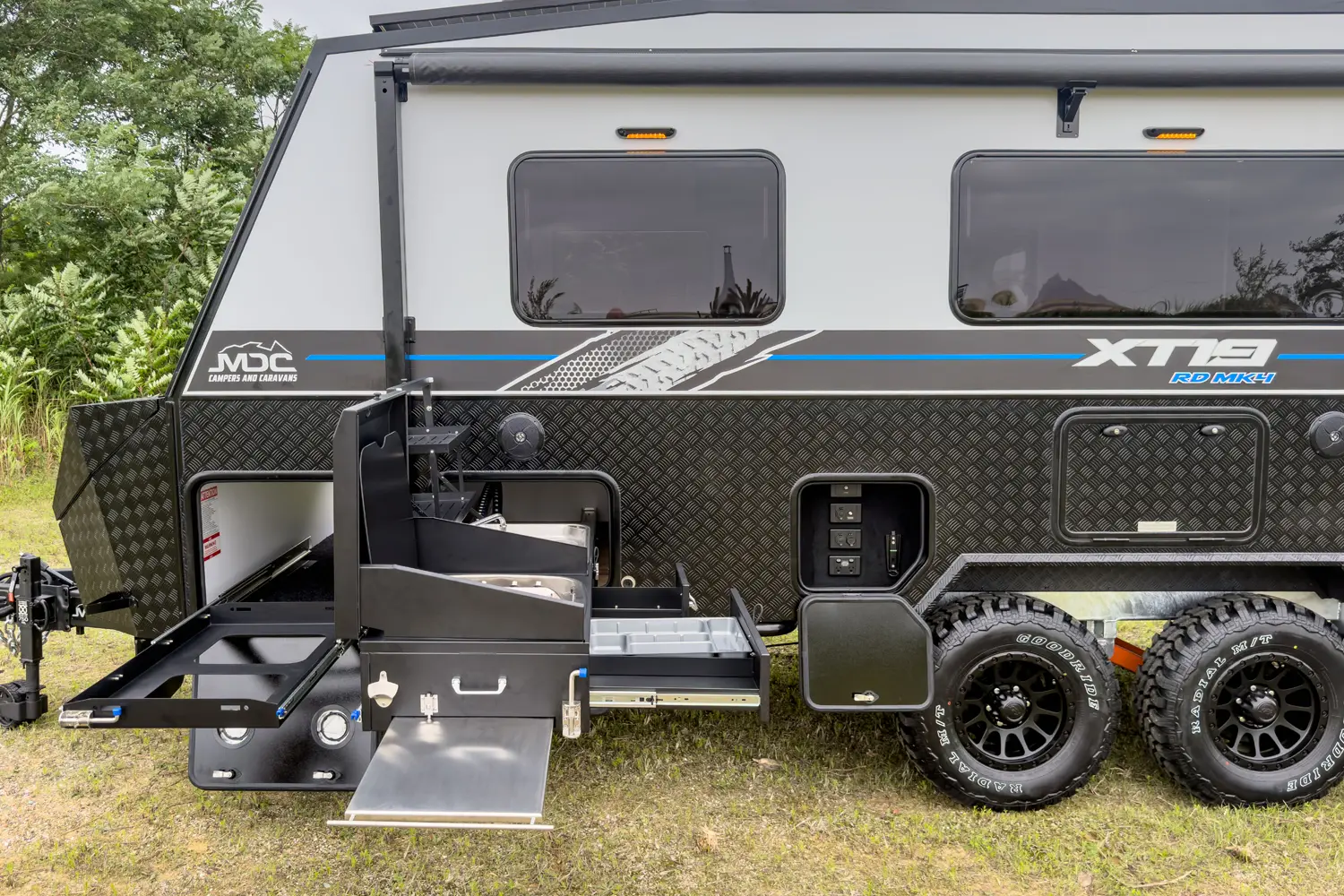

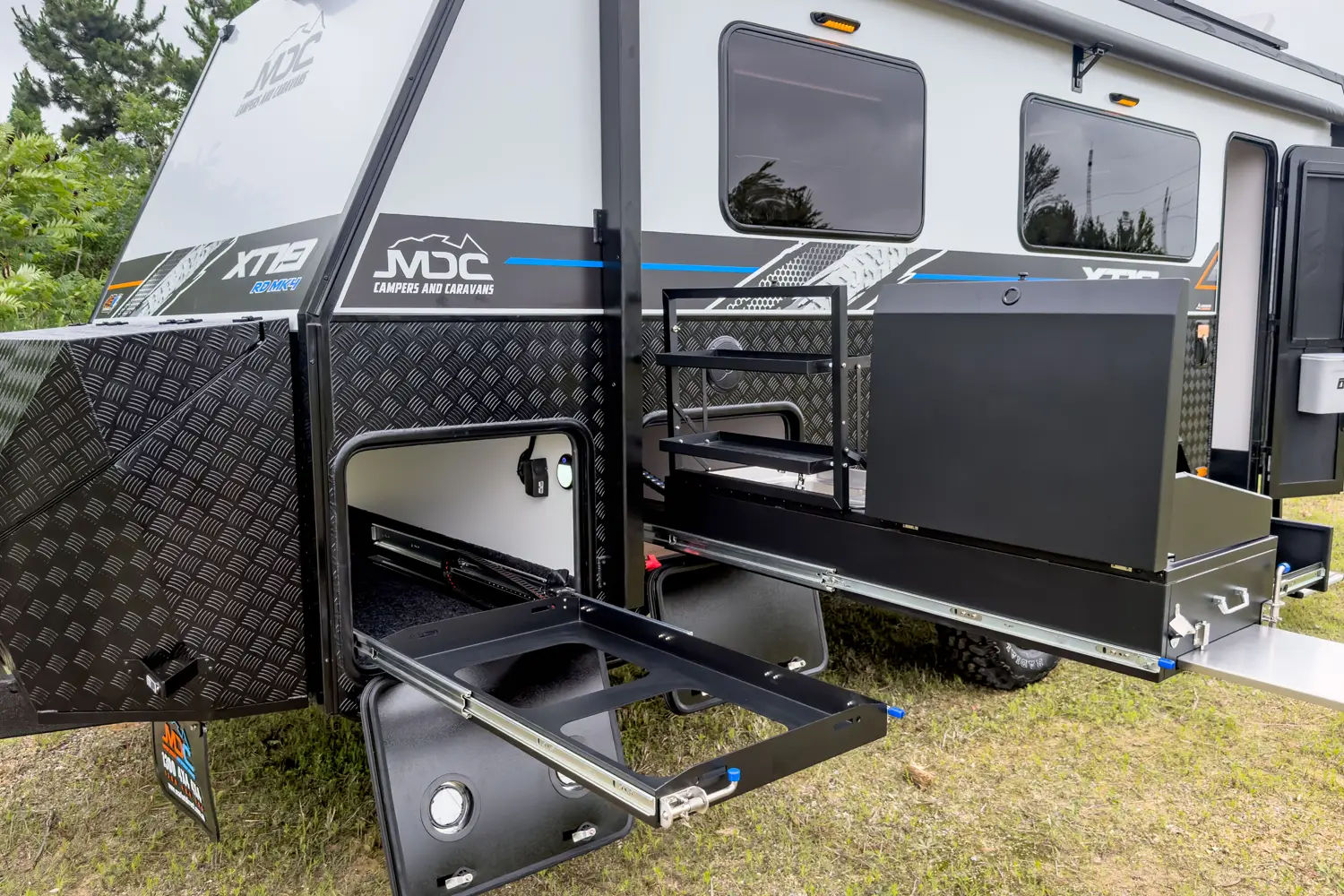

Exterior features include a slide-out external kitchen with Thetford 3-burner gas cooktop and sink with hot and cold water, hot/cold external shower, roll out awning, full annex, rear-mounted service ladder, fridge slide, rear storage bar, 2 x 80L fresh water tanks and 1 x 80L grey water tank. The Projecta Intelli-Grid 48V power management system, 48V 210Ah chassis-mounted lithium battery bank, 4000W inverter, portable solar inputs, tyre pressure monitoring and levelling sensor help make this 19ft off-road caravan a capable touring companion.
Please Note: Pre-Production model shown. Images may differ from final product.

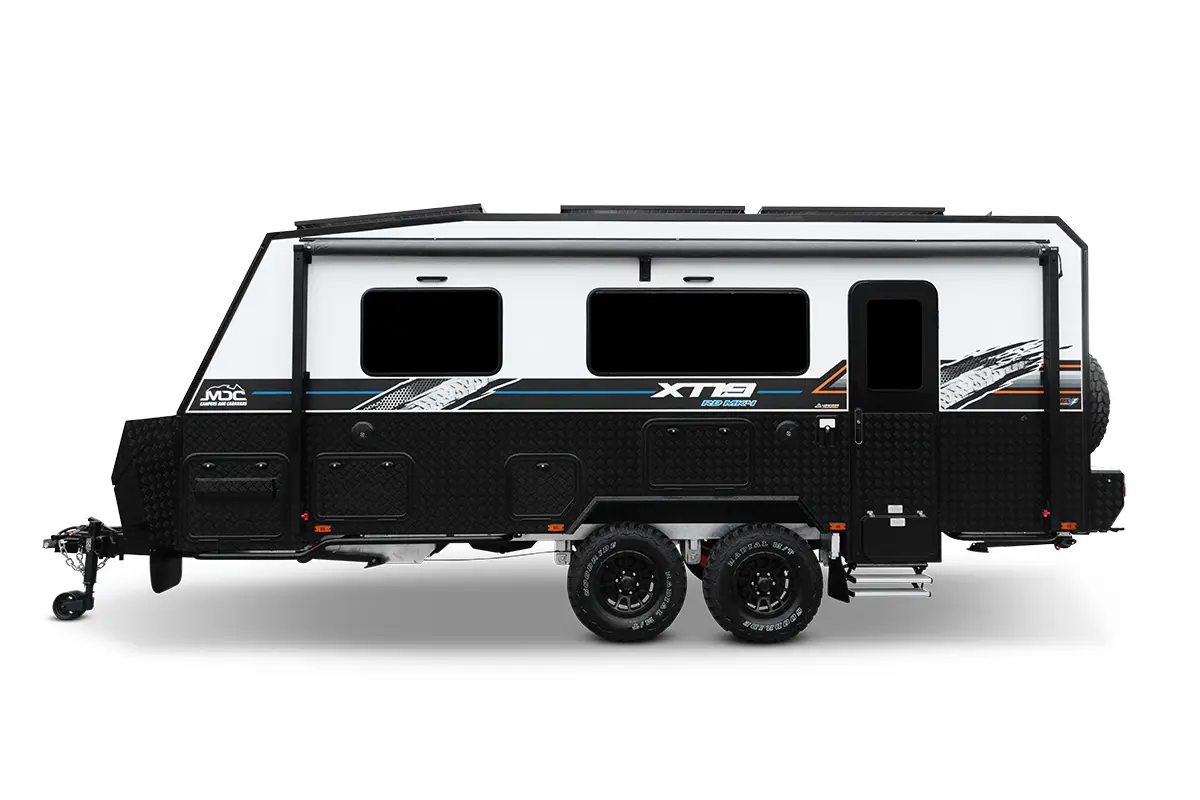

EXPLORE XT19 RD MK4

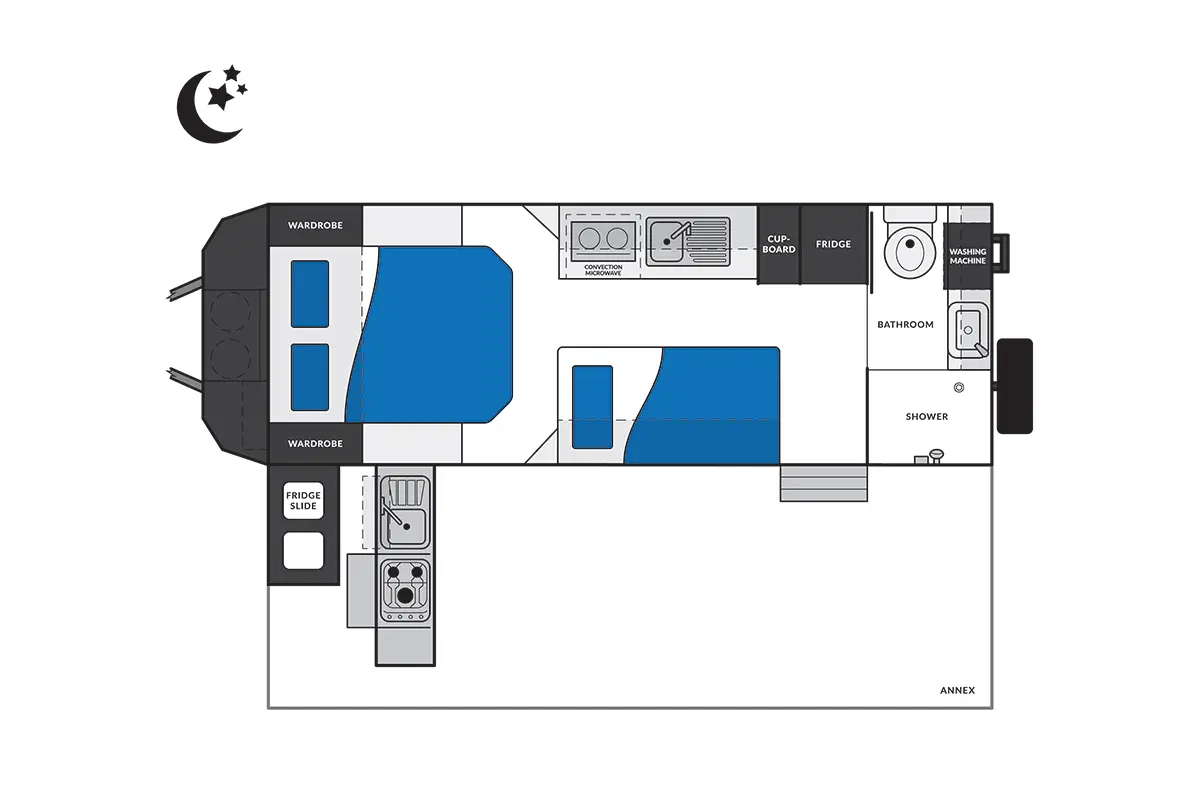

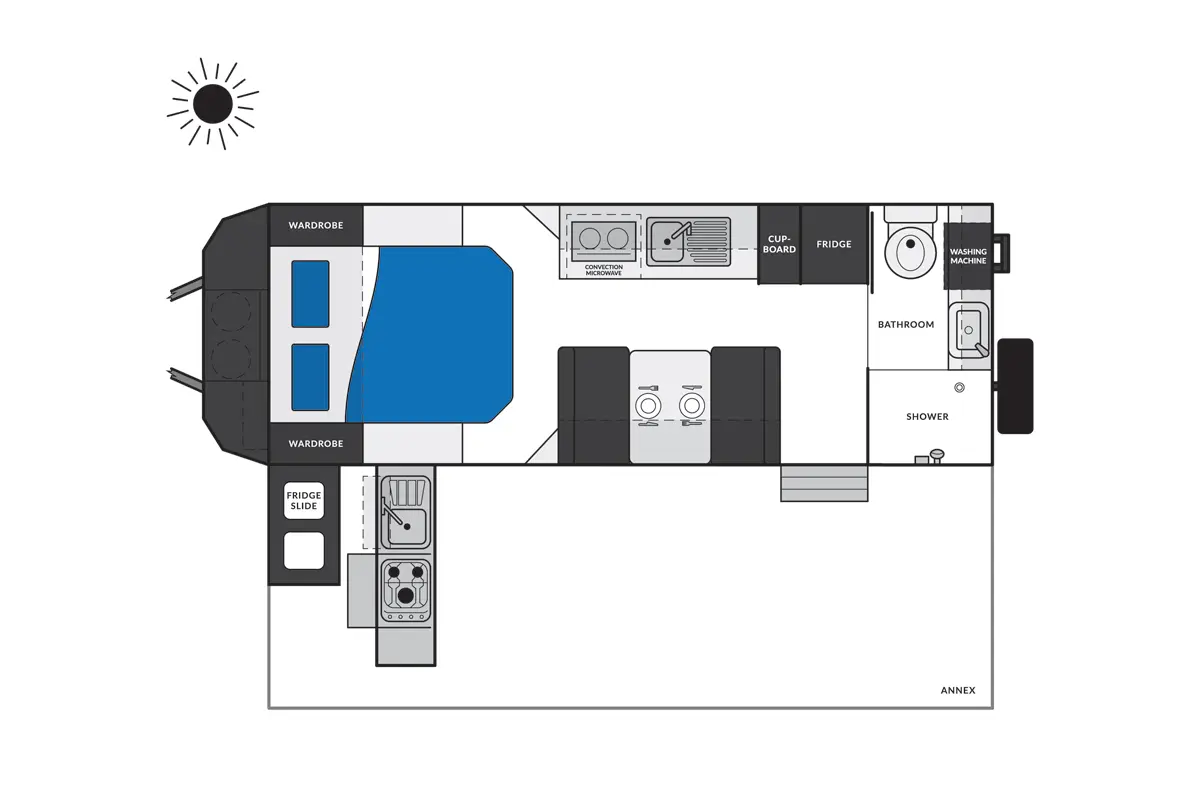

Please Note: Pre-Production model shown. Above 3D Floorplan is a representative pictorial of floorplan/layout only, please refer to actual product photos for design features and benefits.
SPECIFICATIONS
GENERAL
♦ Off-road Caravan
♦ 19ft Couples tandem axle caravan
♦ Sleeps 2+1
DIMENSIONS
♦ Open – TBC

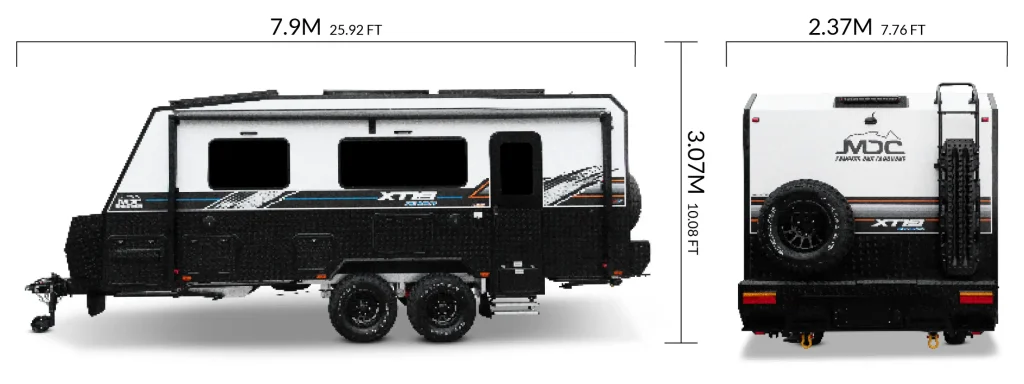

♦ Closed (Travel Size) – 7901mm L x 2365mm W x 3071mm H
♦ Annex Size – TBC
WEIGHTS & RATINGS
♦ Tare weight Approx. 2960kg
♦ Towball weight Approx. 210kg
♦ ATM Rating 3500kg
♦ Payload Approx. 540kg
CHASSIS
♦ 12″ Electric drum brakes
♦ Cruisemaster DO35 hitch coupling
♦ Hot dip galvanised chassis with heavy-duty black protective finish drawbar
♦ KOJACK 4000kg hydraulic jack
♦ ARK XO750 jockey wheel
♦ X-TRACK trailing arm suspension with dual TOUGH TRAX HD shock absorbers
♦ Aluminium water tank guards with heavy-duty black protective finish
♦ 16″ Alloy wheels with 265/75 Goodride M/T tyres
BODY CONSTRUCTION

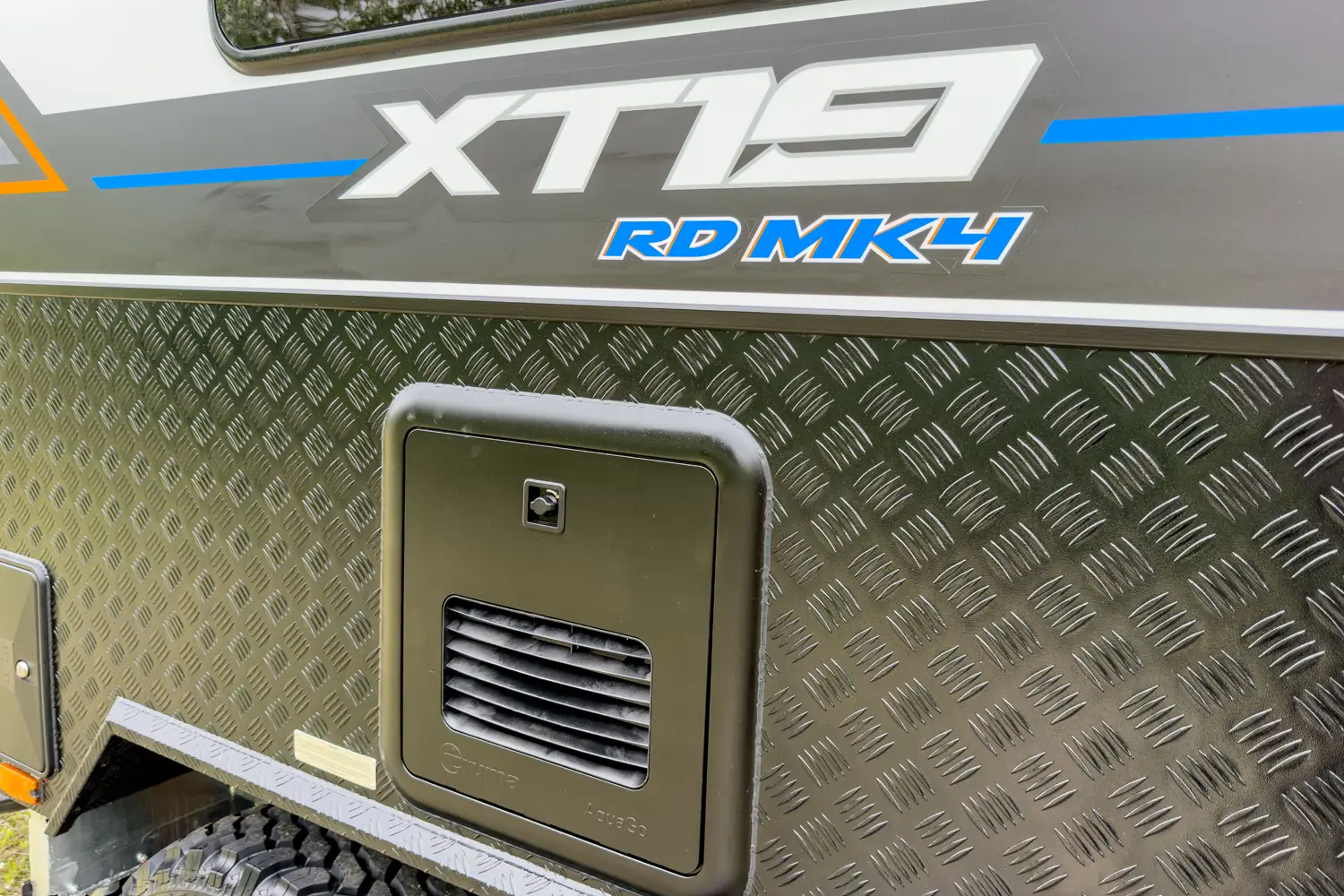

♦ Black aluminium checker plate panel external trimming
♦ One-piece thermoplastic composite honeycomb floor
♦ Welded aluminium wall and roof frames
♦ One-piece fibreglass external roof skin
♦ Aluminium composite exterior wall panels and fibreglass composite internal wall panels
EXTERIOR

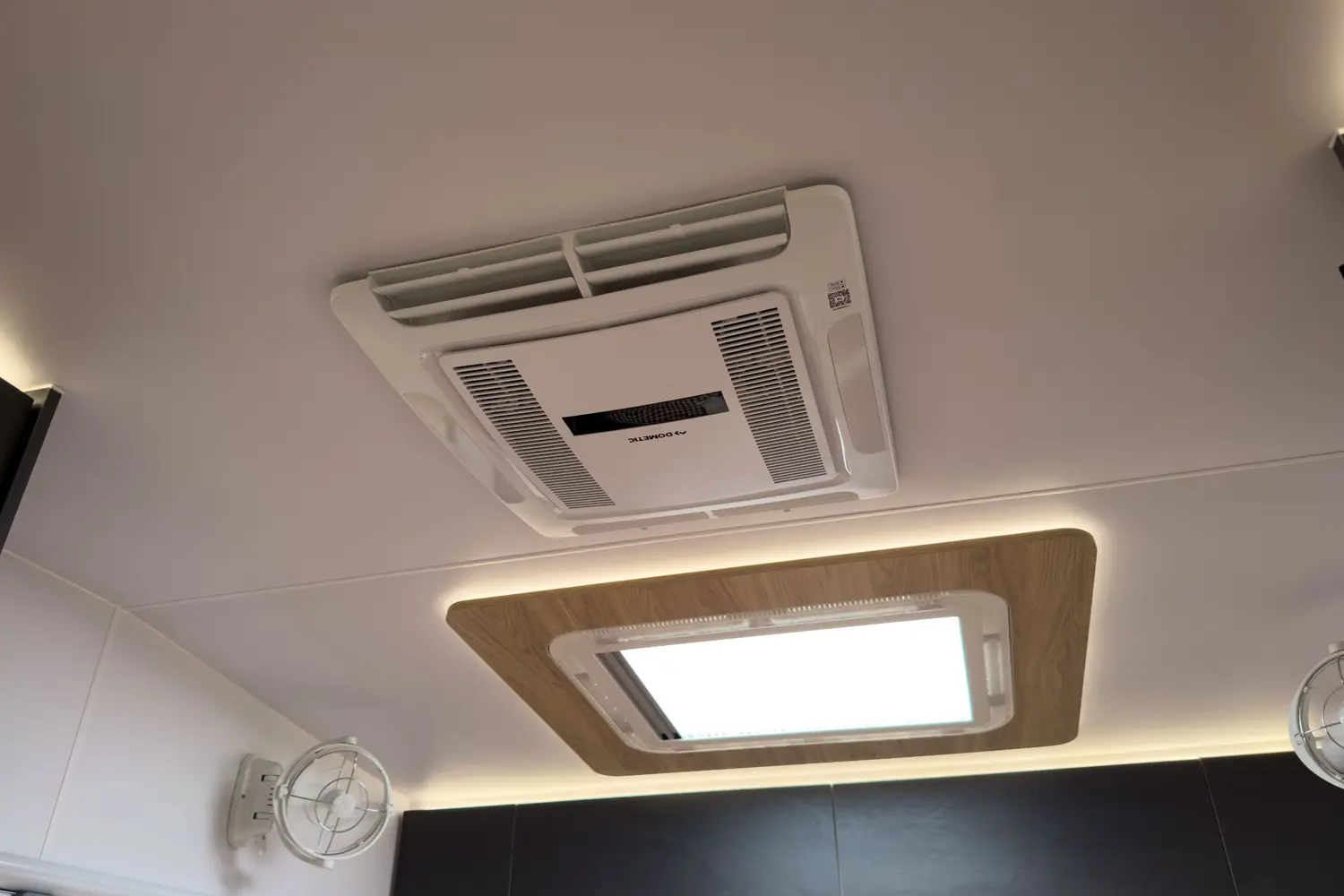

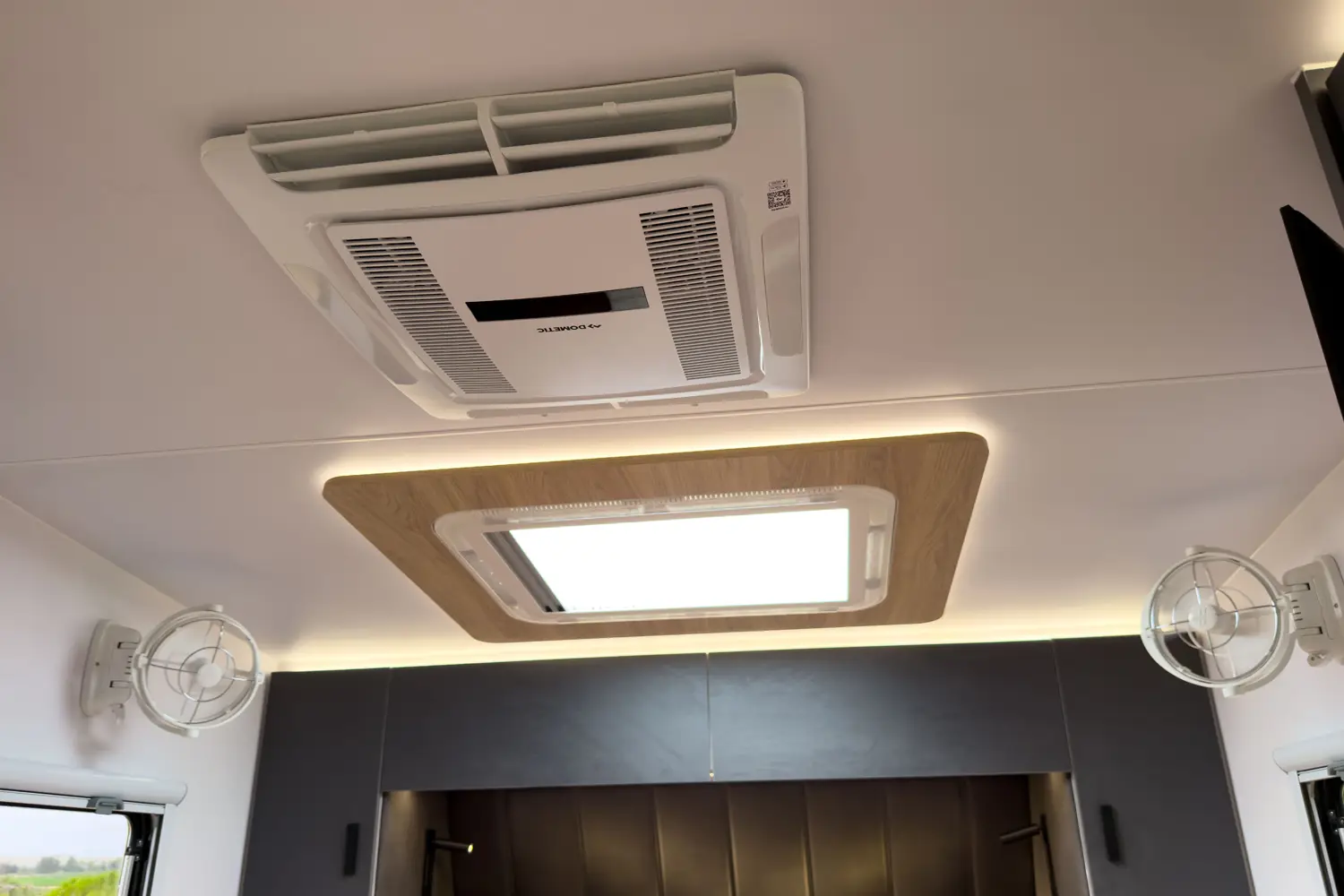

♦ 48V Dometic Freshjet 7 Series 2500W air conditioner
♦ Roll out awning
♦ Full annex, enclosed roof, walls, floor and draft skirt
♦ Collapsible wall-mounted clothes line
♦ Tuson asymmetric electronic stability control

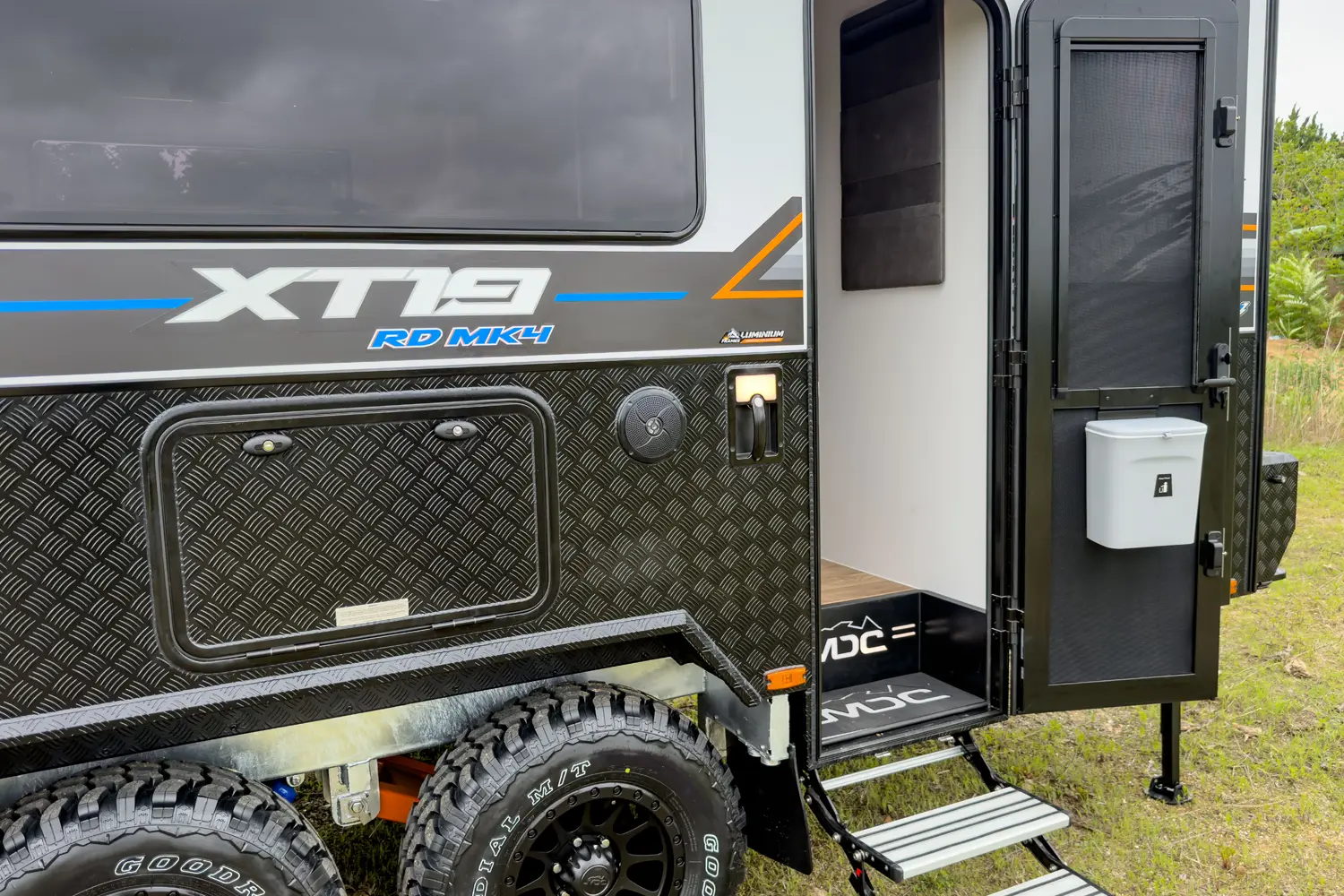

♦ Double manual pull out entry step
♦ Hot/cold external shower
♦ 1040mm L x 530mm W x 480mm H (fridge slide)
♦ 2 x 9kg gas cylinder holders
♦ Truma AquaGo Comfort Plus instant water heater (gas-operated)
♦ 1 x 20L jerry can holder

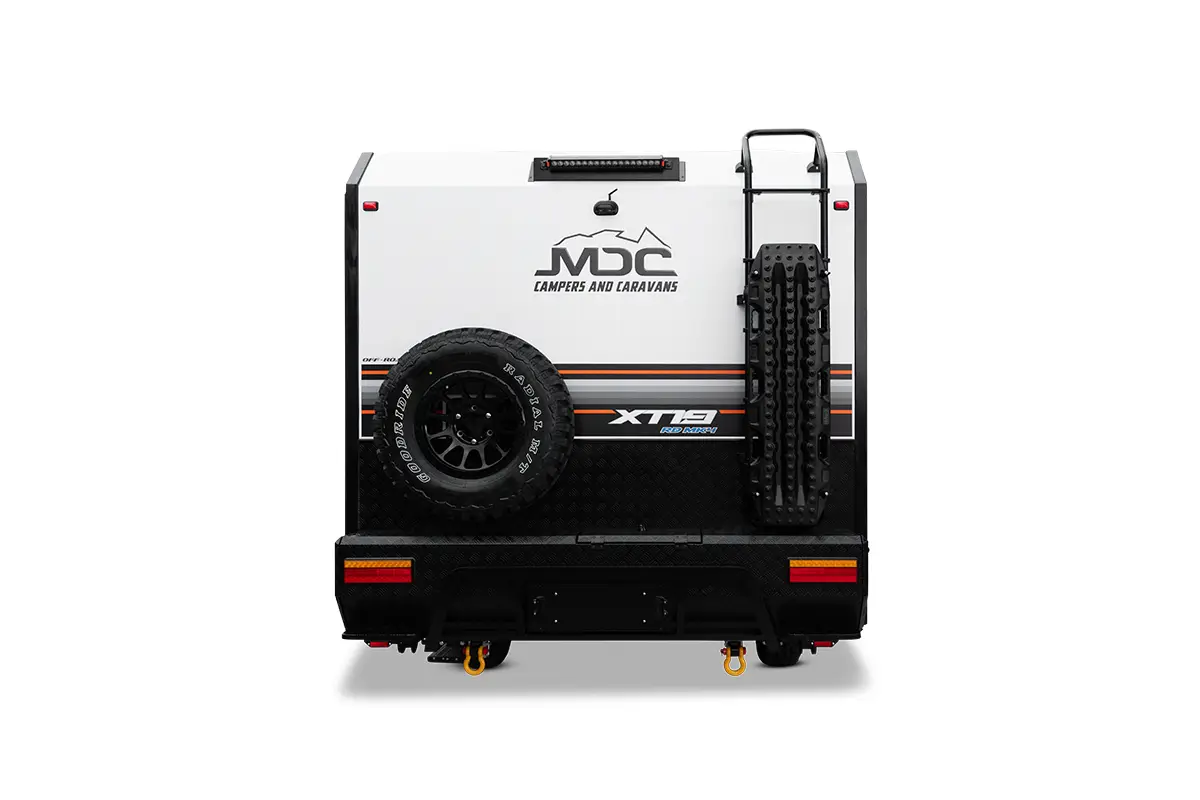

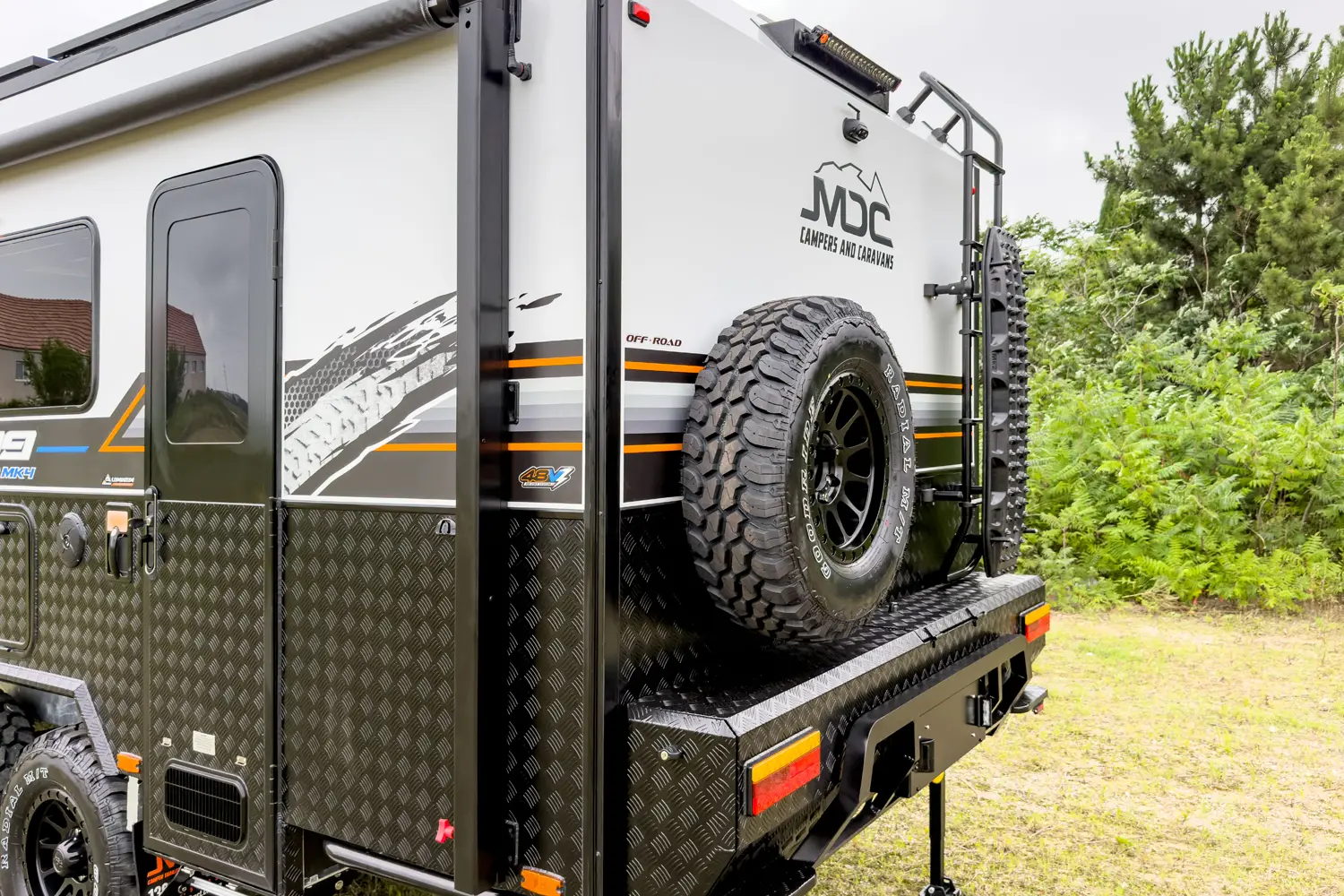

♦ Rear-mounted service ladder
♦ 12V LED lighting with yellow bug light function (external)
♦ 12V LED underbody strip lighting (underbody)
♦ Picnic table
♦ Wireless rear view camera with monitor
♦ 2 x ladder-mounted MAXTRAX MKII recovery tracks

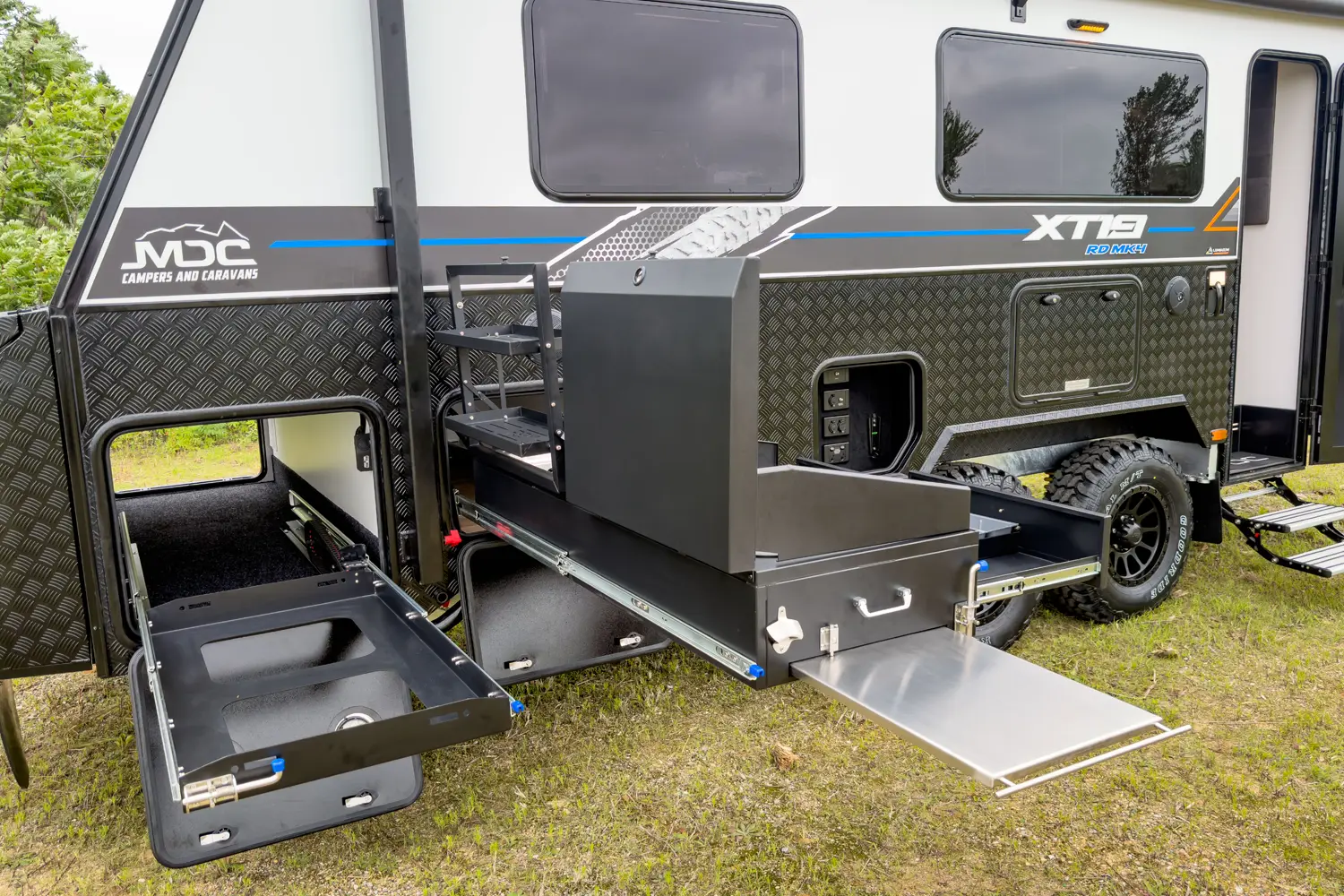

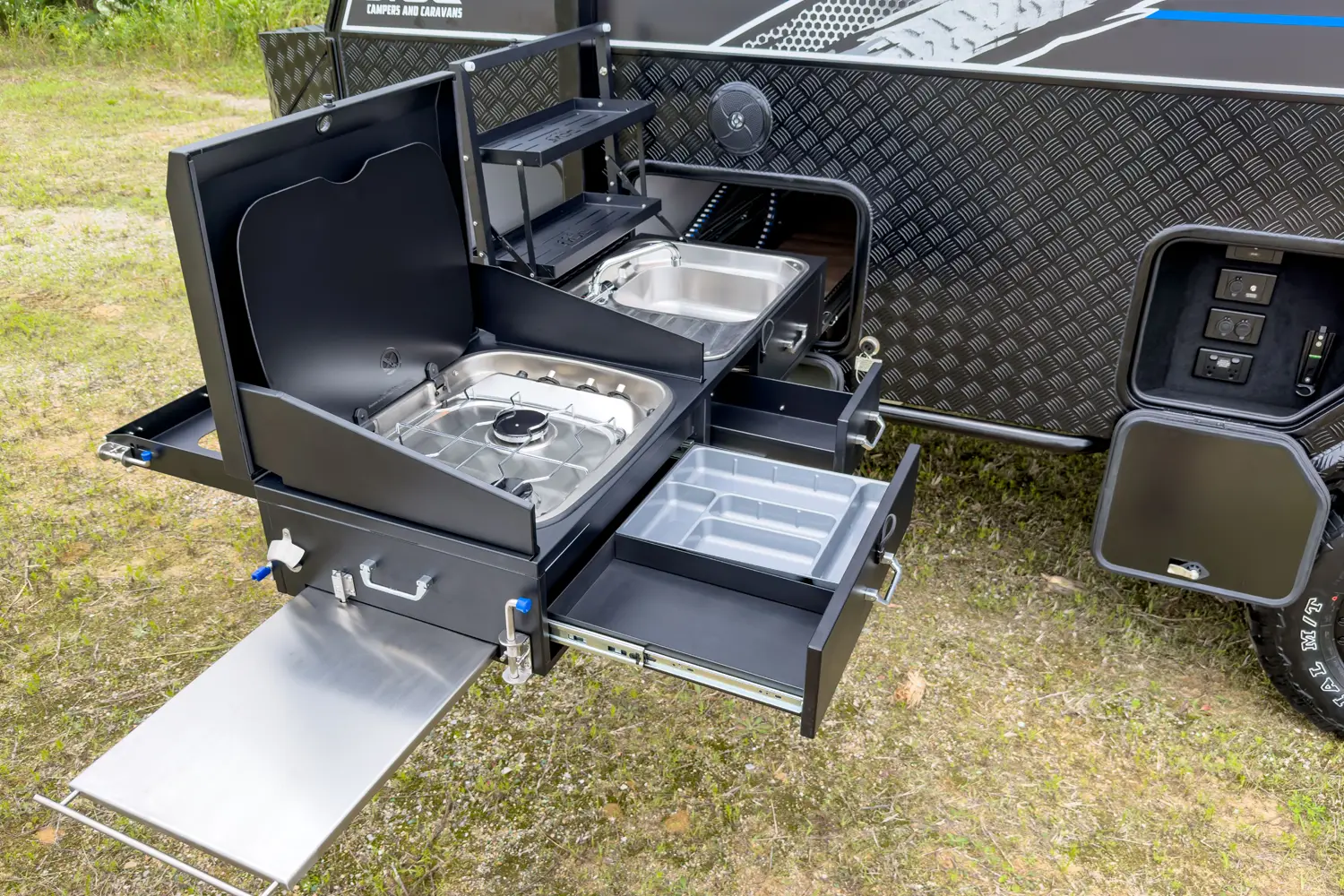

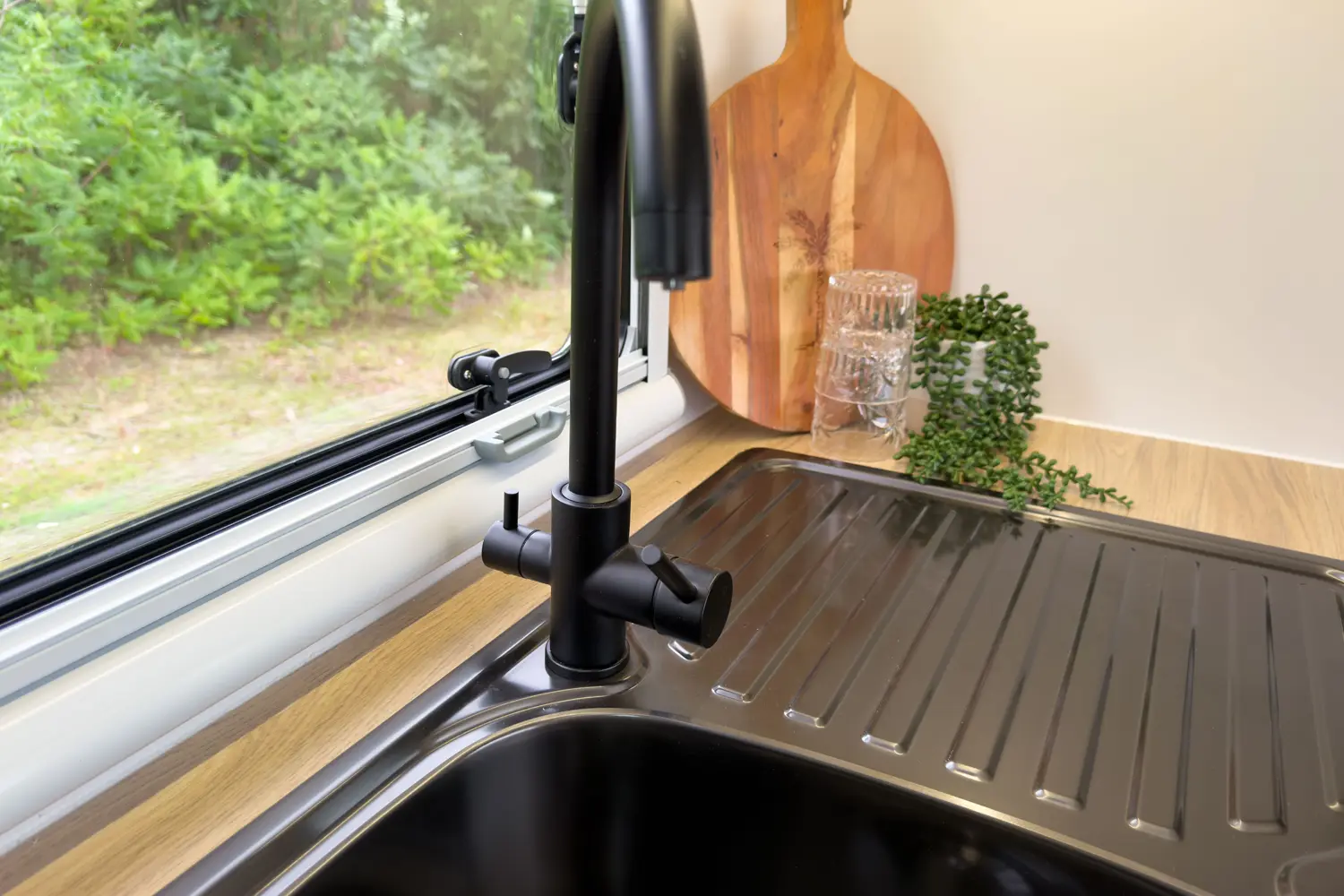

♦ Slide-out external kitchen with Thetford 3-burner gas cooktop and sink with hot and cold water supply.

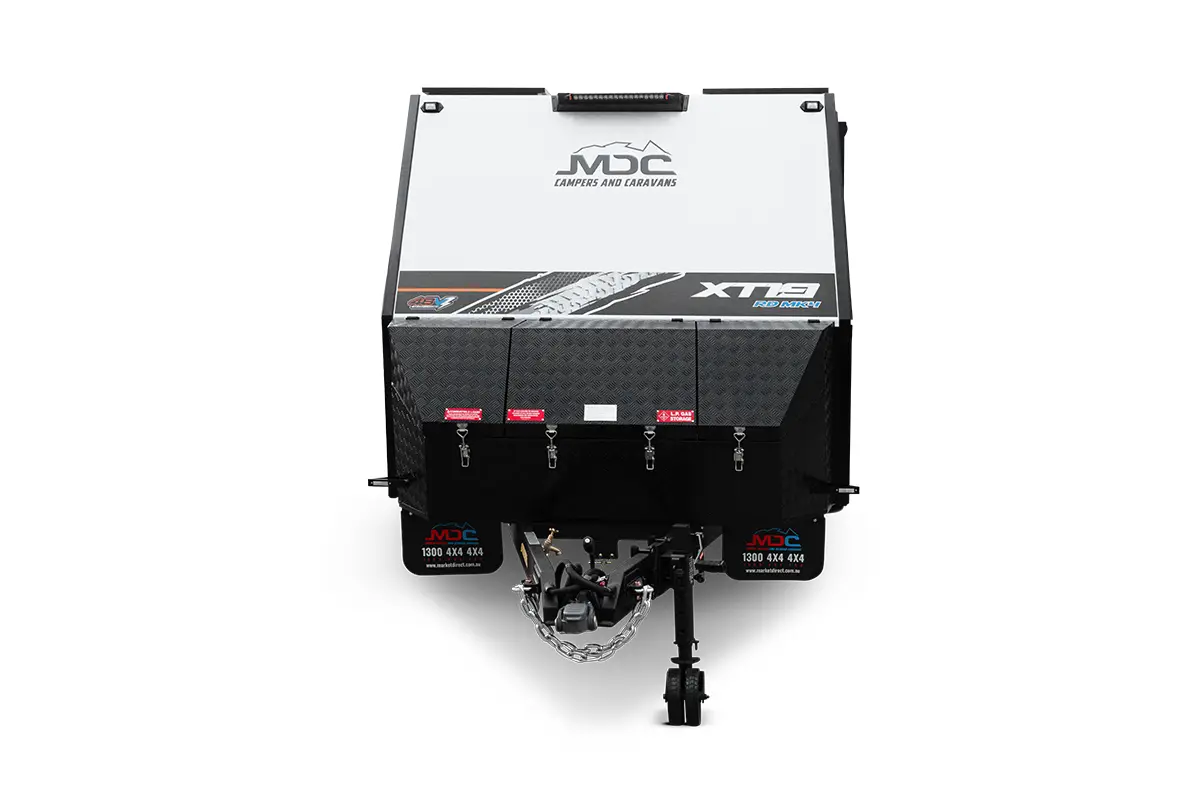

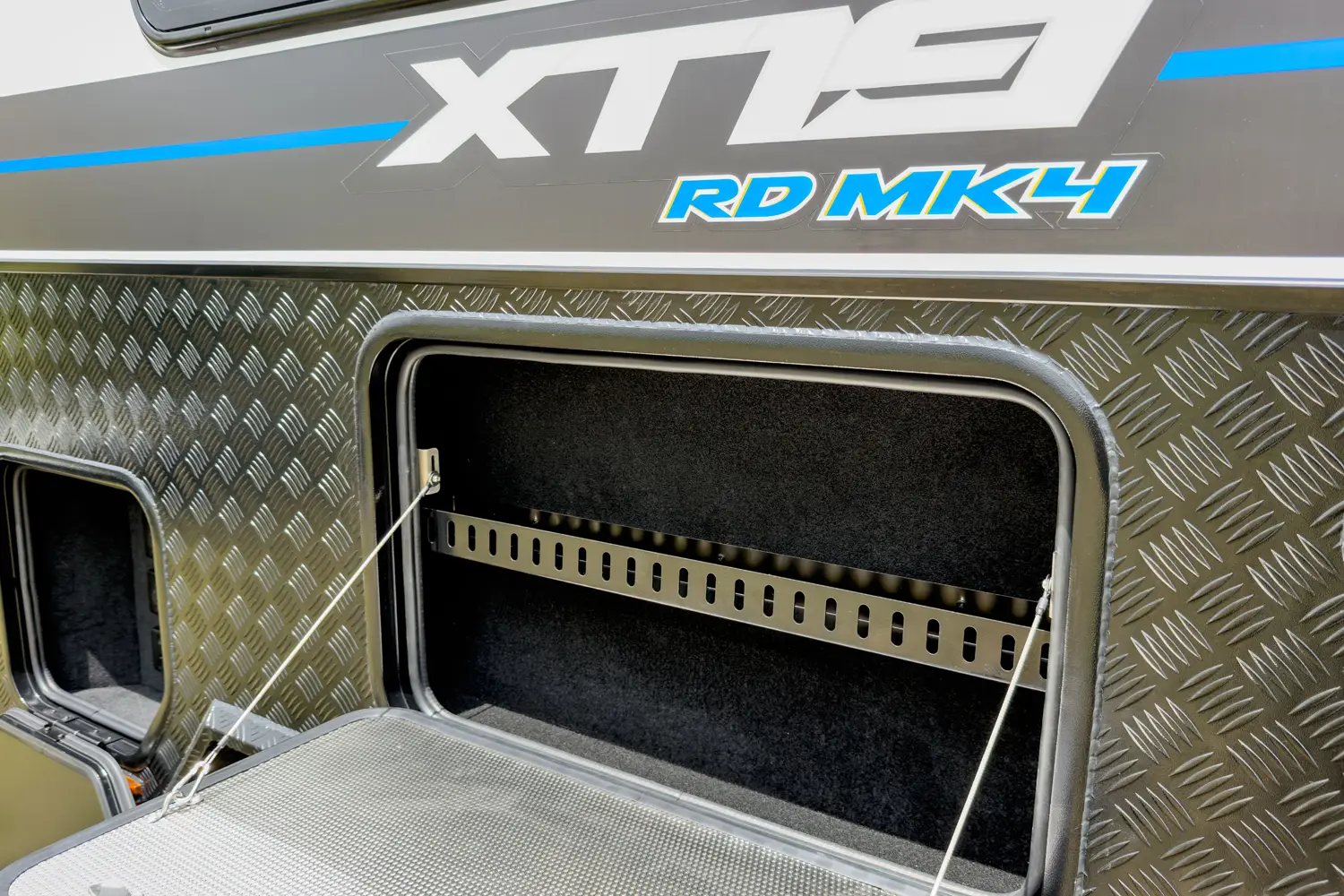

♦ Multi-compartment front storage box & rear storage bar
♦ Through-wall cable port
♦ 12-pin flat trailer plug
♦ 2 x 80L fresh water & 1 x 80L grey water
INTERIOR

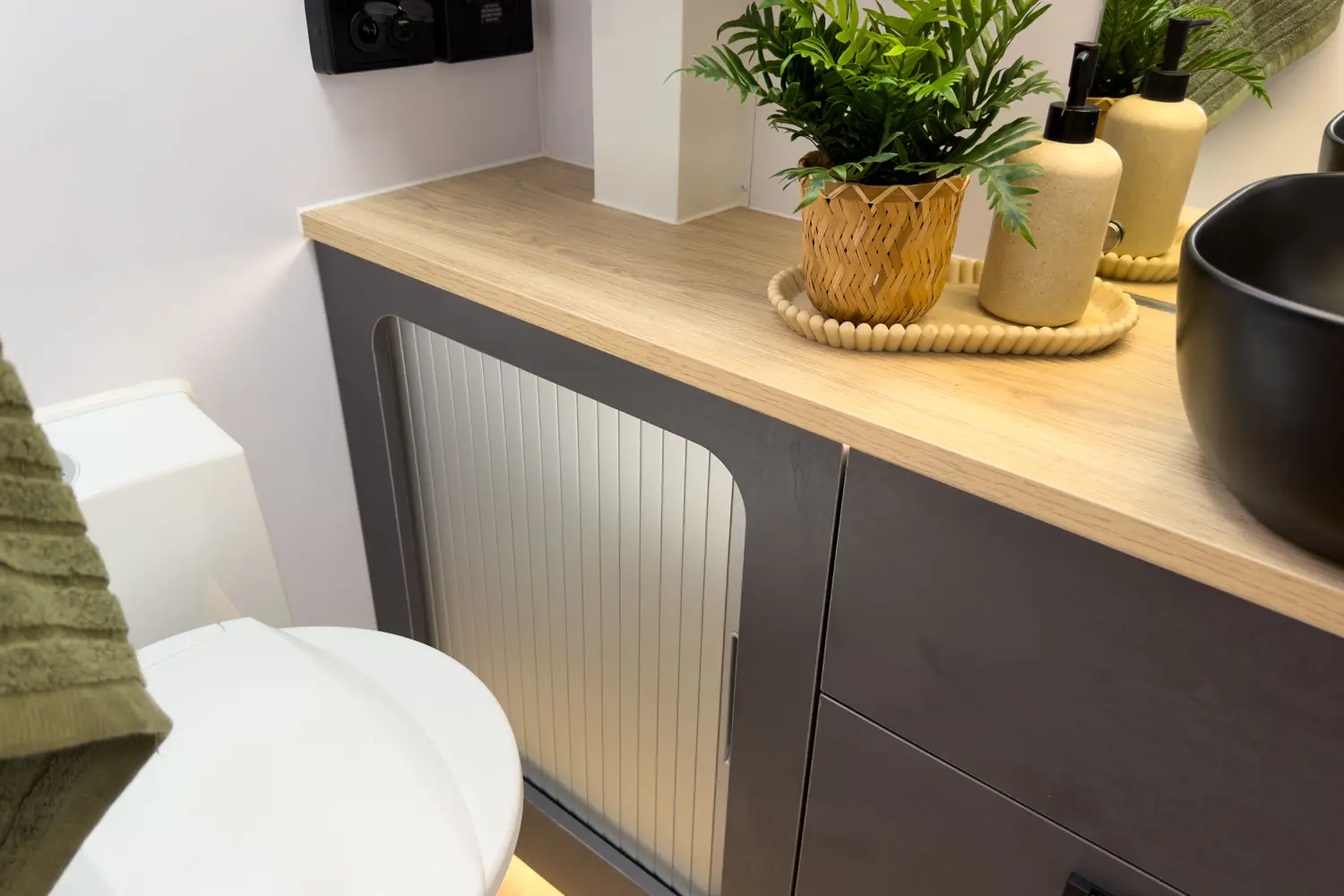

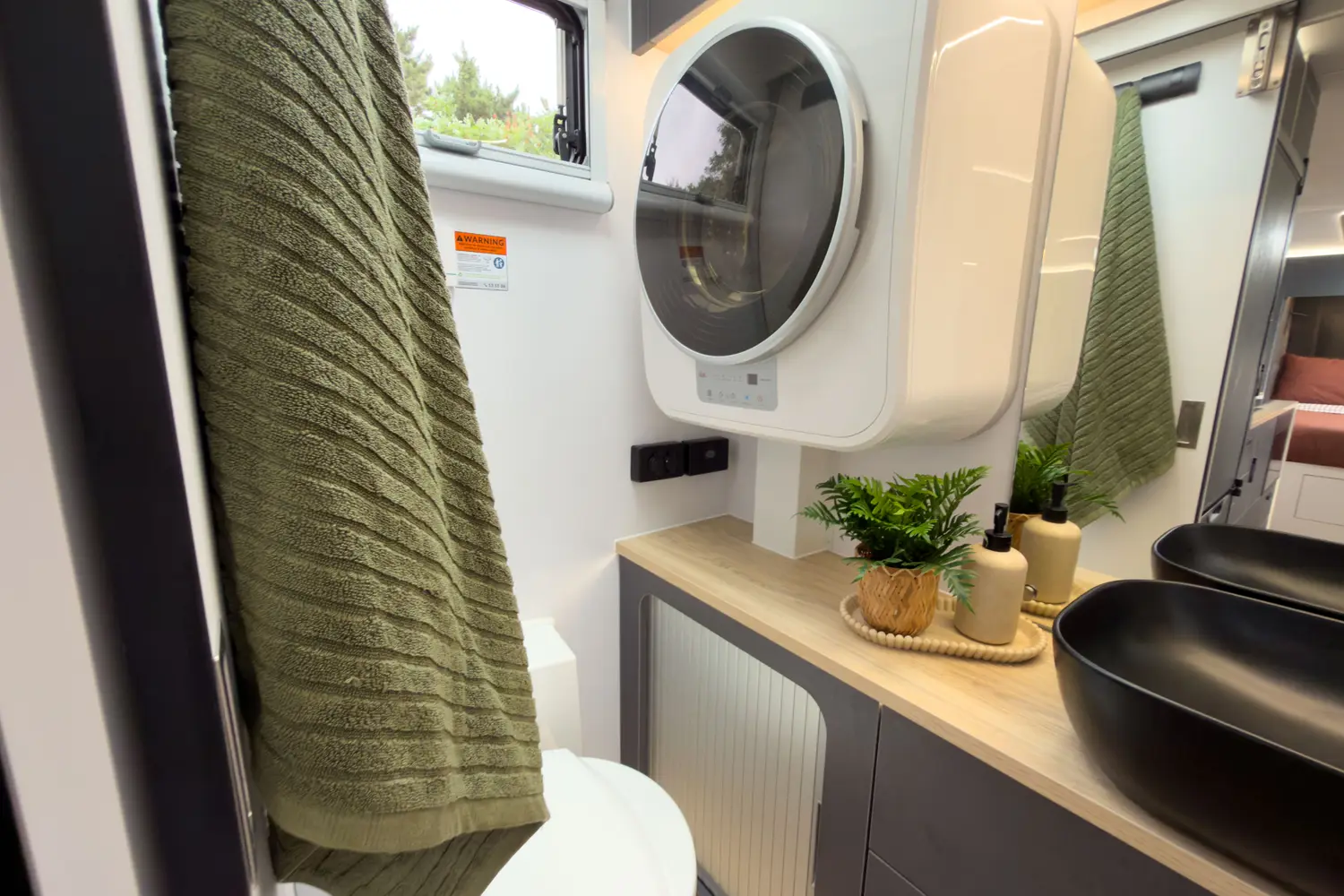

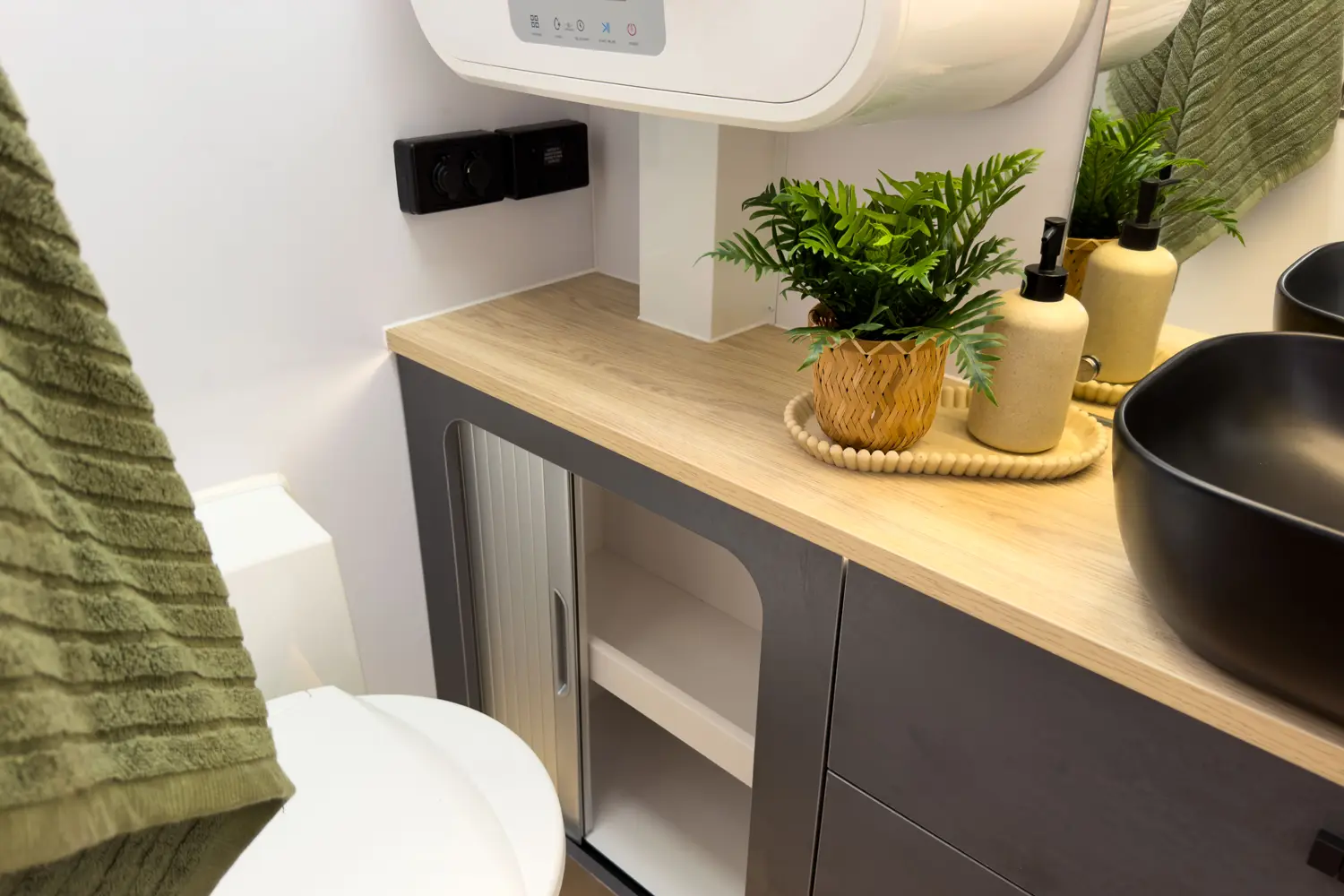

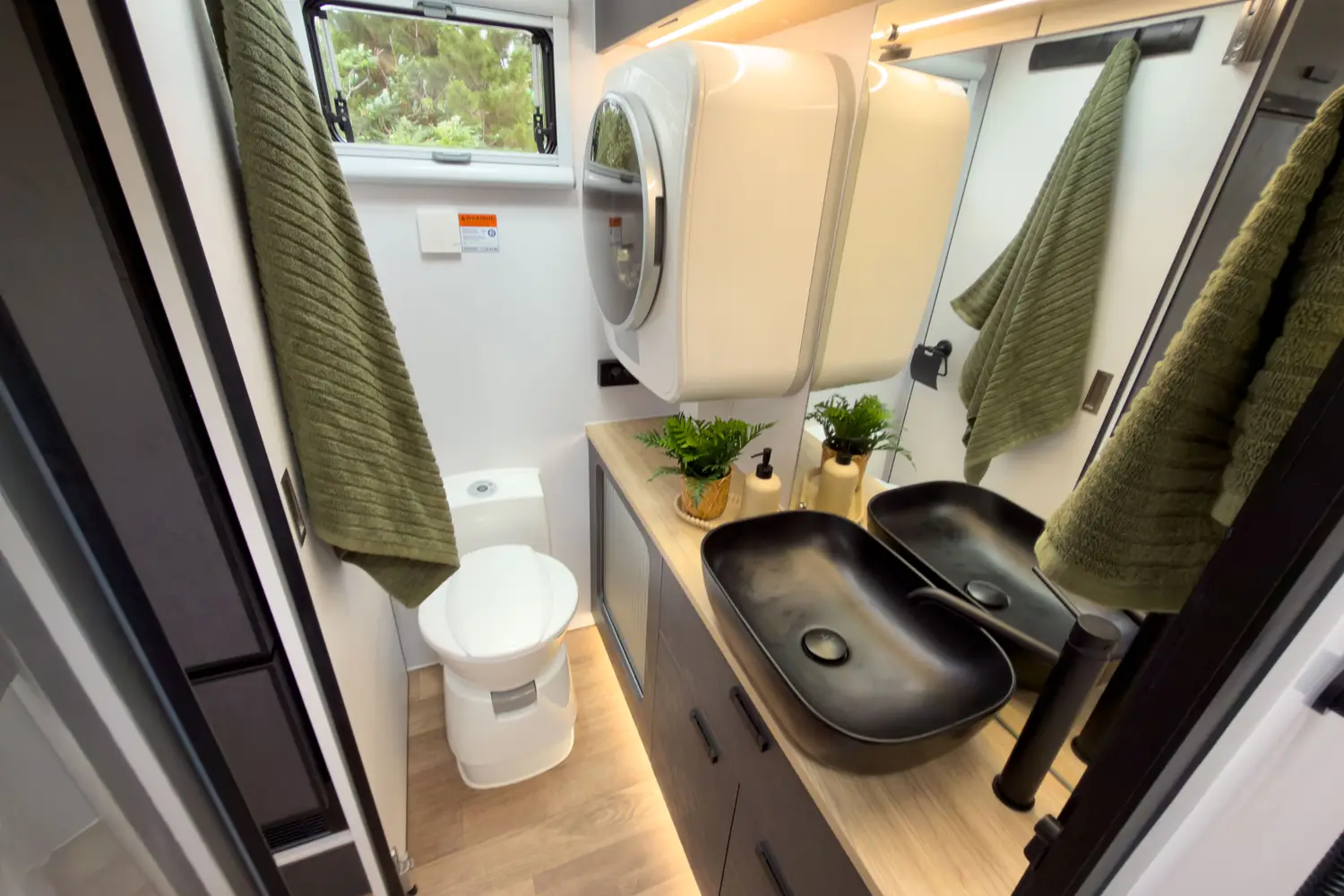

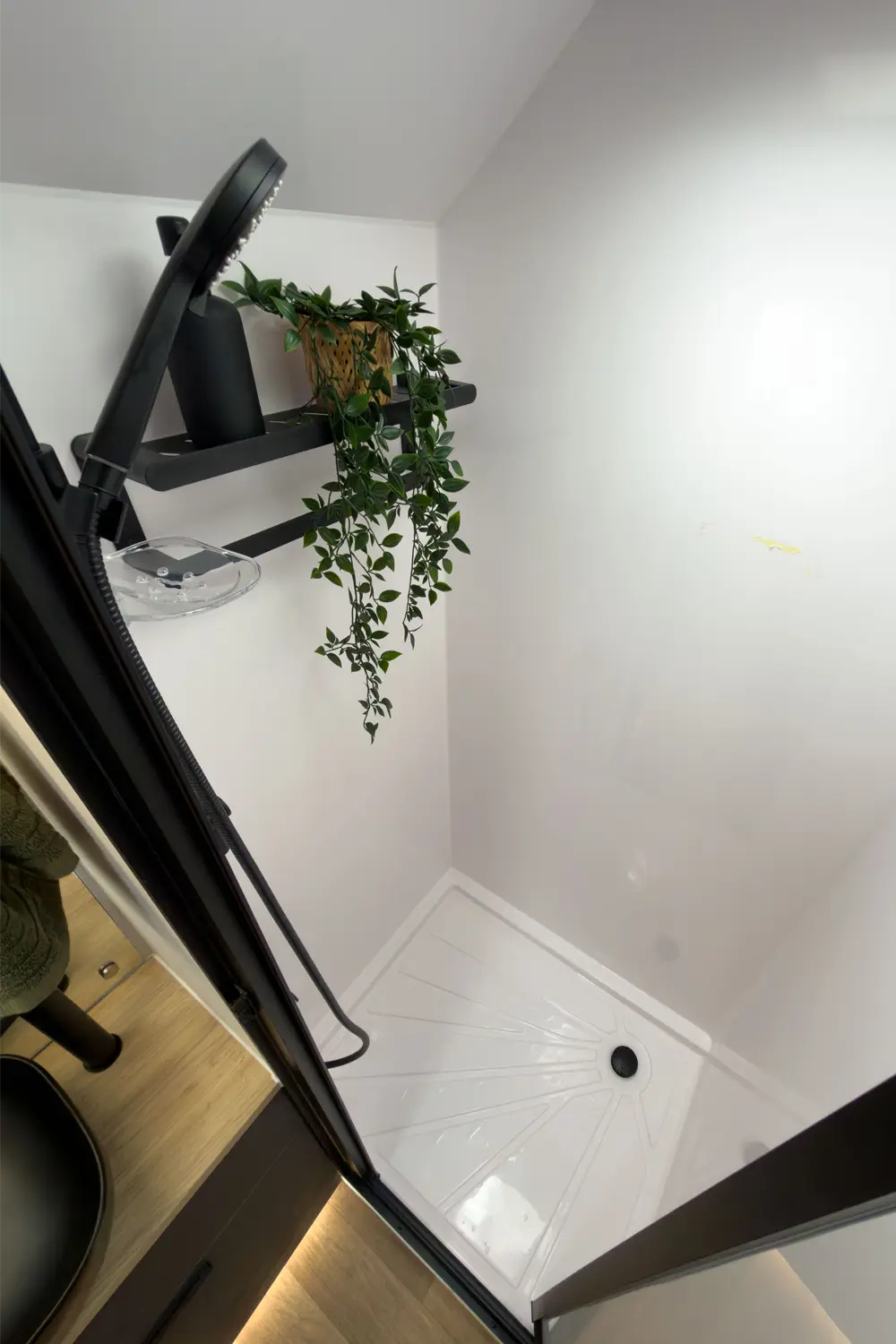

♦ Internal ensuite with Dometic cassette toilet & separate shower

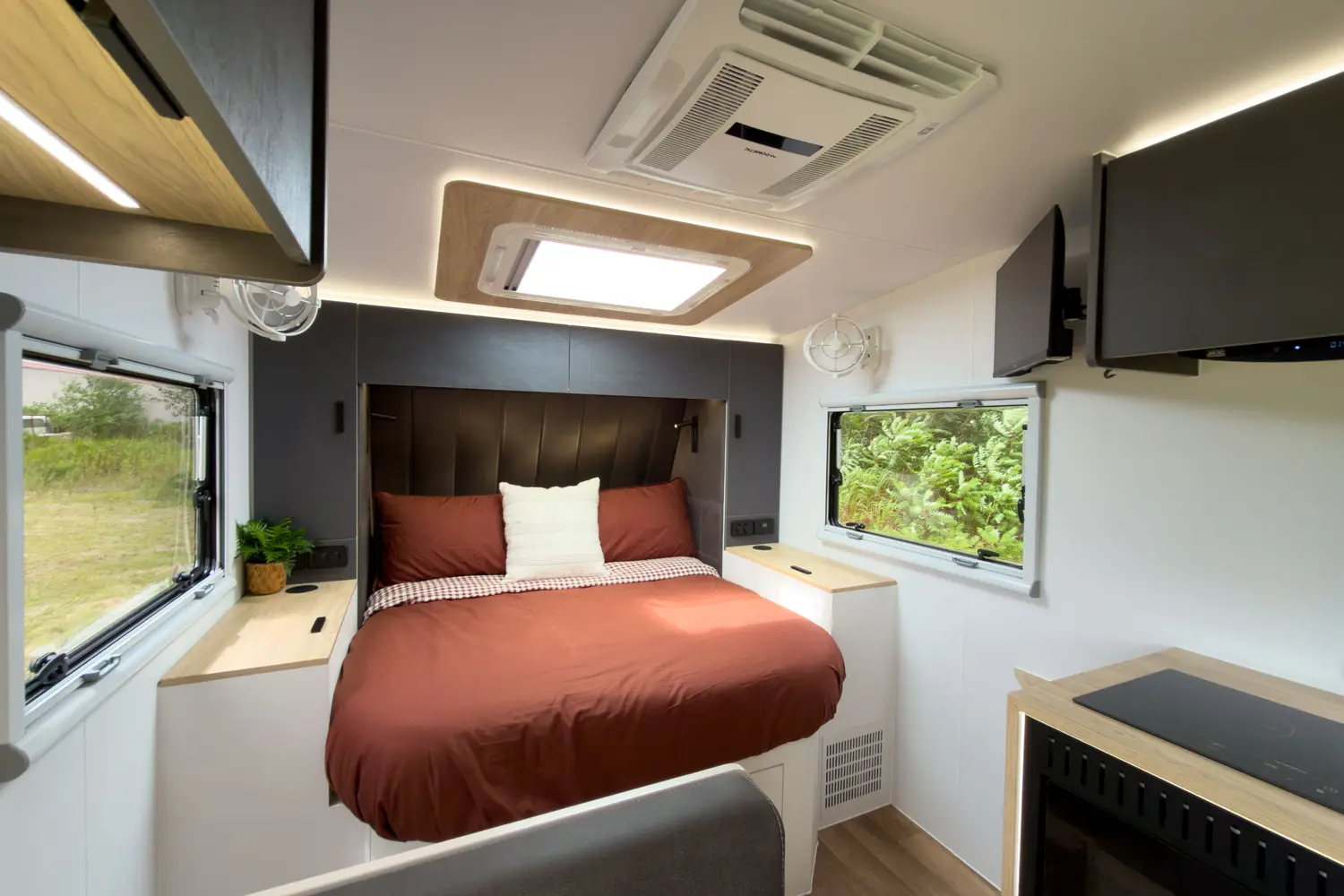

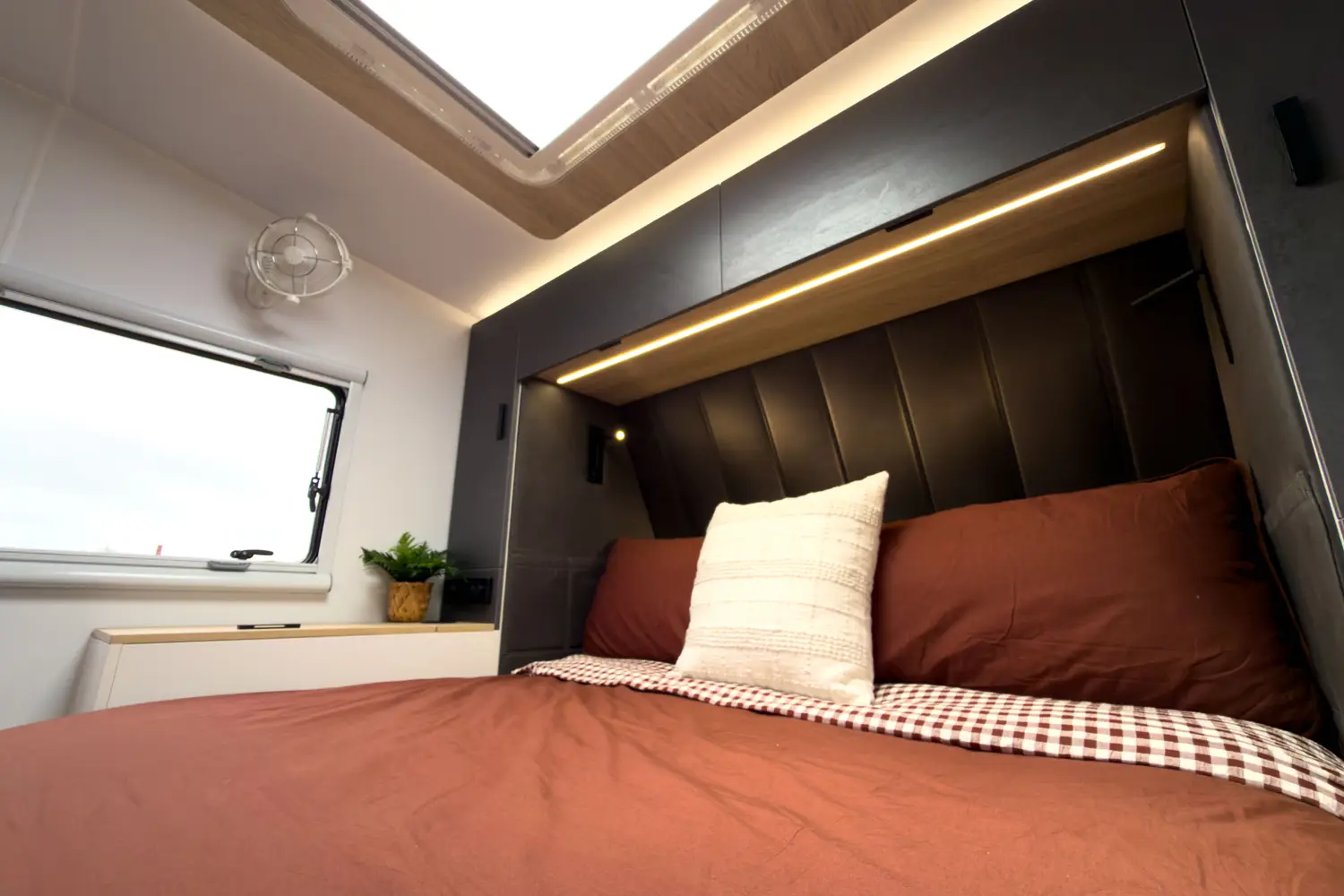

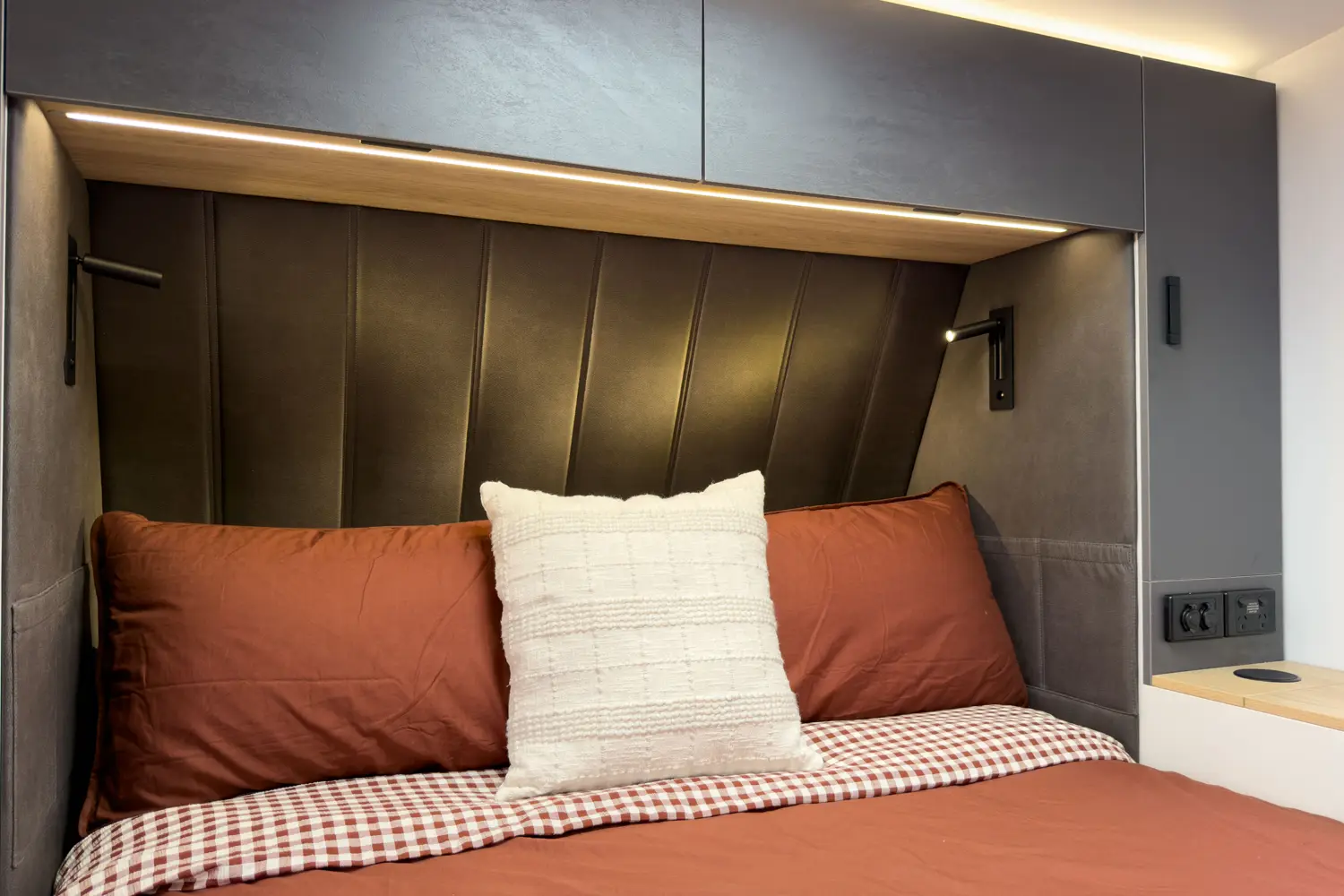

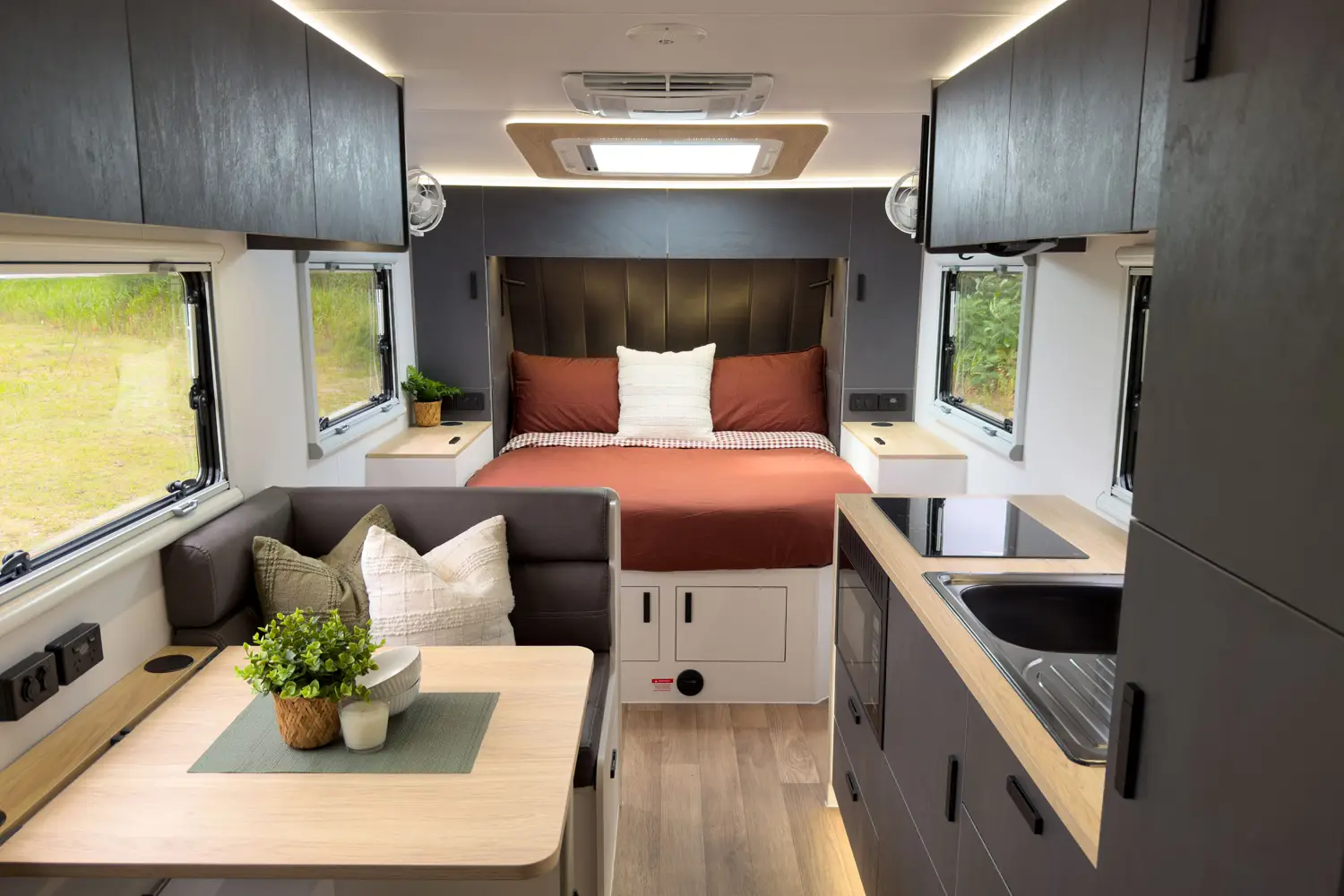

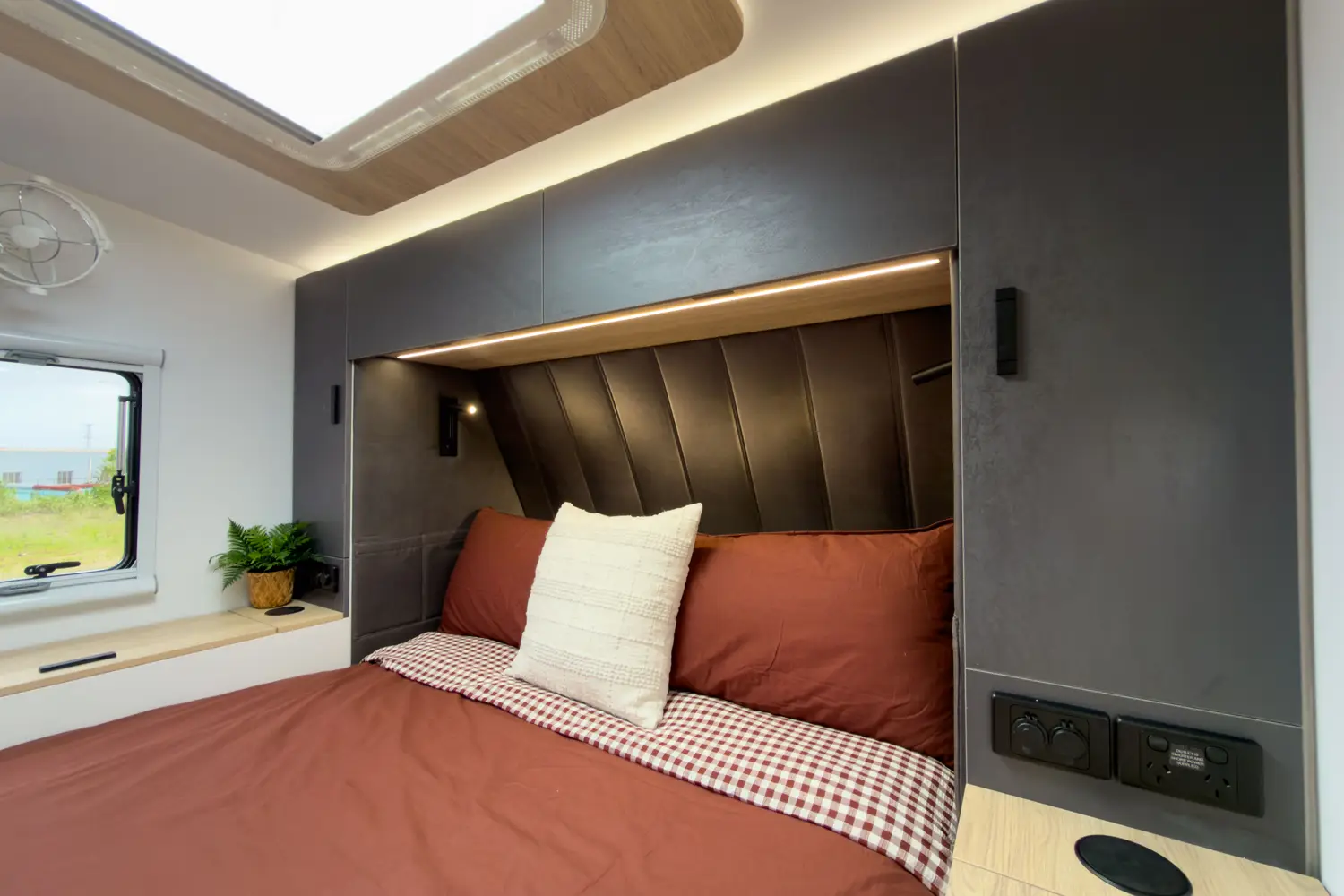

♦ 1 x Queen size island bed
♦ 2000mm L x 1450mm W x 220mm H (mattress size)

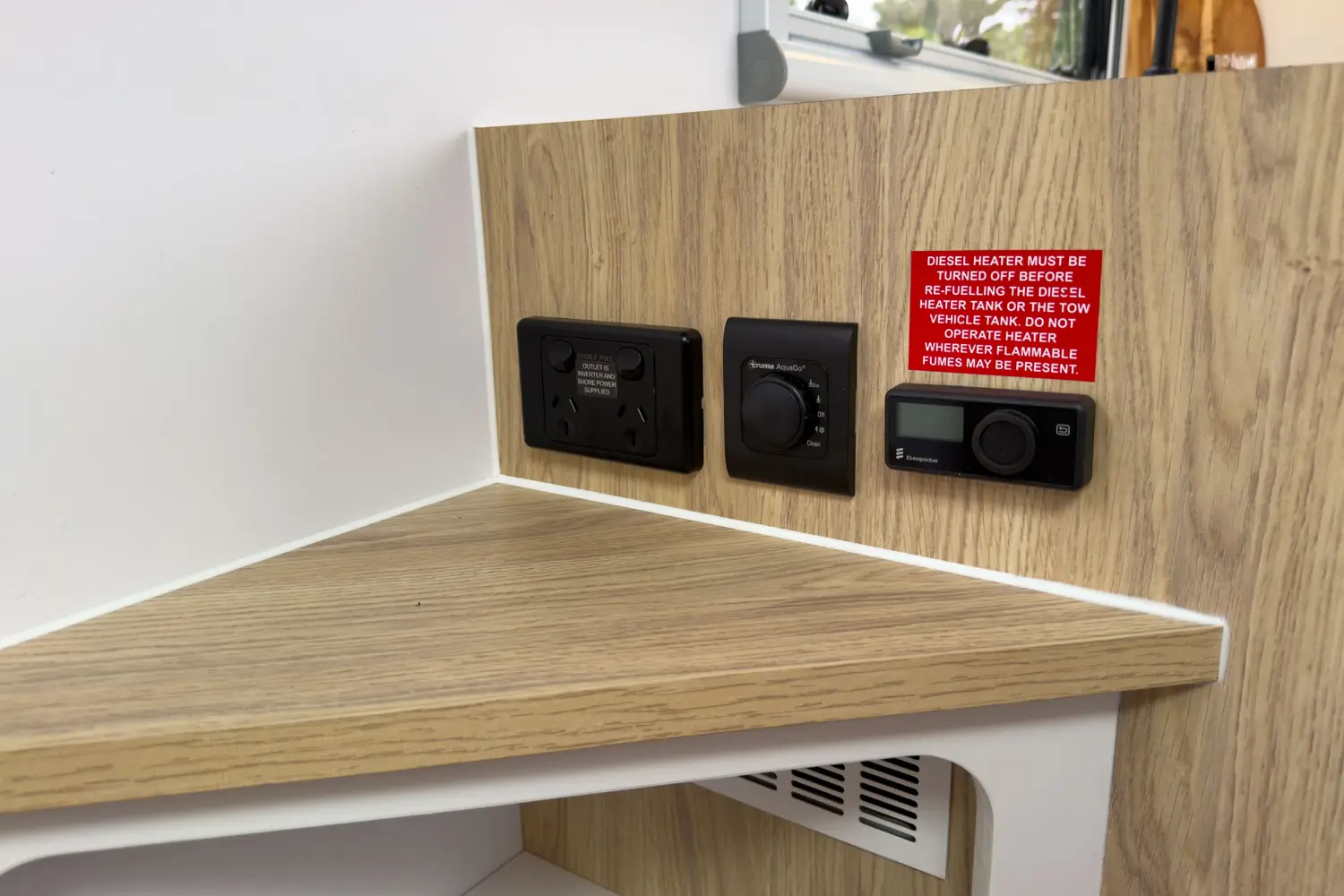

♦ Eberspächer D2L Airtronic AS3 2.2kW diesel air heater
♦ Outback slate cabinetry, oak benchtops, stone wash grey premium leatherette upholstery, and matte black fixtures

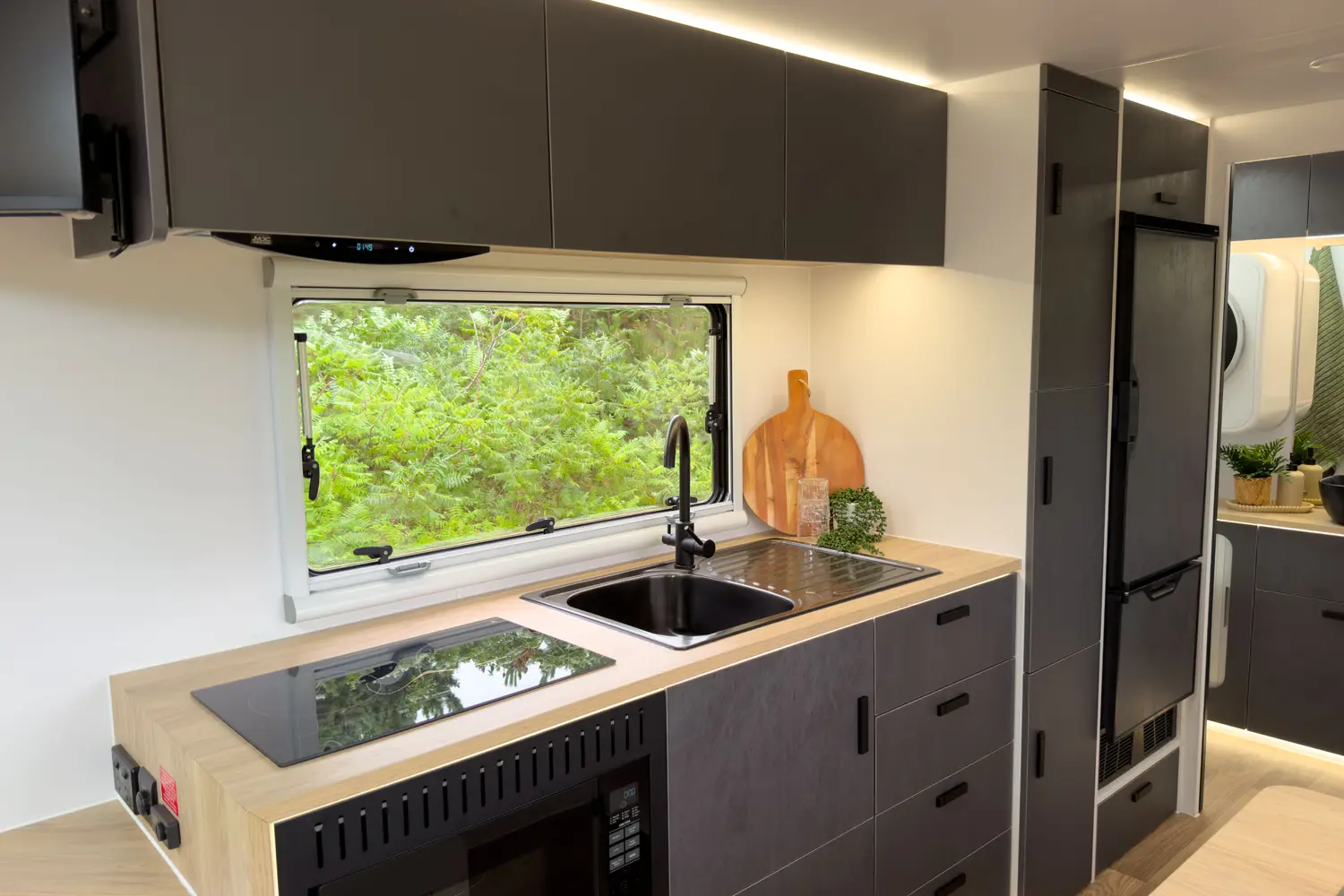

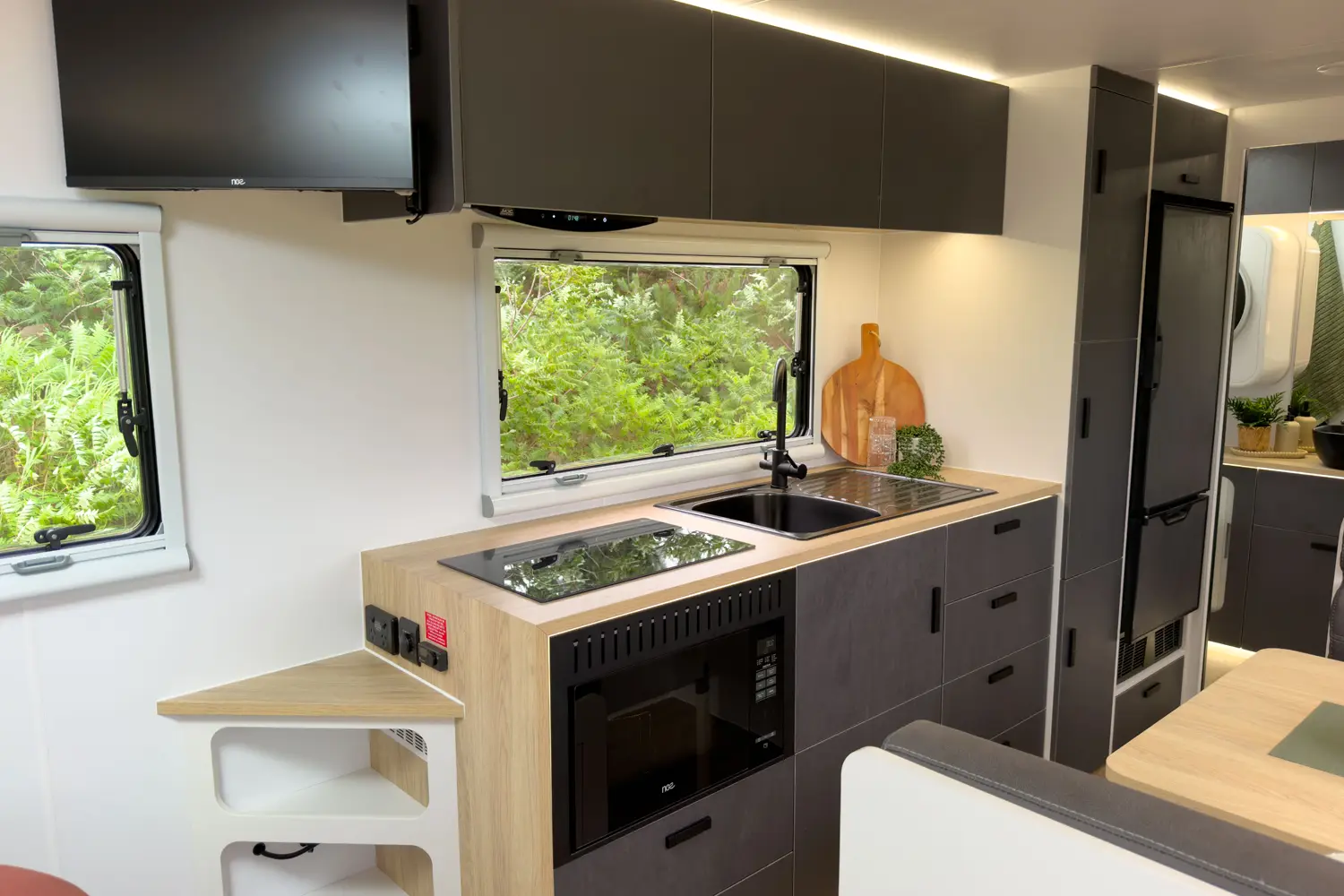

♦ Dometic 2-zone induction cooktop

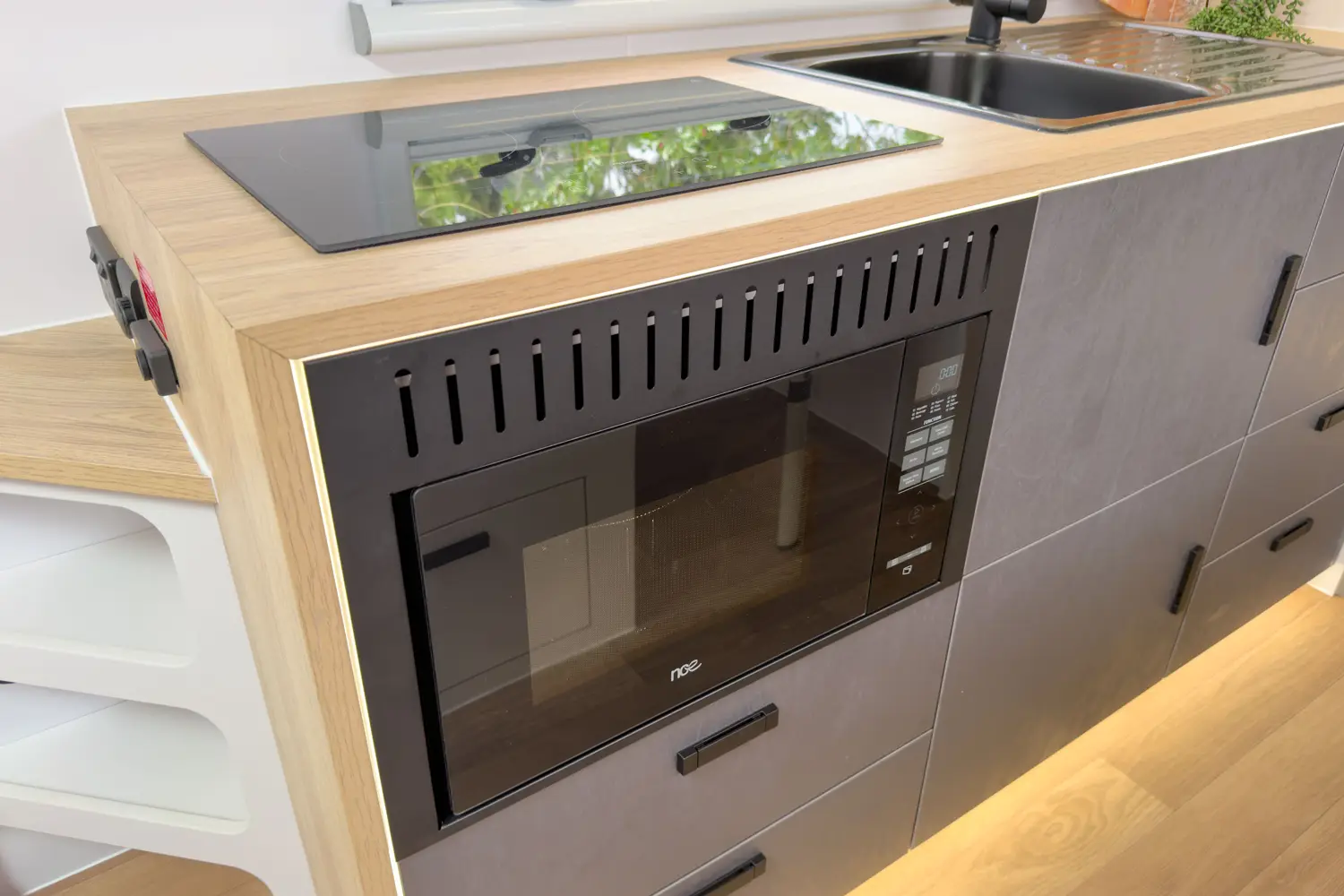

♦ NCE 29L 4 in 1 convection microwave (air fryer, grill, oven & microwave)
♦ 12V LED mood lighting

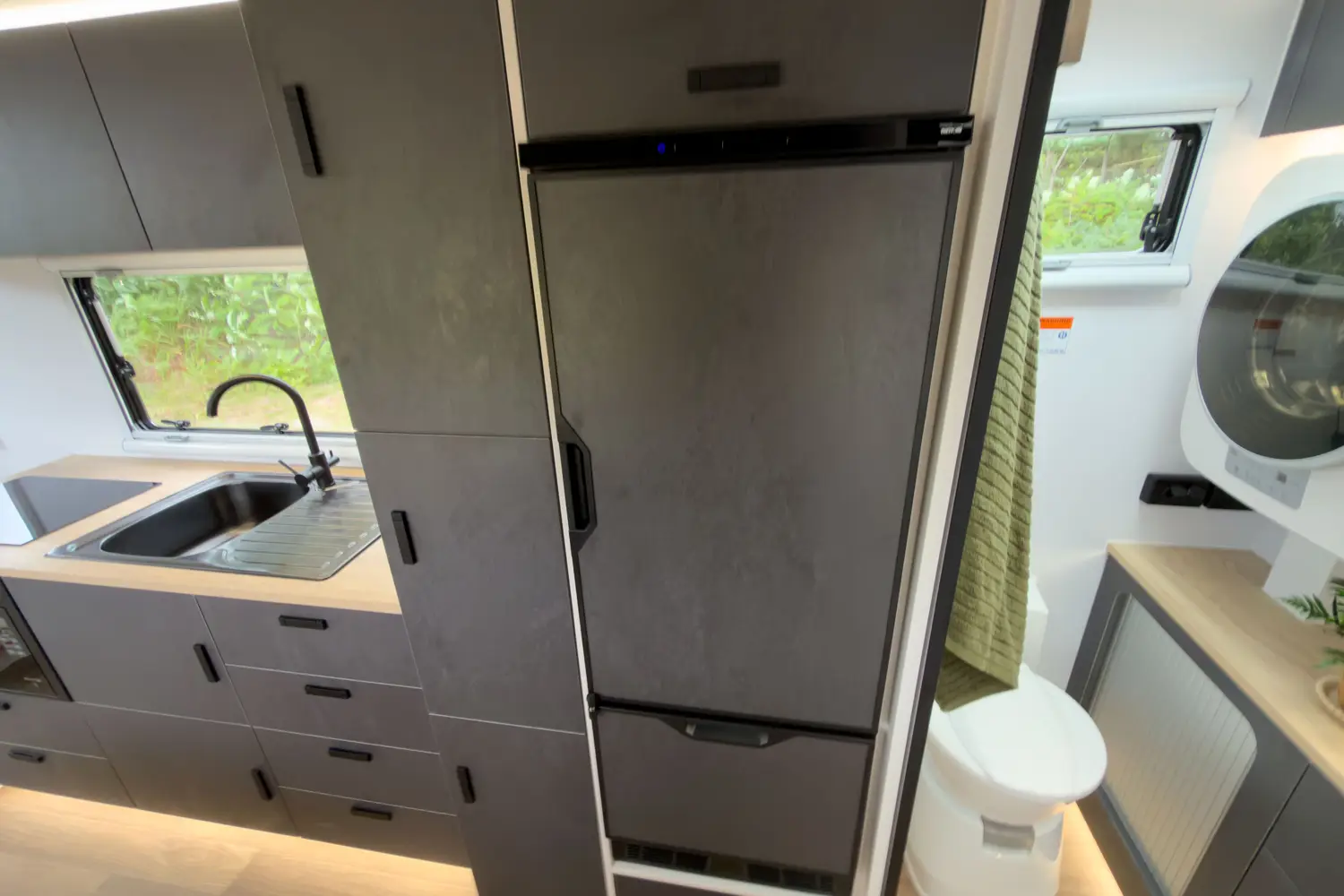

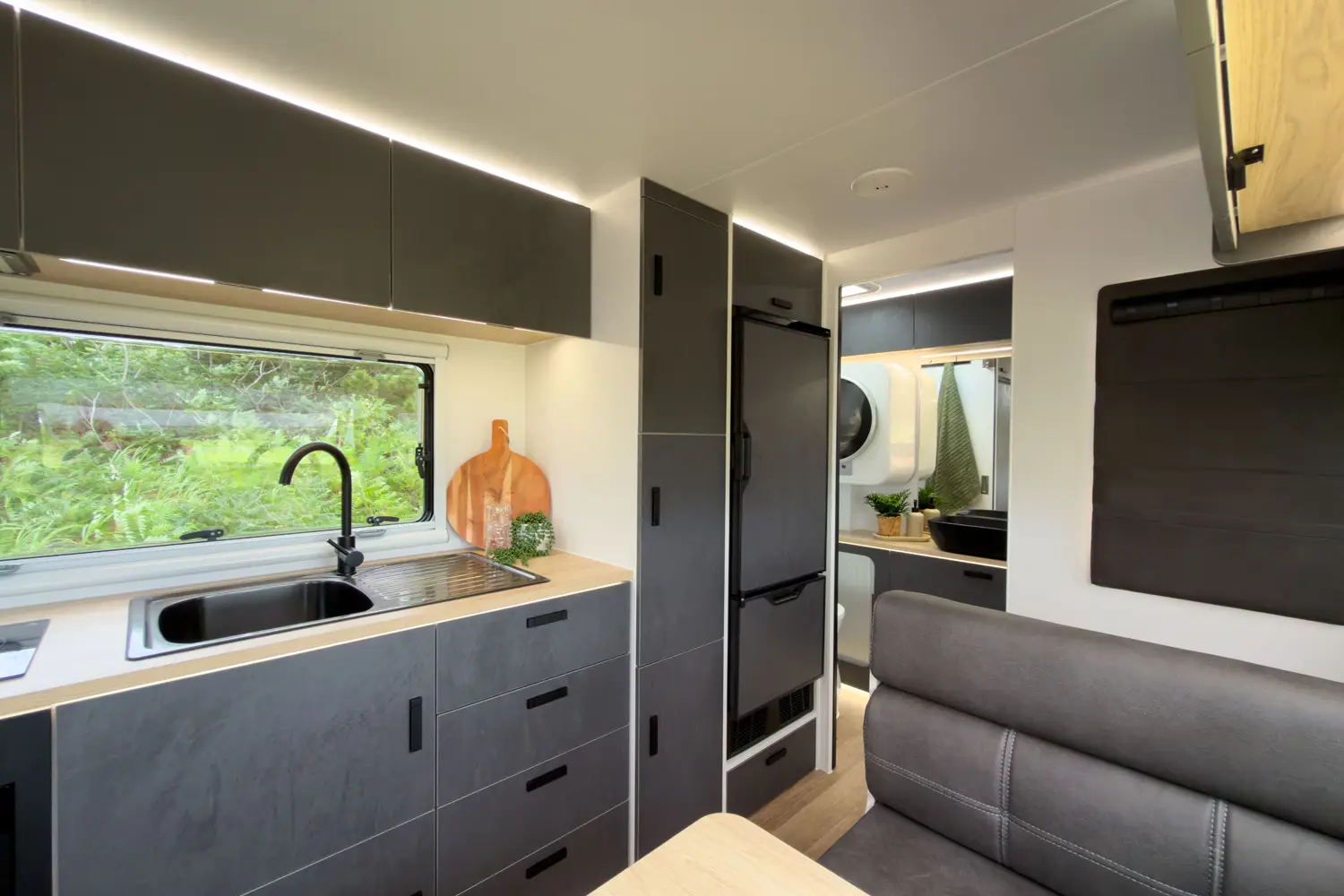

♦ Thetford T2208 221L 12V compressor fridge

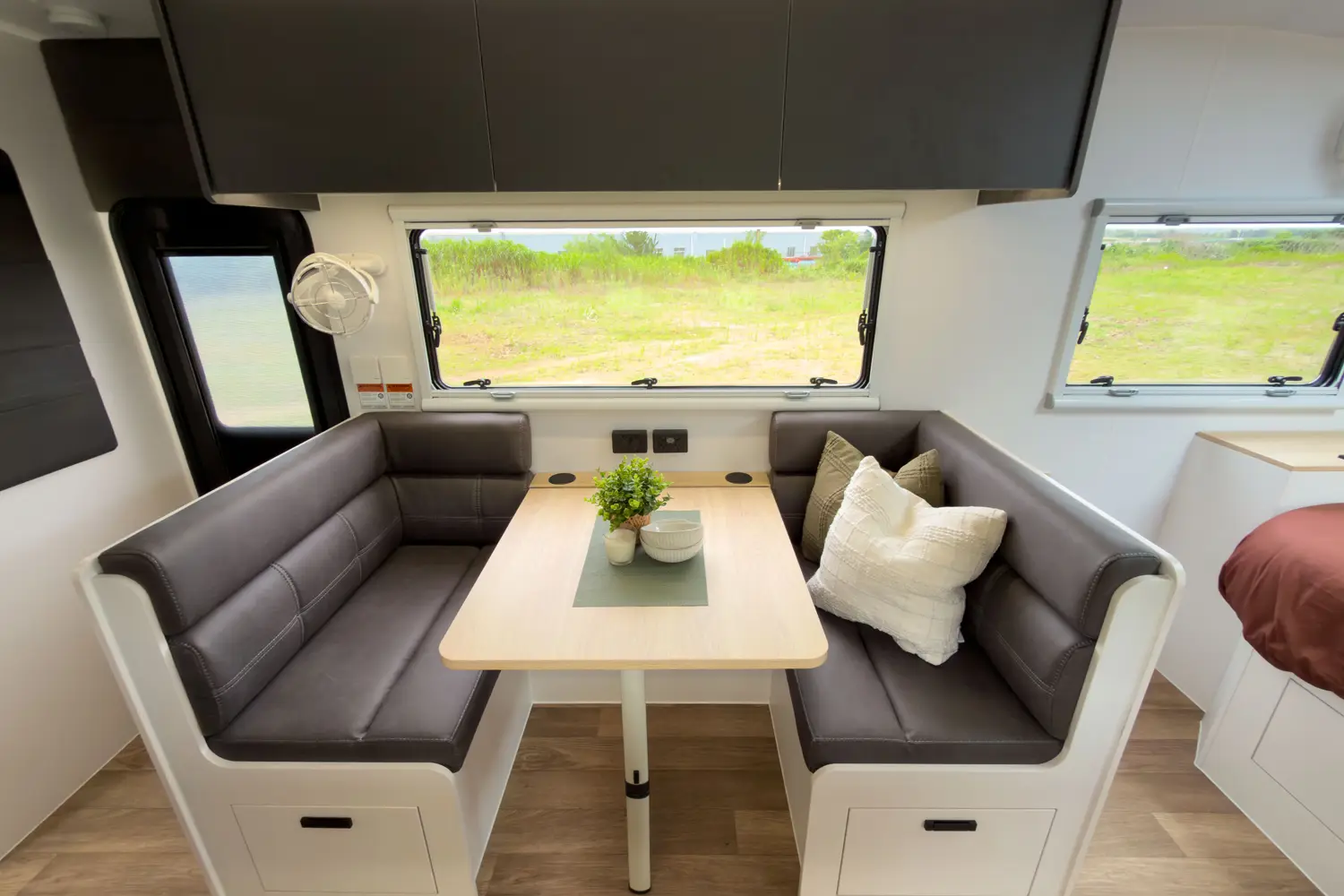

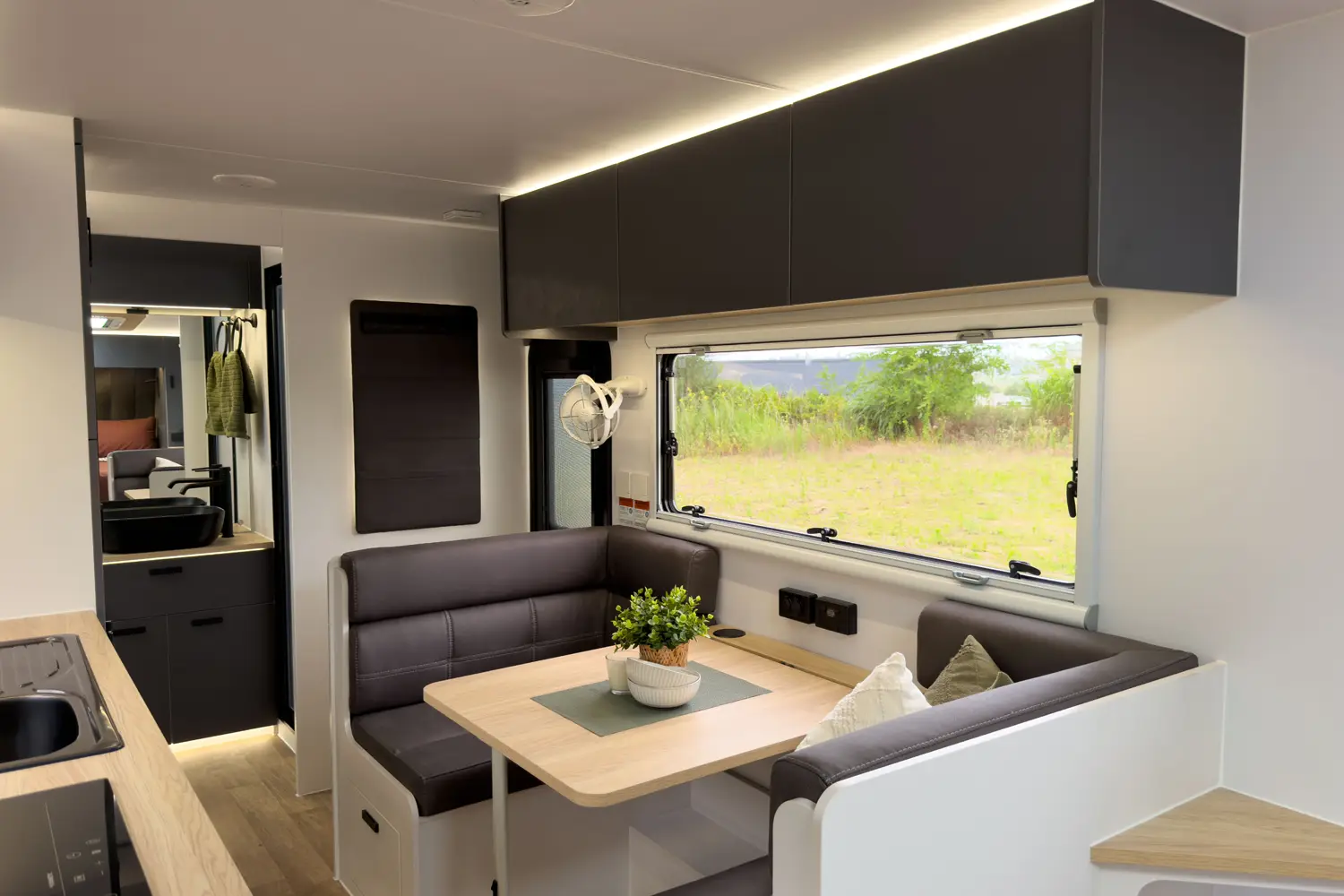

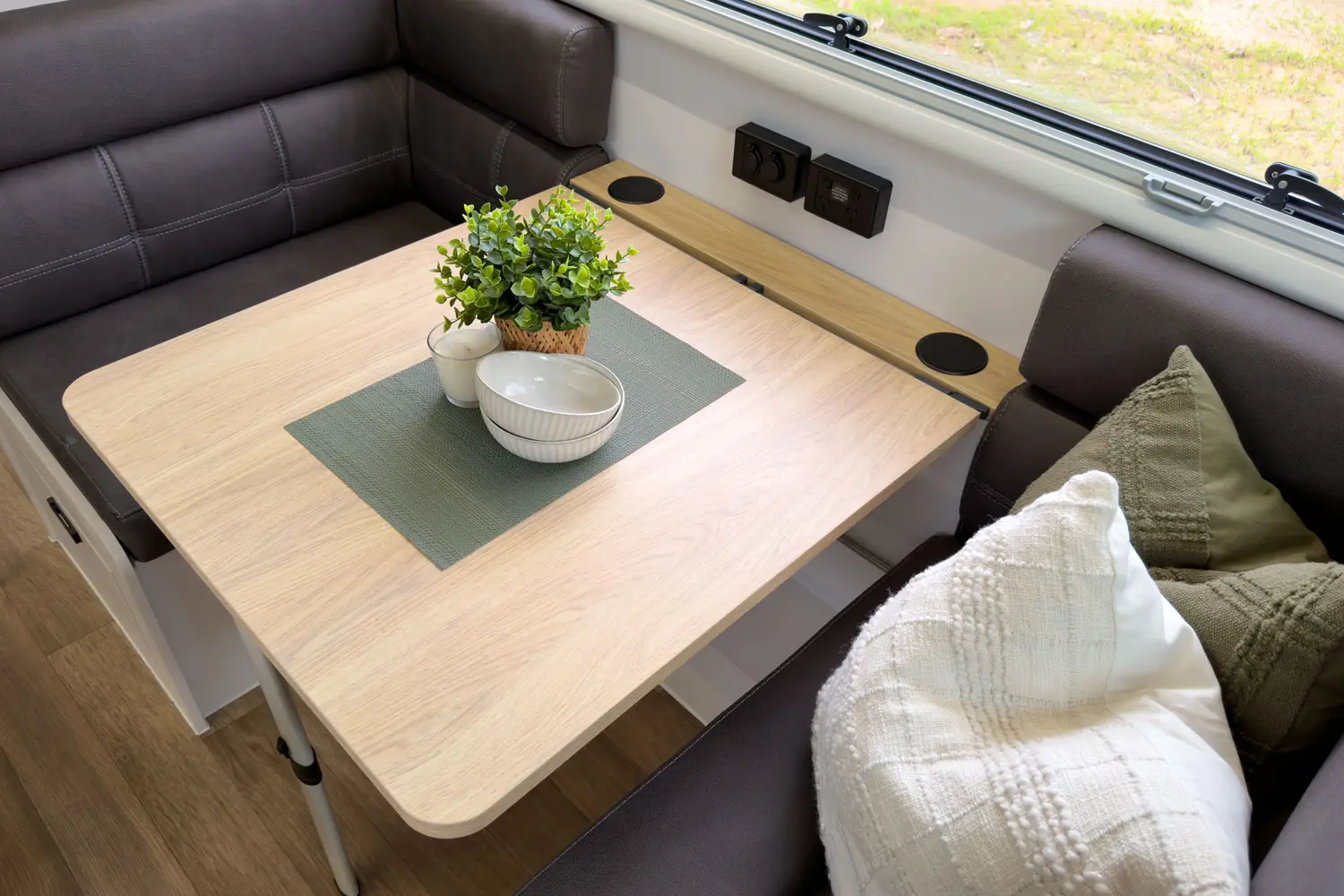

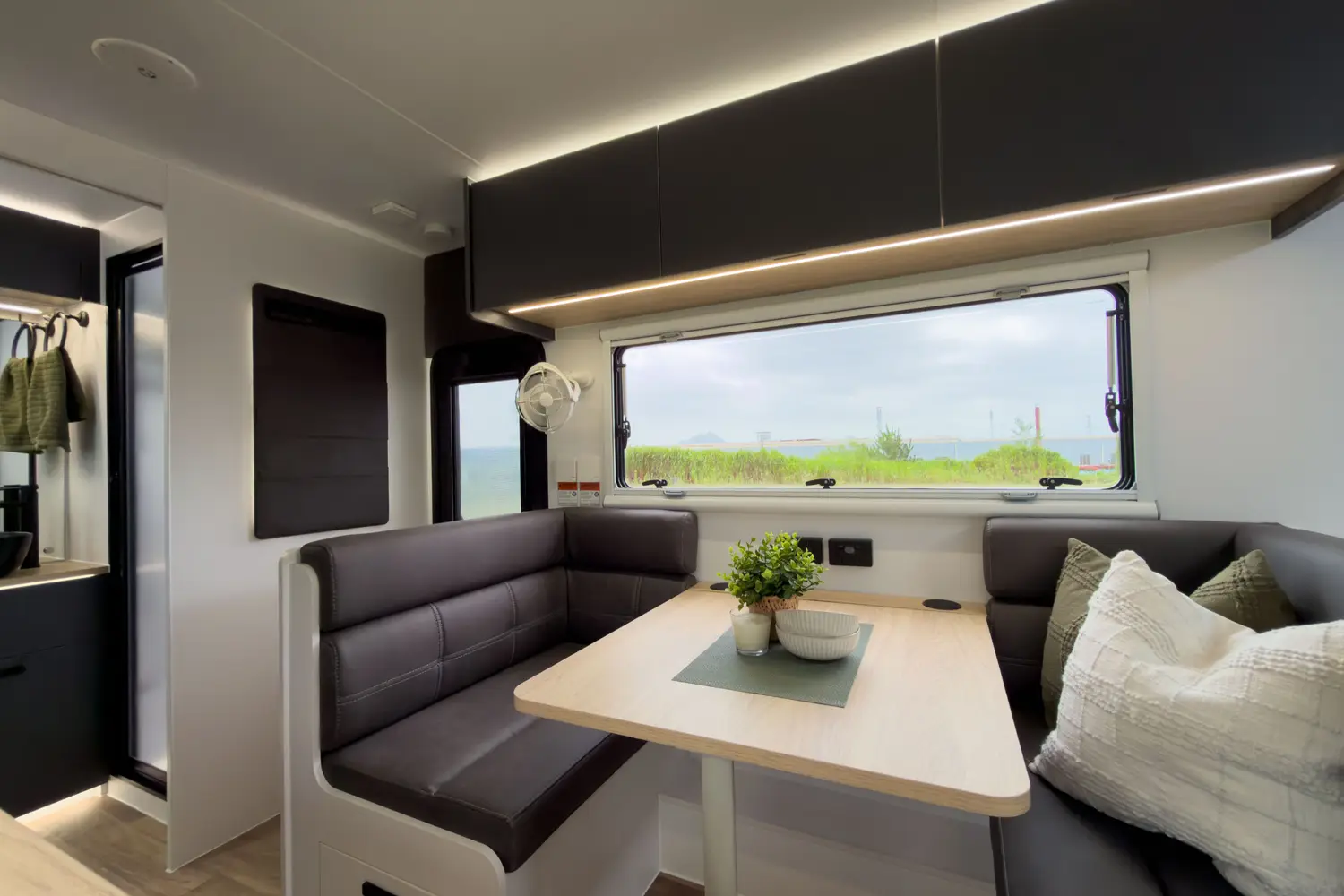

♦ Café dinette
♦ Stereo head unit with internal & external speakers
♦ NCE 24″ Google ready smart TV

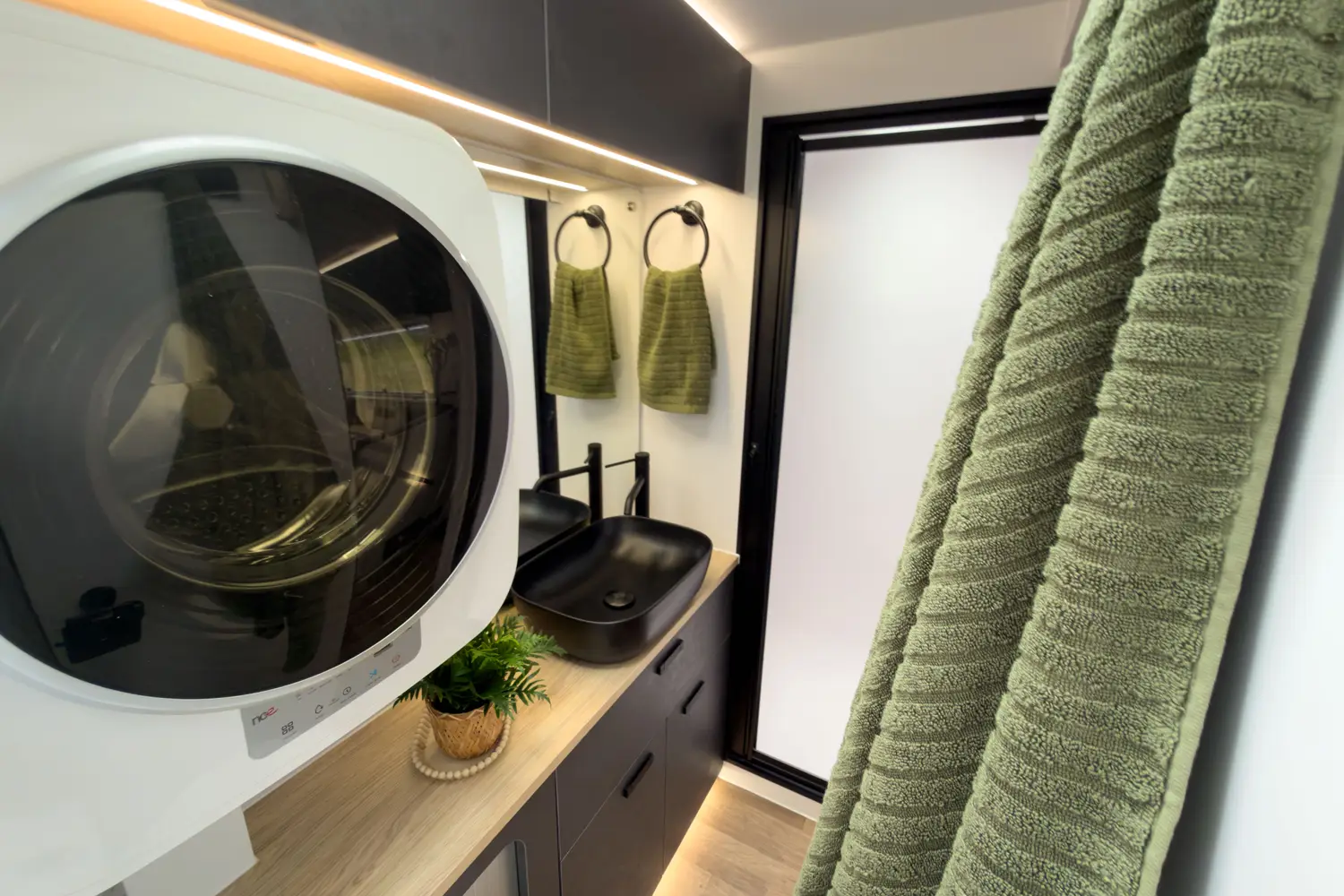

♦ NCE 3kg wall-mounted front loader washing machine
♦ Inline water filter

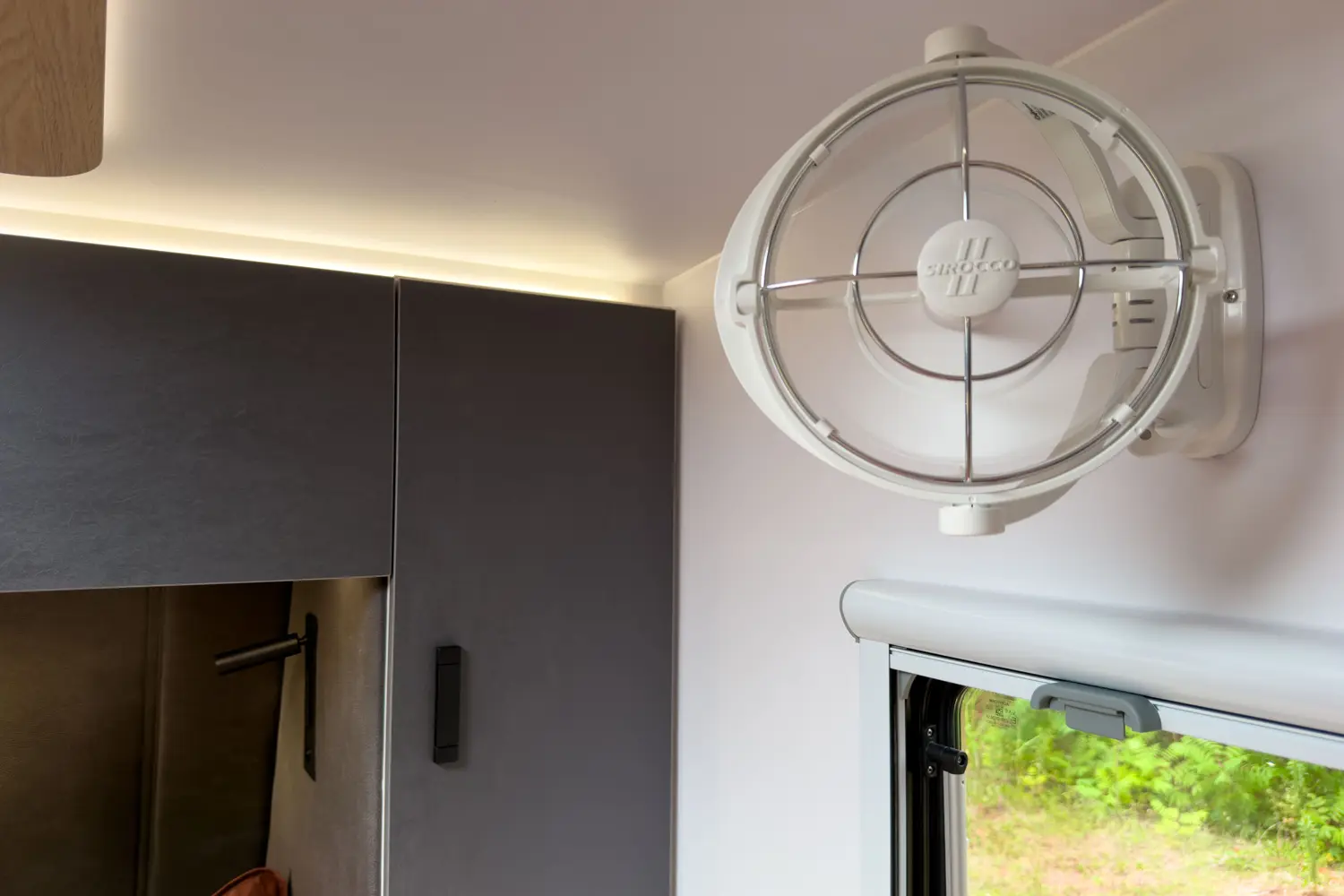

♦ Caframo Sirocco II
POWER MANAGEMENT
♦ 1400W of rooftop solar

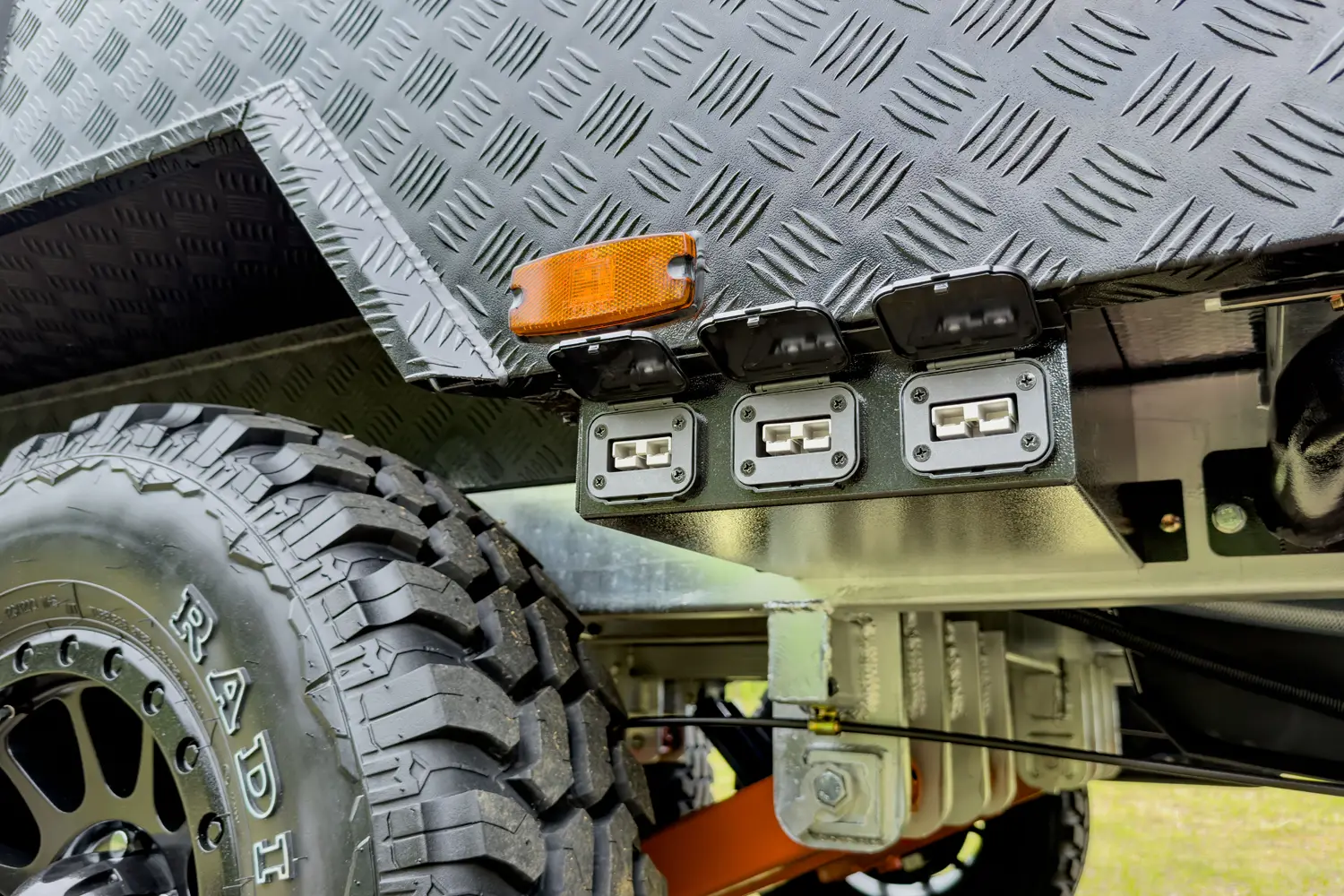

♦ 3 x portable solar power inlet ports (portable solar not supplied)**

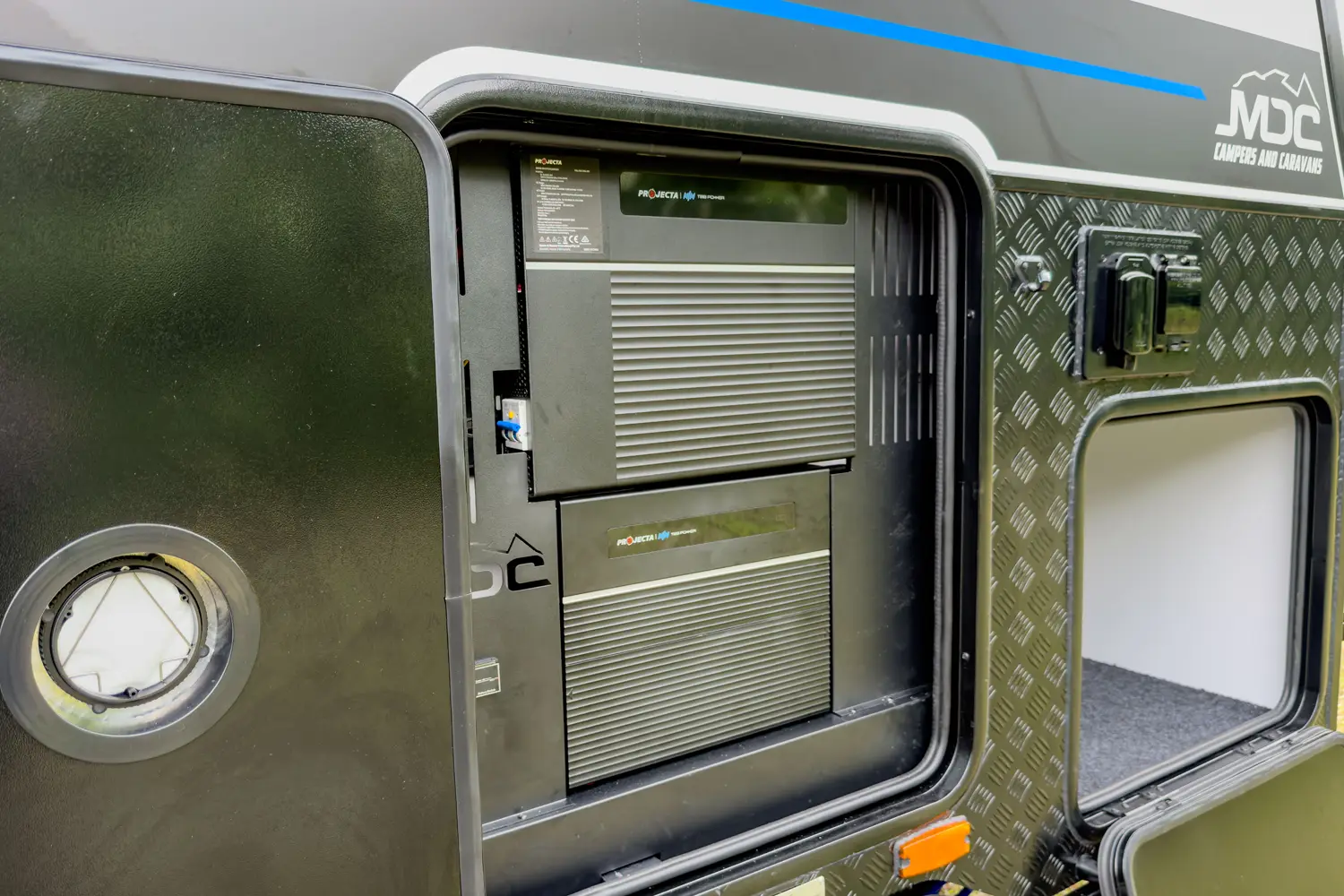

♦ Projecta Intelli-Grid 48V Power Management System
♦ Projecta 48V 210Ah (10.8kWh) chassis mounted lithium battery bank (2 x 48V 105Ah Batteries) – equivalent to 840Ah capacity at 12V
♦ Projecta INVCHR4-48V Inverter/charger
↳ 4000W 48V Inverter integrated into Projecta INVCHR4-48V
↳ 70A AC charger integrated into Projecta INVCHR4-48V – equivalent to 280A at 12V
↳ 30A DC-DC charger integrated into Projecta INVCHR4-48V
↳ 30A MPPT solar controller integrated into Projecta INVCHR4-48V – equivalent to 120A at 12V
♦ Projecta IGCMD18 18 channel 12V master output module

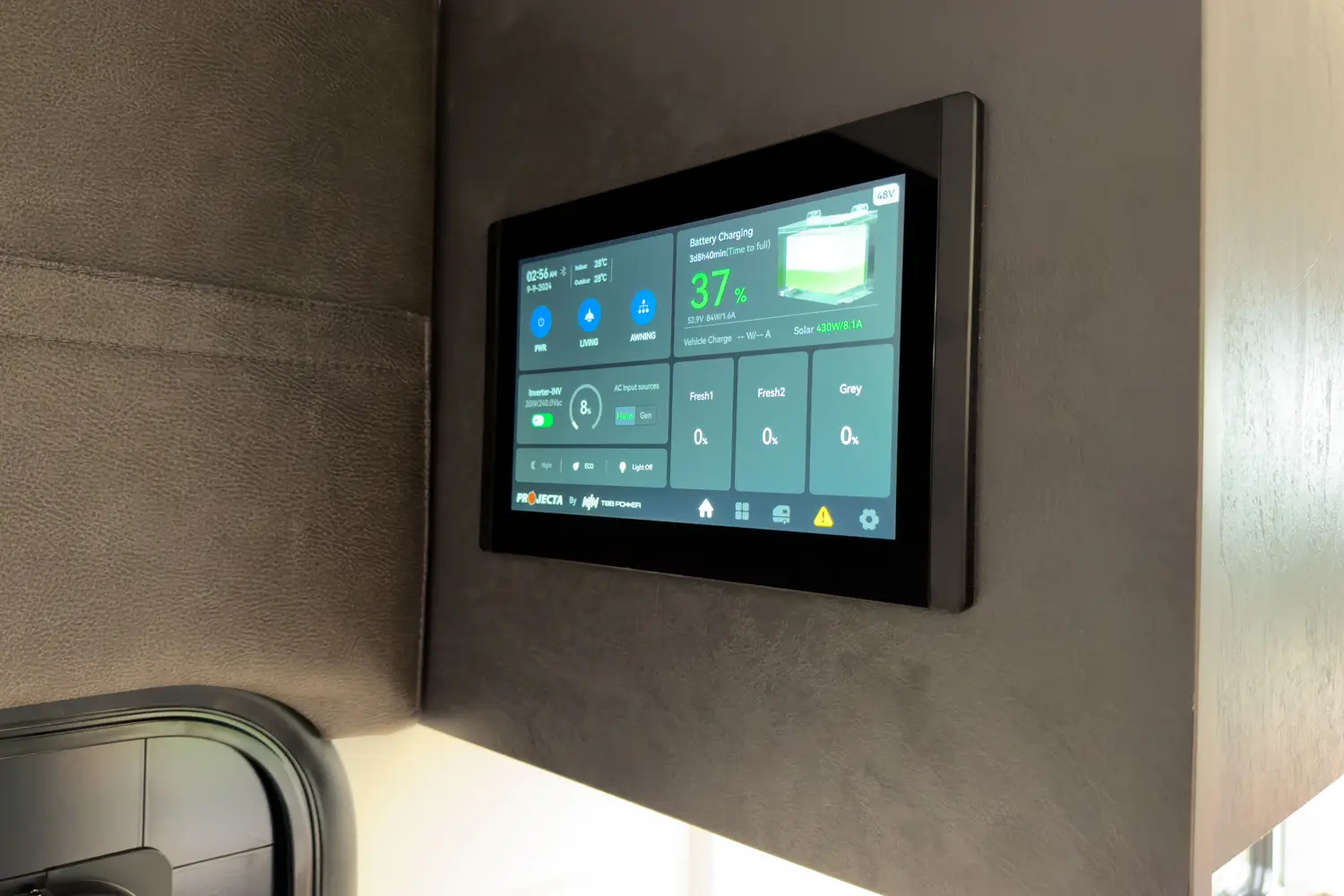

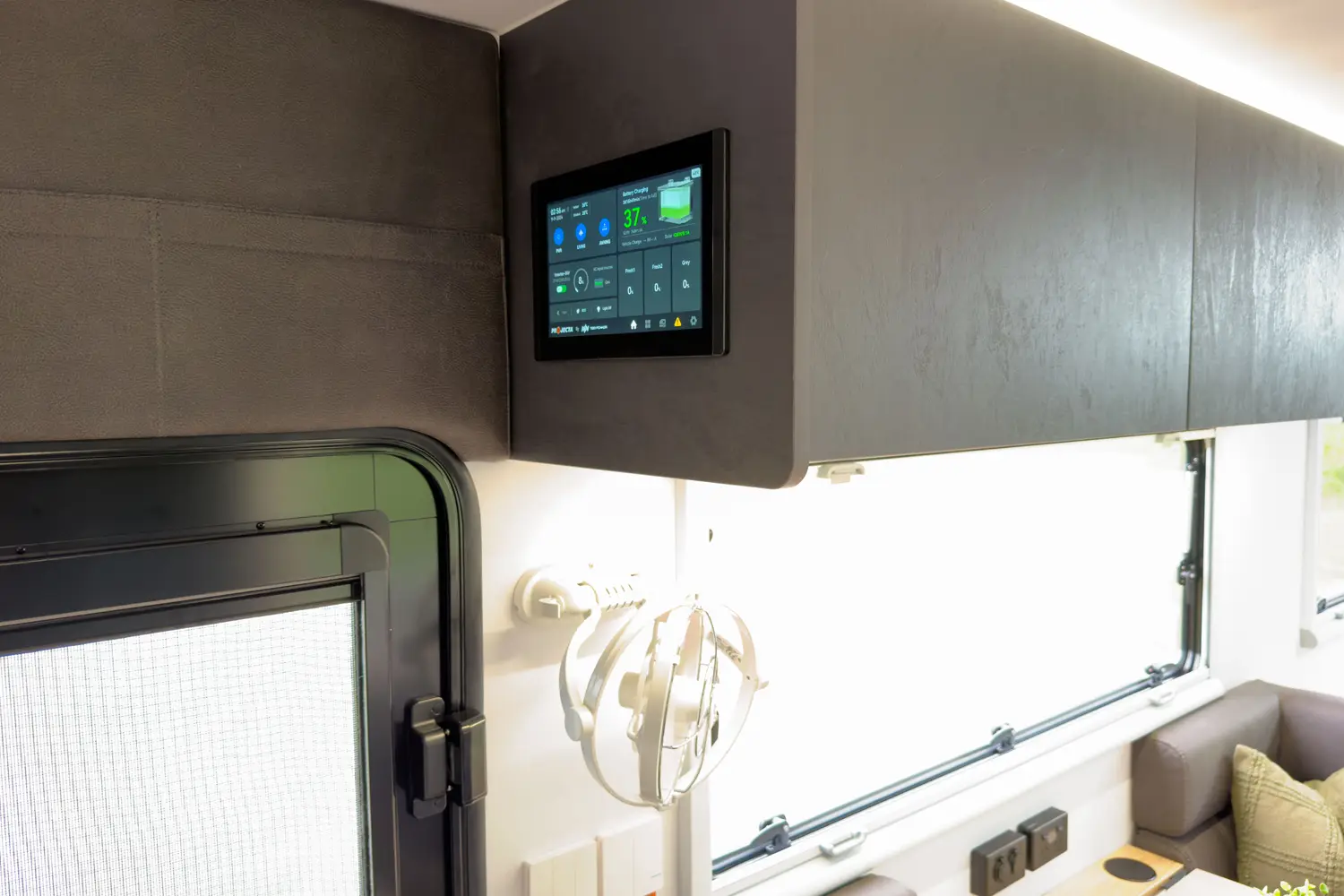

♦ Projecta 10″ colour touch screen with smart device connectivity
♦ Projecta levelling sensor
♦ Projecta tyre pressure monitoring system
Please Note: **Combined rooftop and expandable solar inputs can deliver up to 30A charging at 48V (120A equivalent at 12V)
INTERNAL POWER OUTLETS
♦ 12V accessory sockets
♦ USB charging ports
♦ 240V GPOs
♦ F-type TV outlet
♦ Wireless charging pads
EXTERNAL POWER OUTLETS
♦ 12V accessory socket
♦ USB charging ports
♦ 240 GPOs
♦ F-type TV outlet
♦ F-type TV inlet
♦ Anderson plug
MAJOR FEATURES
♦ 48V 210Ah Projecta Lithium Battery Power (840Ah at 12V)
♦ 1400W of rooftop solar
♦ 4000W Projecta Inverter Charger
♦ 48V Dometic Air-conditioning
♦ NCE Convection microwave with airfryer function
♦ 221L Internal Fridge
♦ Separate Shower & Toilet Ensuite
♦ Off-Grid Air Conditioner
