XT16 EAST WEST MK4
16ft Couples single axle caravan
From $99,990.00^
$370 per week*
$370 per week*
Available for immediate delivery
| QLD | Pre-Order Now^ |
| NSW | Pre-Order Now^ |
| VIC | Pre-Order Now^ |
| SA | Pre-Order Now^ |
| WA | Pre-Order Now^ |
Travel well beyond the powered sites
The XT16 East West MK4 Off-Road Caravan is a 16ft couples single axle caravan built for travellers who want a full-featured touring layout with strong off-grid capability. With a queen size east/west bed, café dinette, separate internal ensuite, 221L compressor fridge, 875W rooftop solar, 48V Projecta lithium power and a 4000W inverter, it is designed for comfortable travel well beyond powered sites.
TOP FEATURES
Special Deals
Offers are valid only for specific models while stock lasts. The prices shown below apply exclusively to the listed showrooms.
48V Off-Grid Platform
Over $27,000 of Projecta 48V power technology, standard.
The XT MK4 range is built around a fully integrated Projecta Intelli-Grid 48V electrical platform, not an upgrade pack, not a single flagship feature, but the architecture every model in the range is designed around. With a 48V 210Ah lithium battery bank, 4000W inverter/charger, high-output solar charging and a 10-inch colour touchscreen, the XT MK4 range gives you the usable power to run the comforts that matter off-grid, including 48V air conditioning, induction cooking and built-in air frying.210Ah
48V battery bank (equivalent to 840Ah at 12V)
30A
MPPT solar controller (equivalent to 120A at 12V)
48V
Dometic FreshJet 7 Series / 2500W air conditioner
All-in-one
Inverter, AC charger, DC-DC charger and Solar Controller
♦ Run the 48V Dometic FreshJet air conditioner off-grid without compromise
♦ Up to 3 portable solar inlet ports for expandable charging capacity
♦ Integrated Projecta levelling sensor and tyre pressure monitoring
♦ Up to 3 portable solar inlet ports for expandable charging capacity
♦ Integrated Projecta levelling sensor and tyre pressure monitoring
♦ Power the induction cooktop and NCE air fry microwave simultaneously
♦ 18-channel 12V output module for all auxiliary loads
♦ Recharge from shore power at 70A (equiv. 280A at 12V) for fast turnaround
♦ 18-channel 12V output module for all auxiliary loads
♦ Recharge from shore power at 70A (equiv. 280A at 12V) for fast turnaround
DIMENSIONS & WEIGHT
TOWBALL WEIGHT
Approx. 240kg
ATM
3000kg
TARE WEIGHT
Approx. 2530kg
XT16 EAST WEST MK4 FEATURES

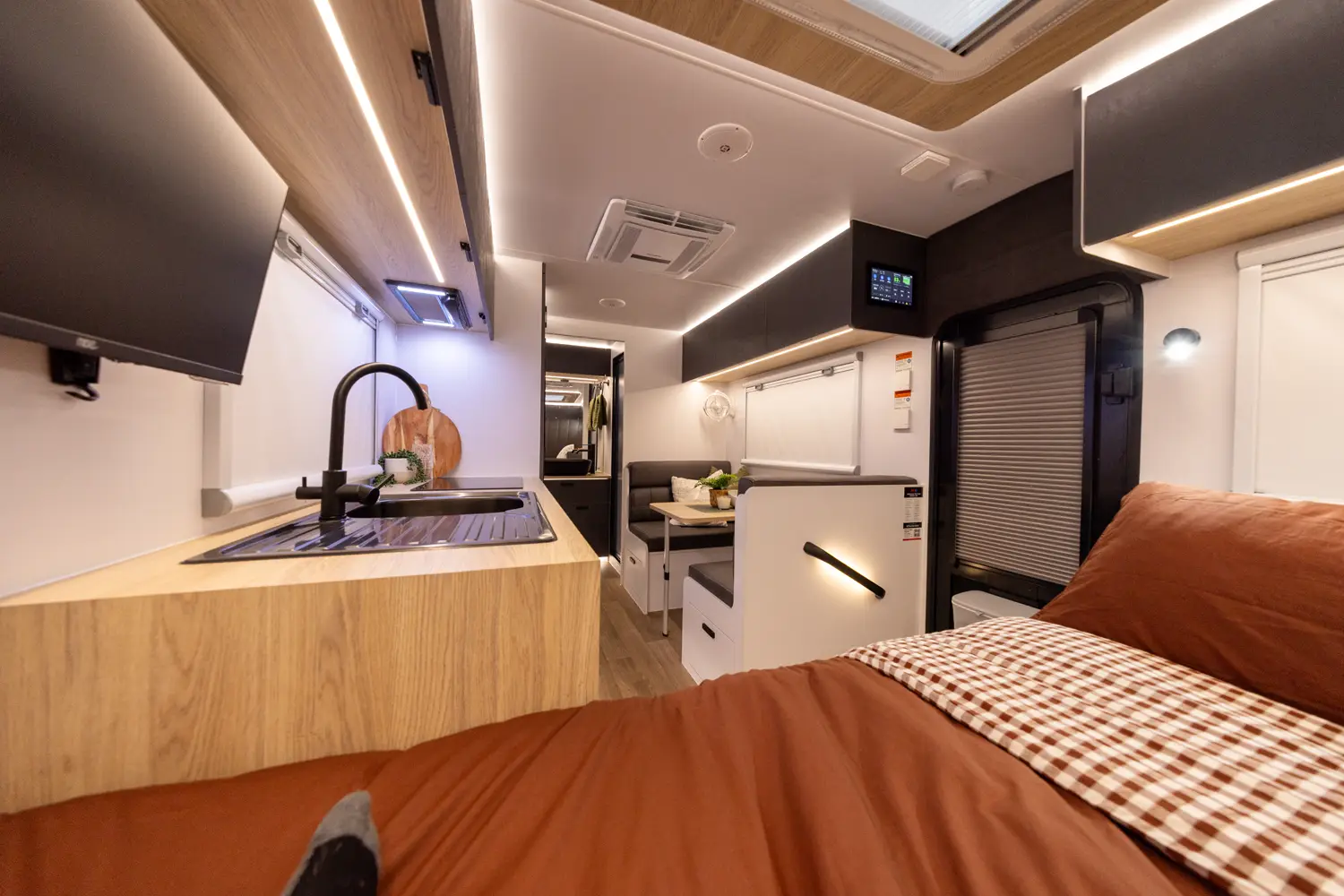

Inside, the XT16 East West MK4 combines a queen size east/west bed with a café dinette and internal ensuite featuring a Dometic cassette toilet and separate shower. The warm interior palette includes outback slate cabinetry, oak benchtops, stone wash grey premium leatherette upholstery and matte black fixtures, giving this off-road caravan a premium, practical and contemporary feel.

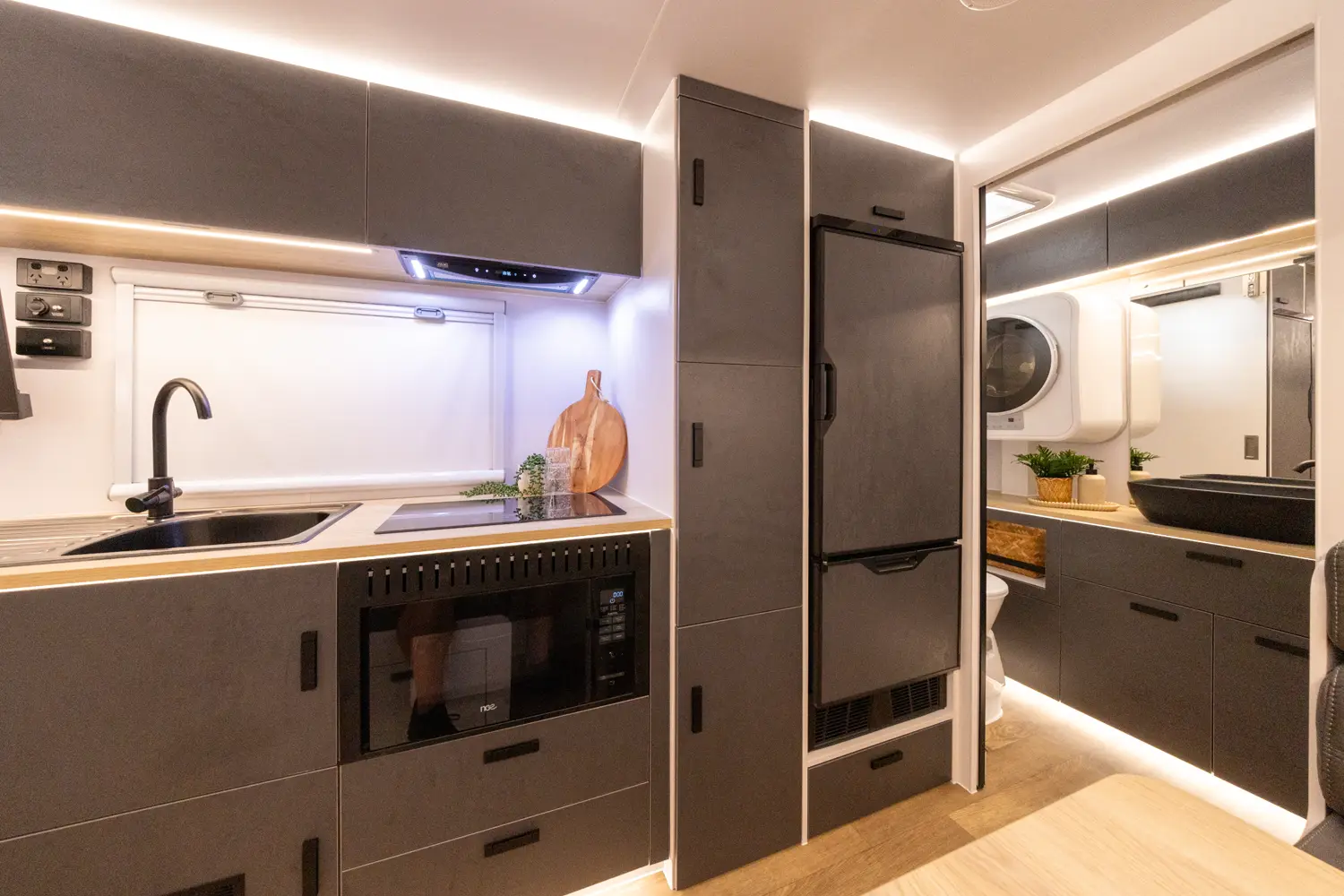

The kitchen and appliance package includes a Dometic 2-zone induction cooktop, NCE 29L 4-in-1 convection microwave with air fryer, grill, oven and microwave functions, and a large Thetford T2208 221L 12V compressor fridge. A Dometic FreshJet 7 Series 48V air conditioner, Eberspächer diesel air heater, NCE 3kg wall-mounted front loader washing machine, smart TV, stereo system, wireless charging pads and Caframo Sirocco II fans make the XT16 East West MK4 well suited to extended off-road touring.
Please Note: Pre-Production model shown. Images may differ from final product.
The XT16 East West MK4 is built on a hot dip galvanised chassis with a heavy-duty black protective finish drawbar and uses X-TRACK trailing arm suspension with dual TOUGH TRAX HD shock absorbers for off-road capability. It also features a Cruisemaster DO35 hitch, Tuson asymmetric electronic stability control, 12″ electric drum brakes, 16″ alloy wheels with 265/75 Goodride mud-terrain tyres, aluminium tank guards and ladder-mounted MAXTRAX MKII recovery tracks.
Exterior touring features include a slide-out external kitchen with Thetford 3-burner gas cooktop and sink with hot and cold water, hot/cold external shower, electric cassette awning, full annex, rear-mounted service ladder, fridge slide, 2 x 80L fresh water tanks and 1 x 80L grey water tank. The 875W rooftop solar system, Projecta Intelli-Grid 48V power management system, 48V 210Ah lithium battery bank, 4000W inverter, portable solar inputs, tyre pressure monitoring and levelling sensor deliver serious off-grid caravan capability.
Please Note: Pre-Production model shown. Images may differ from final product.
EXPLORE XT16 EAST WEST MK4
Please Note: Pre-Production model shown. Above 3D Floorplan is a representative pictorial of floorplan/layout only, please refer to actual product photos for design features and benefits.
SPECIFICATIONS
GENERAL
♦ Off-road Caravan
♦ 16ft Couples single axle caravan
♦ Sleeps 2+1
DIMENSIONS
♦ Open – TBC
♦ Closed (Travel Size) – 6986mm L x 2355mm W x 3071mm H
♦ Annex Size – TBC
WEIGHTS & RATINGS
♦ Tare weight Approx. 2530kg
♦ Towball weight Approx. 240kg
♦ ATM Rating 3000kg
♦ Payload Approx. 470kg
CHASSIS
♦ 12″ Electric drum brakes
♦ Cruisemaster DO35 hitch coupling
♦ Hot dip galvanised chassis with heavy-duty black protective finish drawbar
♦ CASP 1500kg high-lift scissor jack
♦ ARK XO750 jockey wheel
♦ X-TRACK trailing arm suspension with dual TOUGH TRAX HD shock absorbers
♦ Aluminium water tank guards with heavy-duty black protective finish
♦ 16″ Alloy wheels with 265/75 Goodride M/T tyres
BODY CONSTRUCTION
♦ Black aluminium checker plate panel external trimming
♦ One-piece thermoplastic composite honeycomb floor
♦ Welded aluminium wall and roof frames
♦ One-piece fibreglass external roof skin
♦ Aluminium composite exterior wall panels and fibreglass composite internal wall panels
EXTERIOR
♦ 48V Dometic Freshjet 7 Series 2500W air conditioner
♦ Electric cassette awning
♦ Full annex, enclosed roof, walls, floor and draft skirt

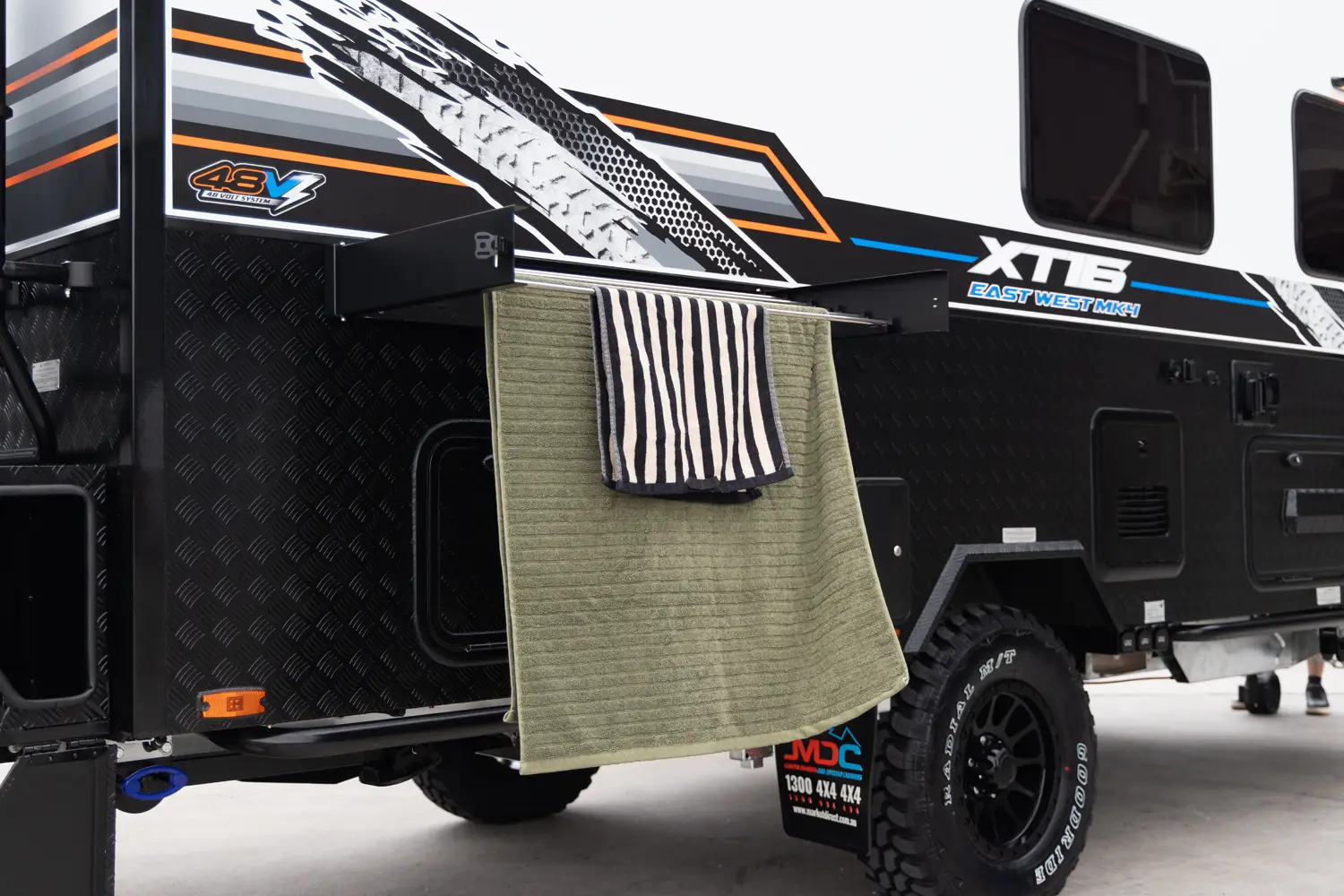

♦ Collapsible wall-mounted clothes line
♦ Tuson asymmetric electronic stability control
♦ Double manual pull out entry step
♦ Hot/cold external shower
♦ 1040mm L x 530mm W x 480mm H (fridge slide)
♦ 2 x 9kg gas cylinder holders
♦ Truma AquaGo Comfort Plus instant water heater (gas-operated)
♦ 1 x 20L jerry can holder
♦ Rear-mounted service ladder
♦ 12V LED lighting with yellow bug light function (external)
♦ 12V LED underbody strip lighting (underbody)
♦ Wireless rear view camera with monitor
♦ Picnic table
♦ 2 x ladder-mounted MAXTRAX MKII recovery tracks

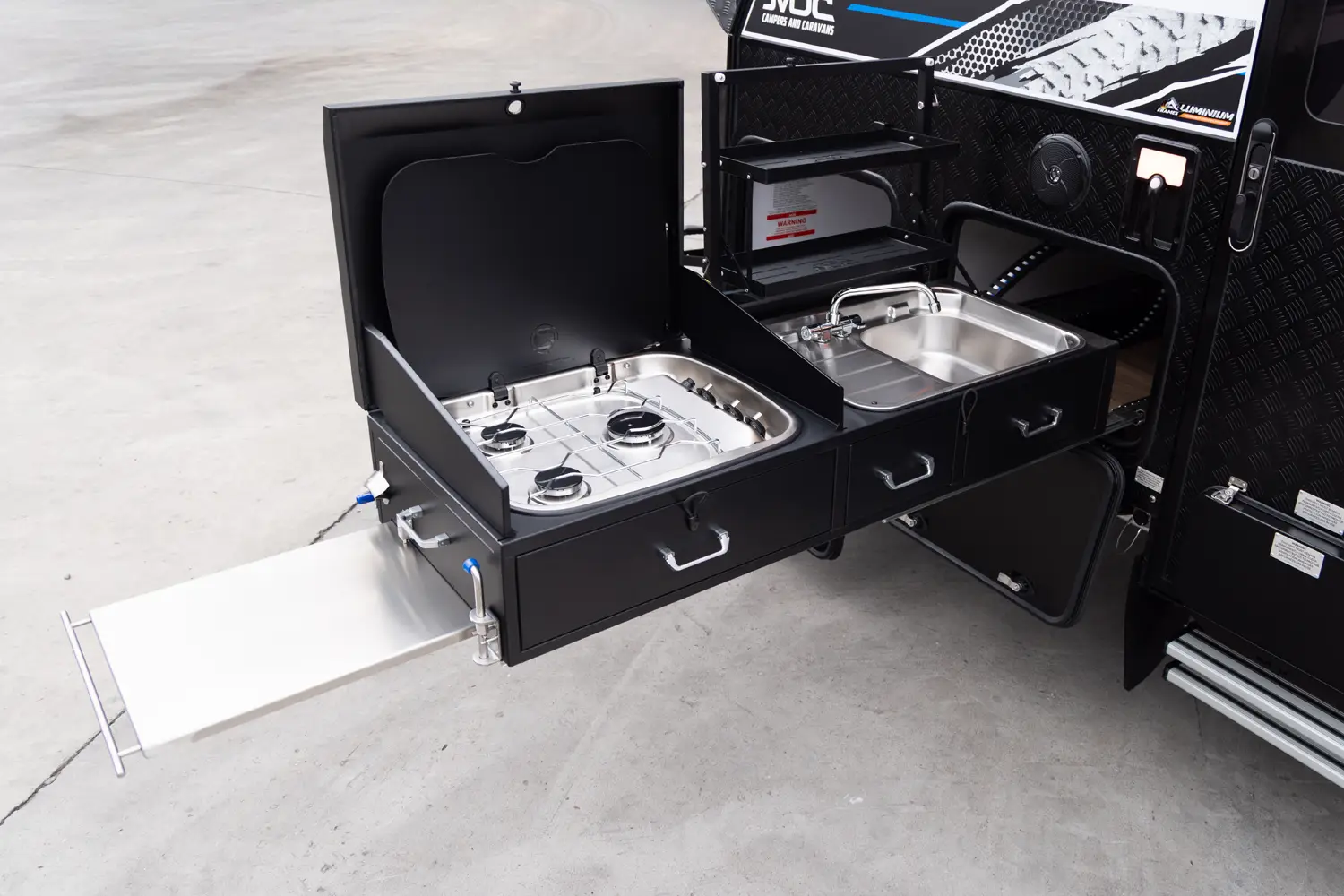

♦ Slide-out external kitchen with Thetford 3-burner gas cooktop and sink with hot and cold water supply.
♦ Multi-compartment front storage box & rear storage bar
♦ Through-wall cable port
♦ 12-pin flat trailer plug
♦ 2 x 80L fresh water & 1 x 80L grey water
INTERIOR

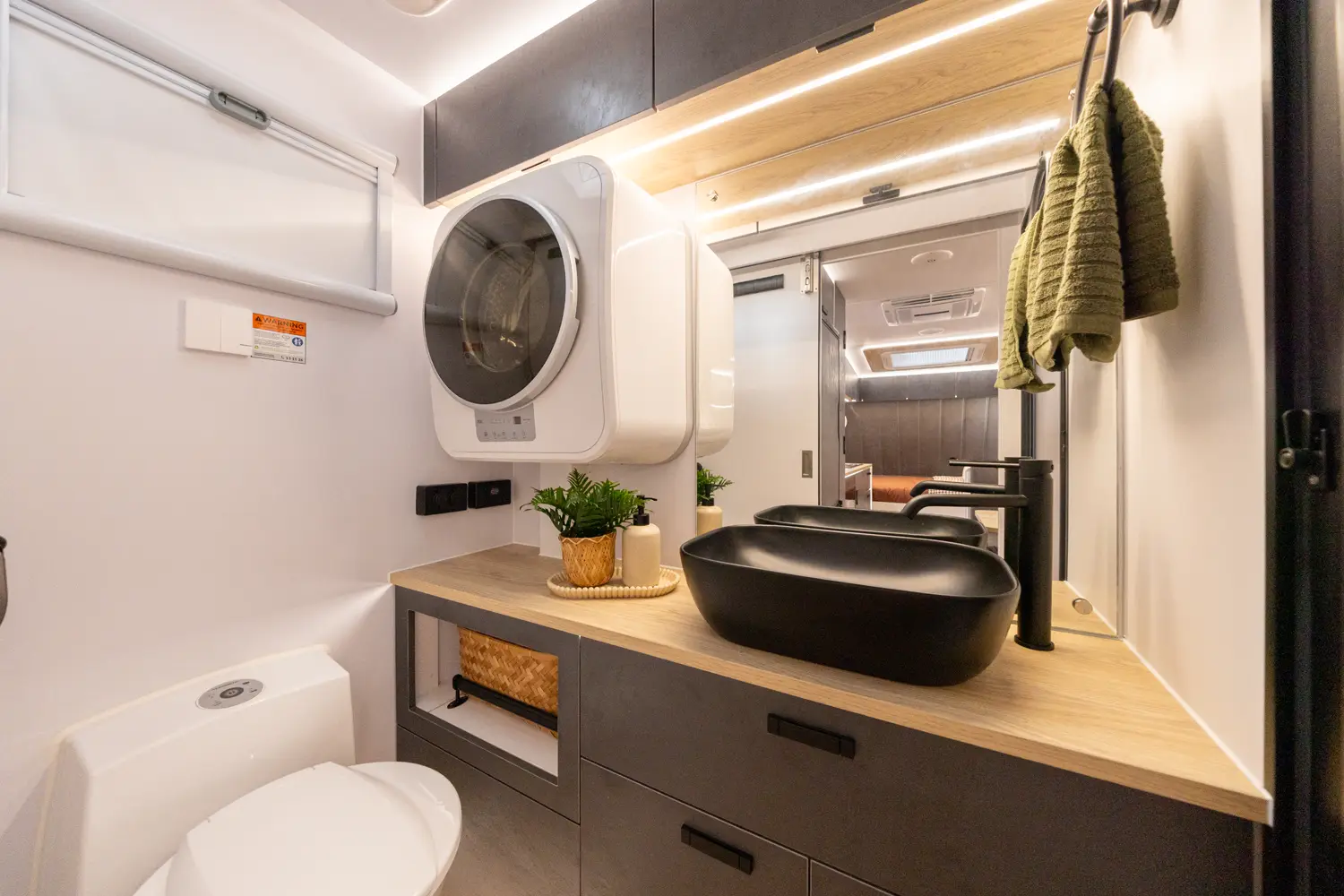

♦ Internal ensuite with Dometic cassette toilet & separate shower

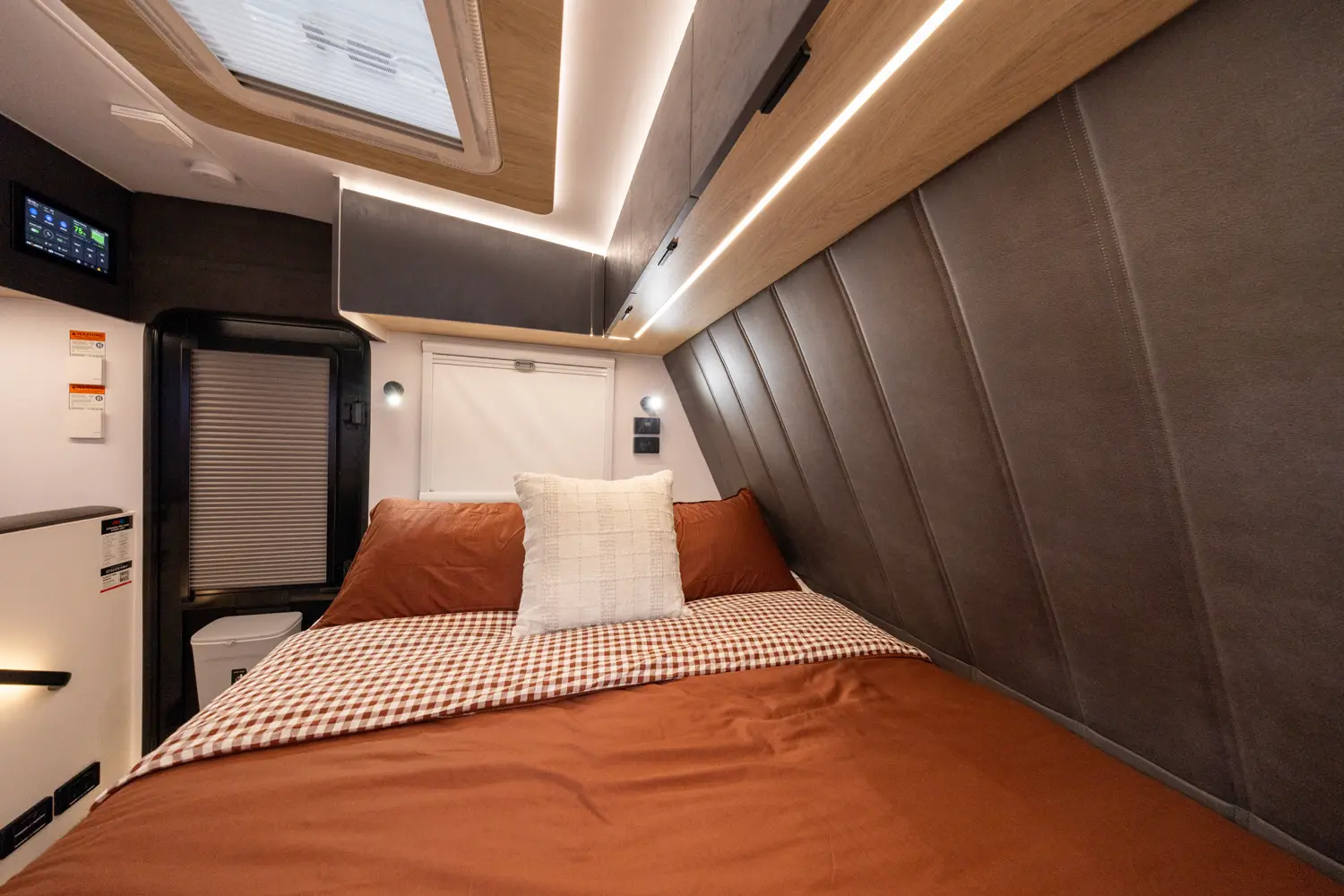

♦ 1 x Queen size east/west bed
♦ 2100mm L x 1580mm W x 220mm H (mattress size)
♦ Eberspächer D2L Airtronic AS3 2.2kW diesel air heater
♦ Outback slate cabinetry, oak benchtops, stone wash grey premium leatherette upholstery, and matte black fixtures
♦ Dometic 2-zone induction cooktop
♦ NCE 29L 4 in 1 convection microwave (air fryer, grill, oven & microwave)
♦ 12V LED mood lighting
♦ Thetford T2208 221L 12V compressor fridge
♦ Café dinette
♦ Stereo head unit with internal & external speakers
♦ NCE 24″ Google ready smart TV
♦ NCE 3kg wall-mounted front loader washing machine
♦ Inline water filter
♦ Caframo Sirocco II
POWER MANAGEMENT

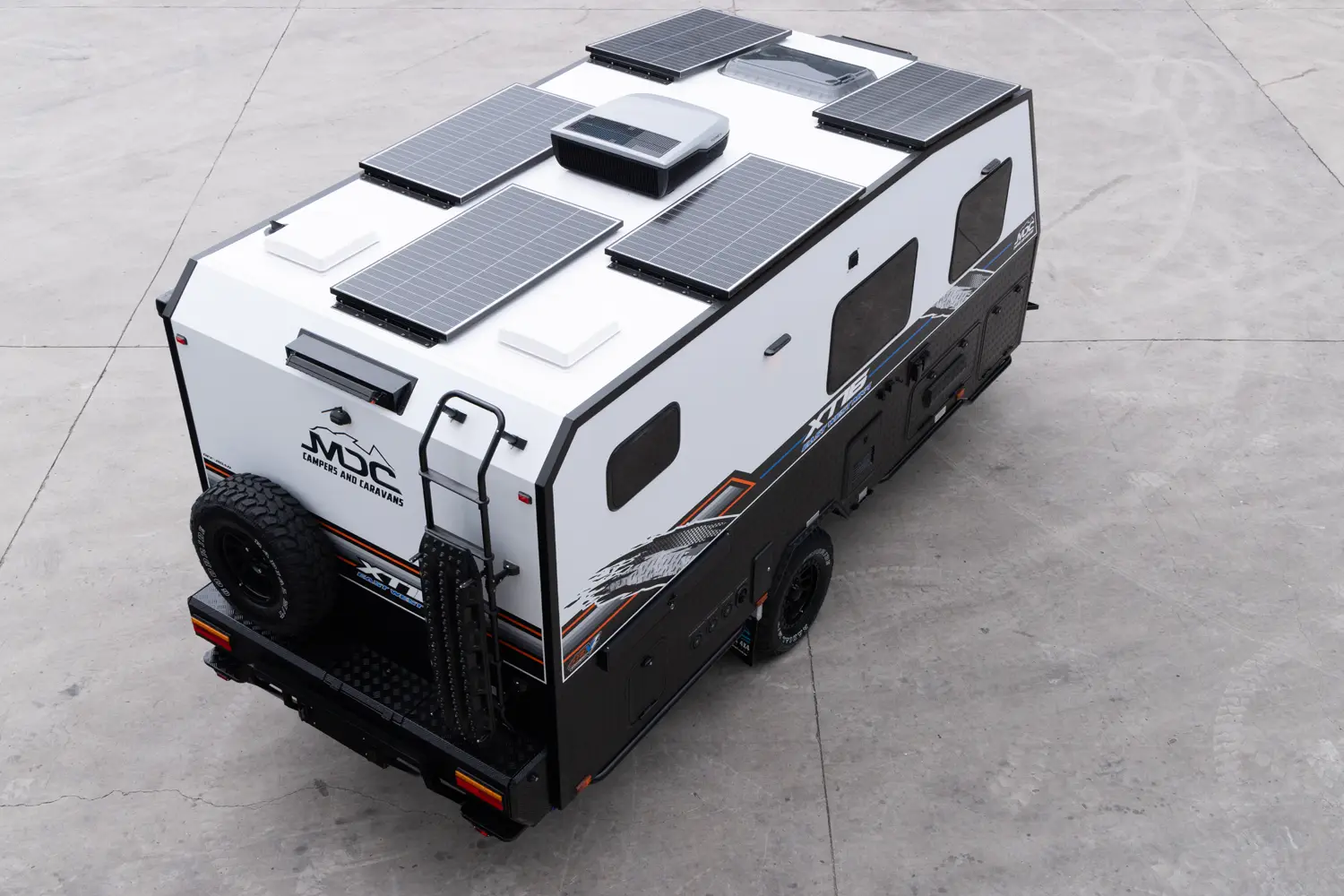

♦ 875W of rooftop solar
♦ 3 x portable solar power inlet ports (portable solar not supplied)**
♦ Projecta Intelli-Grid 48V Power Management System
♦ Projecta 48V 210Ah (10.8kWh) chassis mounted lithium battery bank (2 x 48V 105Ah Batteries) – equivalent to 840Ah capacity at 12V
♦ Projecta INVCHR4-48V Inverter/charger
↳ 4000W 48V Inverter integrated into Projecta INVCHR4-48V
↳ 70A AC charger integrated into Projecta INVCHR4-48V – equivalent to 280A at 12V
↳ 30A DC-DC charger integrated into Projecta INVCHR4-48V
↳ 30A MPPT solar controller integrated into Projecta INVCHR4-48V – equivalent to 120A at 12V
♦ Projecta IGCMD18 18 channel 12V master output module
♦ Projecta 10″ colour touch screen with smart device connectivity
♦ Projecta levelling sensor
♦ Projecta tyre pressure monitoring system
Please Note: **Combined rooftop and expandable solar inputs can deliver up to 30A charging at 48V (120A equivalent at 12V)
INTERNAL POWER OUTLETS
♦ 12V accessory sockets
♦ USB charging ports
♦ 240V GPOs
♦ F-type TV outlet
♦ Wireless charging pads
EXTERNAL POWER OUTLETS
♦ 12V accessory socket
♦ USB charging ports
♦ 240 GPOs
♦ F-type TV outlet
♦ F-type TV inlet
♦ Anderson plug
MAJOR FEATURES
♦ 48V 210Ah Projecta Lithium Battery Power (840Ah at 12V)
♦ 875W of Rooftop Solar
♦ 4000W Projecta Inverter Charger
♦ 48V Dometic Air-conditioning
♦ NCE Convection microwave with airfryer function
♦ 221L Internal Fridge
♦ Separate Shower & Toilet Ensuite
♦ Front Loader Washing Machine
